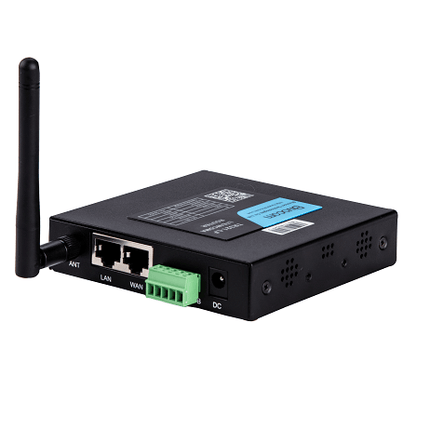

TR321-MQG Quectel BG96 Industrial LTE CAT-M1 & NB-IoT Cellular Router 2-LAN
TR321-MQG: Industrial LTE CAT M1/NB1 Modem: FDD-LTE B3/B8/B20/B28, GPRS/EDGE 900/1800Mhz
Quectel BG96, Certified by Telstra, AU RCM Certification
TR321 Series Router is a compact industrial LTE CAT-M1 & NB-IoT cellular router, which adopts high-powered industrial 32-bits CPU, with multi-layer software detection and hardware protection mechanism to ensure reliability and stability of the device.
Key Features
- OPEN WRT, support multiple developments
- 1x WAN (can be configured as LAN), 1x LAN(10/100M), 1x RS232, 1x RS485 (option)
- LTE-M/PPPoE/DHCP and Static address connection mode, switchover between wired and wireless connectivity
- Support MQTT protocol
- APN/VPDN to ensure the security of data transmission.
- Multiple VPN protocols, IPSec, L2TP, PPTP, GRE (option) and OPEN VPN.
- DHCP server, DHCP binding MAC address, Dynamic DNS (DDNS), Firewall, NAT, DMZ host, QoS, Traffic Analysis, Real-time display of data transfer rate, etc.
- TCP/IP, UDP, FTP, HTTP network protocols.
- SPI Firewall, DoS attack, VPN traversal, Access Control, Port Mapping, DMZ Mapping, Access Control List (ACL), IP-MAC binding and Clone function, etc.
- Heartbeat link detection, offline automatic reconnection.
- Hardware and software auto inspection technology, enable operation fault auto repairing.
- Status query of system, network connection, routing.
- Telnet, web, ssh configurations.
- Web upgrade, local system log, remote log, serial port output log.
- WIFI (option) or GPS (option)
- Remote configuration and management
TR321 Series Router enables users to quickly access the Internet, to ensure secure and reliable data transmission. It’s ideal for IOT (Internet of Things) and M2M (Machine to Machine) applications, and has been widely used in many applications, such as Intelligent Transportation, Smart Grid, Oil and Gas, ATM, Vending Machine, Agricultural Irrigation, Environmental Protection, Industrial Automation, Energy Saving, Smart Home, etc.
Specifications
System
CPU: Industrial 32-bit
FLASH: 16MB(Extendable to 32MB)
SDRAM: 128MB(Extendable to 256MB)
Cellular Interface
LTE CAT M1/NB1, EDGE/GPRS
Note: CAT NB1, EDGE/GPRS are unavailable on TR321-MS7A

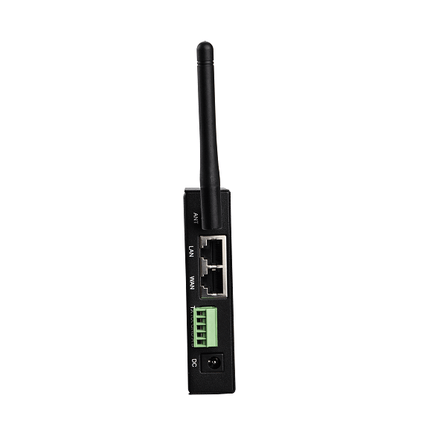

Cellular Antenna Interface
Number of Ports: 1
Note: Standard SMA female antenna interface, characteristic impedance 50Ω
SIM Interface
Number of Ports: 1
Note: Standard drawer type card holder, support 1.8V/3V
SIM/UIM card, built-in 15KV ESD protection

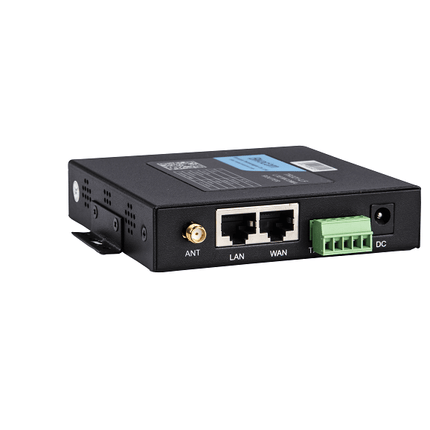

Ethernet Port(RJ45)
Number of Ports: 2, 1x WAN(Can be configured as LAN), 1x LAN
Note: 10/100M, Auto MDI/MDIX, 1.5KV magnetic isolation protection
WIFI (Option)
Standard: IEEE802.11b/g/n for wireless LAN
Transmission Rates:
IEEE802.11b/g: Up to 54Mbps, IEEE802.11n: Up to 300Mbps
Security: WEP, WPA/WPA2
TX Transmit Power: 18dBm(11g), 21dBm(11b)
RX Sensitivity: <-72dBm@54Mpbs
GPS (Option)
Support from the built-in cellular module
Note: GPS may be unavailable for some cellular modules.
Serial Interface (5-PIN Industrial terminal block)
Number of interfaces: 2, 1x RS232, 1x RS485(Option)
Note: Built-in 15KV ESD protection, and TTL GPIOs is customizable
Serial Communication Parameters
Baudrate: 300~230400bits/s
Data Bit: 5, 6, 7, 8 bits
Stop Bit: 1, 1.5, 2 bits
Check: No, Even-parity, Odd Parity, SPACE and MARK
Power Requirements
Standard Power: DC 12V/1.5A
Power Range: DC 5~35V
Note: Built-in power inverting protection and over voltage protection
Power Consumption
Communication: 123~250mA@12VDC
Standby: 110~200mA@12VDC
Scheduled Shutdown: 2mA@12VDC

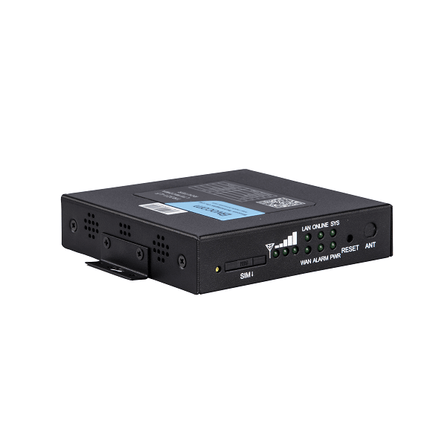

LED Indicators
Power, Signal Strength, System, Online, Alarm, WAN and LAN
Reliability
EMC up to level 3
Use NTP technology, build-in RTC
SIM/UIM card port built-in 15KV ESD protection
Warranty
Warranty Period: 12 months
Environmental Limits
Operating Temperature: -35~+75ºC(-31~+167 ºF)
Storage Temperature: -40~+80ºC(-40~+176 ºF)
Ambient Relative Humidity: 93%±3%, non-condensing
Physical Characteristics
Protection Class: IP30, Housing and system are isolated safely, ideal for industrial automation application
Housing: Iron
Weight: 320g(0.71lbs), router host only, accessories not included.

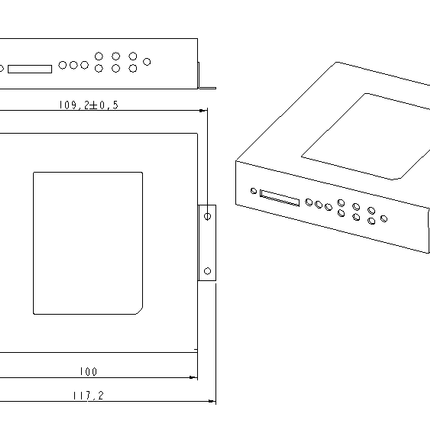

Dimension: 100x100x23mm(3.94x3.94x0.91 inches), Antenna and other accessories not included
Product Characteristics
| Environmental Limits |
| Operating Temperature: -35~+75ºC(-31~+167 ºF) |
Storage Temperature: -40~+80ºC(-40~+176 ºF) |
| Ambient Relative Humidity: 93%±3%, non-condensing |
| Power Consumption |
| Standby |
110~200mA@12VDC |
| Communication |
123~250mA@12VDC |
| Scheduled Shutdown |
2mA@12VDC |
| Anti-interference |
| Type |
Level |
Voltage/Current Waveform |
Value |
| Power Frequency Magnetic Field |
3 |
Continuous sine wave |
30A/m |
| Damped Oscillatory Magnetic Field |
3 |
Continuous sine wave |
30A/m |
| Pulse Magnetic Field |
3 |
Pulse |
100A/m |
| Radiated Electromagnetic Field |
3 |
80MHz~1000MHz Continuous-wave |
10V/m |
| Level 3, suitable for equipment installed in a typical industrial environment: Plant, Power Plant, or residence area. |
| Protection Class |
| IP30, Housing, and system are isolated safely, ideal for industrial automation application |
| Reliability |
| MTBF(mean time between failures): >10,000hrs |
| Ultra-low consumption design includes sleep mode, scheduled online and offline mode |
| EMC up to level 3 |
| Use NTP technology, built-in RTC |
| SIM/UIM card port built-in 15KV ESD protection |
| Physical Characteristics |
| Housing |
Metal, IP30 |
| Dimensions |
100x100x23mm(3.94x3.94x0.91 inches), Antenna and other accessories not included |
| Weight |
320g(0.71lbs) |
| Package Checklist |
1. TR321 Router Host
2. Power Adapter(DC 12V/1.5A)
3. Cellular Antenna (Male SMA)
4. Console Cable(RS232)
5. Ethernet Cable(1 meter)
6. 5-Pin Terminal Block |
Downloads
Note: This Router has all certifications including RCM AU certification.
