TW810 Industrial LTE CAT-M1 & NB-IoT Modem with Terminal Block Supports RS-232/485/422 I/O
TW810 Industrial LTE CAT-M1 & NB-IoT Modem with Terminal Block Supports RS-232/485/422 I/O

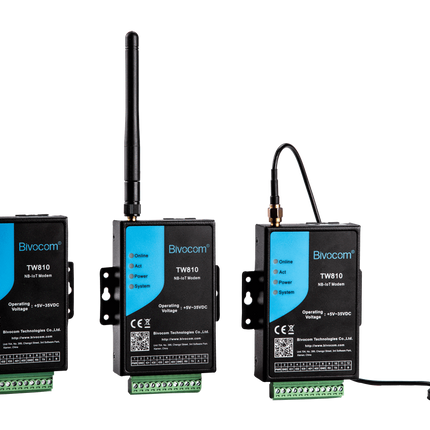

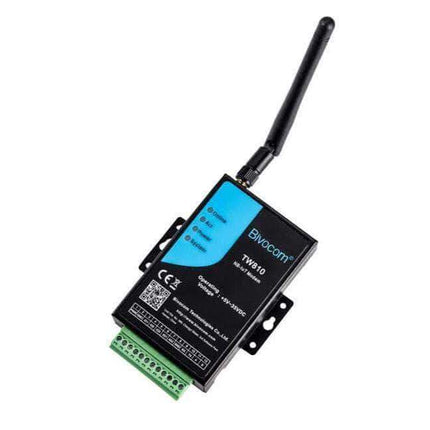

TW810-MS7E: Industrial LTE CAT M1/NB1 Modem BG96 (Quad-Band FDD-LTE B3/B8/B20/B28 GPRS/EDGE 900/1800 MHz)
Bivocom TW810 series LTE-M/NB-IoT modems are designed for applications require better signal and coverage, lower consumption serial modem for sending their field serial data to remote server via LTE CAT M1 and NB-IoT network, applications like smart building, HVAC, underground pipeline monitor, or moving assets management.
Besides, it’s also a low cost and bandwidth solution to replace legacy GPRS/GSM serial modem, as we all know, GPRS/GSM network has been shut down in some regions by carriers, and more and more carriers have scheduled to shut down their GPRS/GSM network in the coming years, so Bivocom TW810 is a great fit and solution for those applications mentioned above.
TW810 has built in independent MCU chipset, and multi-layer software detection and hardware protection mechanism to ensure reliability and stability, and RS232, RS485 easy to connect to serial port sensors, PLC, IPC and controller.

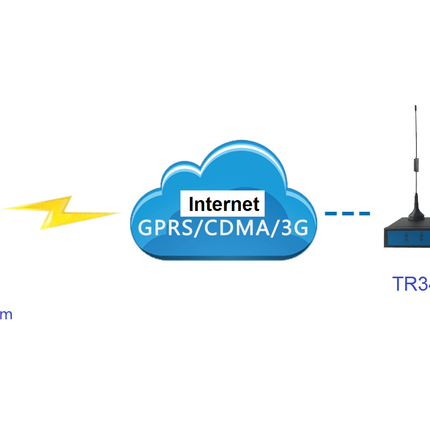

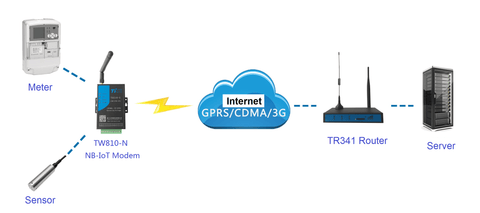

It supports transparent data transmission, helping you seamlessly transfer the data under MQTT*, Modbus RTU, TCP/UDP protocol to your remote server.
It supports up to 5 sync data center, which enables you to receive the same data in different location and backup your data.
A powerful and ease to use config tool, allows you to choose different type of cellular network and protocols for your specific needs.
- Industrial MCU built in, rugged and reliable
- LTE Cat M1, NB-IoT and EDGE/GPRS compatible
- 1-RS232, 1-RS485
- Modbus RTU, TCP/UDP, AT Command
- Up to 5 sync data center
- Wide operation voltage: 5-35VDC
- Working temperature: -35C~+75C
Key Features
1. Support NB-IoT and LTE CAT-M1 cellular network
2. 1x RS232, 1x RS485 (Or RS422), 5x I/O.
3. Transparent data transfer, with built-in standard UDP/IP stack.
4. Multi data centers (up to 5), able to access center with the domain name and IP address.
5. Support heartbeat link detection, keep device always online.
6. Hardware and software auto inspection technology, enable operation fault auto repairing.
7. OPEN WRT, support multiple developments
Interface

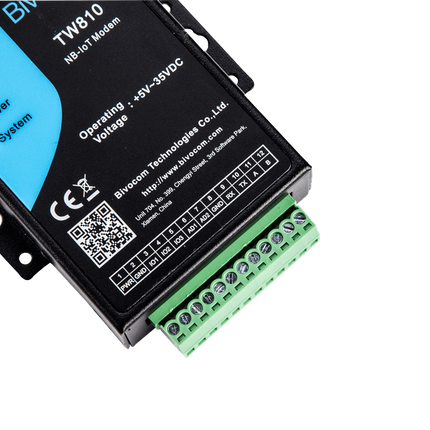

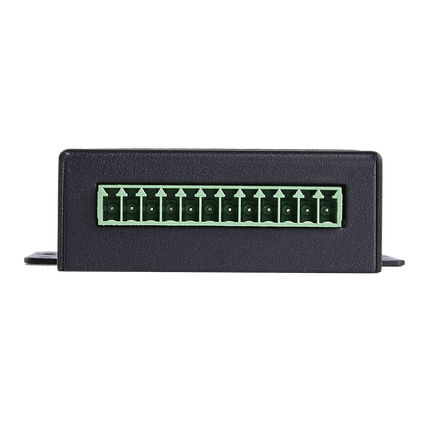

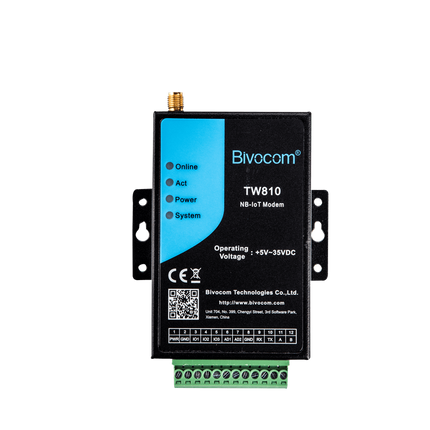

| Power Requirements | |||
| Standard Power | DC 12V/0.5A | ||
| Power Range | DC 5~35V | ||
| Communication Current | <85mA(12V) | ||
| Built-in power inverting protection and over voltage protection | |||
| Serial Port | |||
| RS232, or RS485 (or RS422) Industrial terminal block interface, ideal for industrial applications. |
|||
| Built in 15KV ESD protection, TTL GPIOs is customizable, 5-channel I/O | |||
| Serial Port Rate | 300~230400bits/s | ||
| Data Bit | 5, 6, 7, 8 bits | ||
| Stop Bit | 1, 1.5, 2 bits | ||
| Check | No check, Even-parity Check, Odd Parity Check, SPACE and MARK check | ||
| Analog Quantity | |||
| 2x analog quantity input(10-bit AD, support 4-20mA current signal input, optional 0-5V voltage signal input) | |||
| I/O | |||
| 3x GPIOs, able to configured as input and output, communication level: 3.3V | |||
| Others | |||
| Indicators | System, Power, Online, Act | ||
| Antenna | Standard SMA female antenna interface, characteristic impedance 50Ω | ||

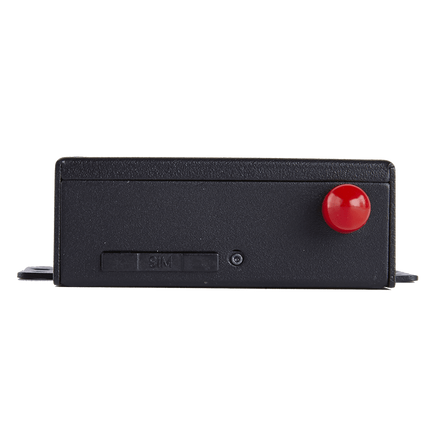

| SIM/UIM Card Holder |
Standard drawer type card holder, support 1.8V/3V SIM/UIM card, built-in 15KV ESD protection | ||
Product Characteristics

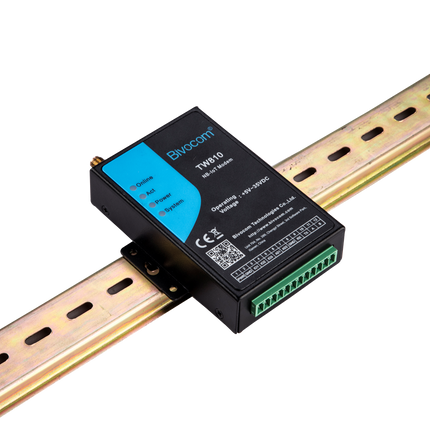

| Environmental Limits | ||||
| Operating Temperature: -35~+75ºC(-31~+167 ºF) | Storage Temperature: -40~+80ºC(-40~+176 ºF) | |||
| Ambient Relative Humidity: 95%, non-condensing | ||||
| Power Consumption | ||||
| Communication | <1W | |||
| Note: 12V(<85mA), 5V(<155mA) | ||||
| Standby | <0.4W | |||
| Note: 12V(<30mA), 5V(<55mA) | ||||
| Sleep | <0.1W | |||
| Note: 12V(<0.8mA), 5V(<18mA) | ||||
| Anti-interference | ||||
| Type | Level | Voltage/Current Waveform | Value | |
| Power Frequency Magnetic Field | 3 | Continuous sine wave | 30A/m | |
| Damped Oscillatory Magnetic Field | 3 | Continuous sine wave | 30A/m | |
| Pulse Magnetic Field | 3 | Pulse | 100A/m | |
| Radiated Electromagnetic Field | 3 | 80MHz~1000MHz Continuous-wave | 10V/m | |
| Level 3, suitable for equipment installed in a typical industrial environment: Plant, Power Plant, or residential area. | ||||
| Protection Class | ||||
| IP30, Housing, and system are isolated safely, ideal for industrial automation application | ||||
| Reliability | ||||
| MTBF(mean time between failures): >10,000hrs | ||||
| Ultra-low consumption design includes sleep mode, scheduled online and offline mode | ||||
| EMC up to level 3 | ||||
| Adopt NTP technology, build-in RTC | ||||
| SIM/UIM card port built-in 15KV ESD protection | ||||
| Weights and Dimension | ||||

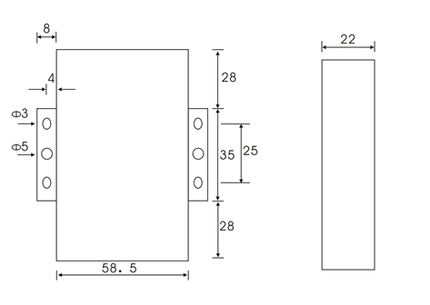

| Dimension: 91x58.5x22 mm(3.58x2.30x0.87 inches ), Antenna and other accessories not included | ||||
| Weight: 208g(0.46lbs) | ||||
