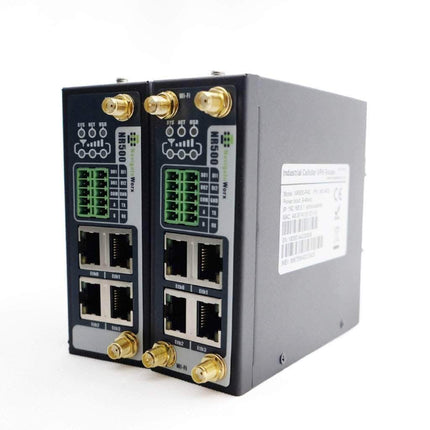

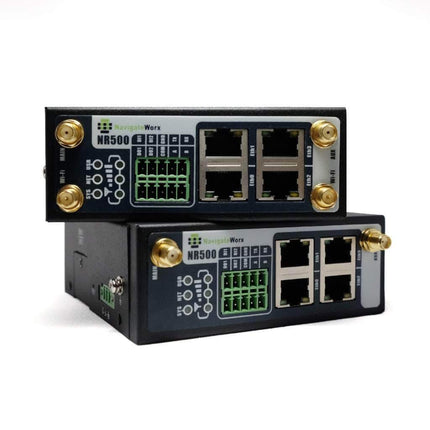

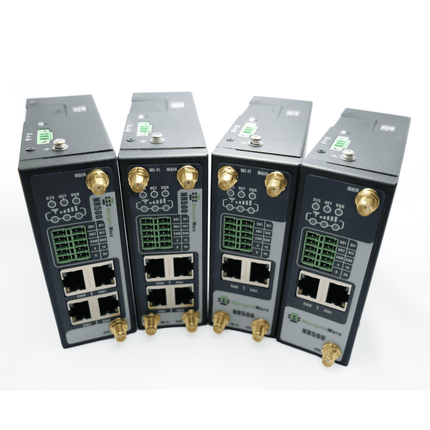

Industrial Premium 4G LTE Cellular NR500 PRO VPN Router Dual SIMs

Description

Industrial Premium 4G LTE Cellular NR500 PRO VPN Router with 4 LAN Ports

Frequency Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Suit AU Freq. Bands inc. Telstra)

Navigateworx NR500 series industrial premium cellular VPN router offer single, flexible platform to address a variety of wireless communications needs with over-the-air configuration and system monitoring for optimal connectivity. This router enables wireless data connectivity over public and private LTE cellular networks at 4G speeds.
NR500 series router has dual SIM backup, 2 or 4 LAN ports, 1 port could be changed to Ethernet WAN connection (for fixed internet failover to cellular). An optional 802.11 b/g/n Wi-Fi interface access point and client operations support connectivity to IP applications in a variety of different connection scenarios. RS232 and RS485 interfaces are provided to support Serial to IP communication. NR500 series router also supports 2 x digital input and 2 x Digital output for alarm applications.
NR500 series router supports 9 to 48 VDC wide range power inputs, designed with reverse-voltage protection mechanism for greater reliability. It is an advanced choice for universal wireless M2M applications with reliable features for data transmission.

Specifications

  • 2 Ethernet Ports (Standard version), 4 Ethernet Ports (Pro version)
  • 1 RS232 & 1 RS485
  • 2 Digital Inputs & 2 Digital Outputs
  • Dual SIMs Backup, Wi-Fi is optional
  • Wide Operating Temperature: -40 to 75
  • Wide Range Power Input: 9 to 48V
  • Hardware RTC & Watchdog
  • Link Failover from LTE / Ethernet / Wi-Fi
  • Wi-Fi AP & Client Mode (Wi-Fi Optional)
  • 6 LED Indicators
  • Timer Reboot / SMS Reboot
  • LTE Connected on Demand
  • Multiple VPNs Supported
  • Local Web & SNMP & CLI Configuration
  • 3rd party Central Management Platform
  • VPNs: OpenVPN, GRE, IPSec, L2TP, PPTP, DMVPN
  • Config: Local Web & SNMP & CLI Configuration
  • High EMC Level

Applications

  1. Video Surveillance
  2. Retail Markets, including Vending Machines, Kiosk etc
  3. Remote Monitoring - SCADA
  4. Intelligent Transportation System
  5. Industrial Automation
  6. Automatic Metering Reading

Cellular Interface

  • Standards: FDD-LTE/TDD-LTE, WCDMA/UMTS/HSPA/HSPA+/EDGE/GPRS,
  • 2x SMA female antenna connector
  • 2 x SIM (3.0V & 1.8v)

Wi-Fi Interface (Optional)

  • Standards: 802.11b/g/n, 300Mbps
  • 2 x RP-SMA male antenna connector
  • Support Wi-Fi AP and Client modes
  • Security: WEP, WPA and WPA2 encryption
  • Encryption: AES, TKIP, WEP64

Ethernet Interface

  • Standard: IEEE 802.3, IEEE 802.3u
  • Number of Ports:
  • NR500-Standard: 2 x 10/100 Mbps, RJ45 connector
  • NR500-Pro: 4 x 10/100 Mbps, RJ45 connector
  • 1x WAN interface (configurable on Web GUI)
  • 1.5KV magnetic isolation protection

Serial Interface

  • 1xRS232 (3 PIN): TX, RX, GND
  • 1 xRS485 (2 PIN): Data+ (A), Data-(B)
  • Baud rate: 300 bps to 115200 bps
  • Connector: terminal block
  • 15KV ESD protection

DI/DO Interface

  • Type: 2 x Dl + 2 x DO
  • Connector terminal block
  • Isolation: 3KVDC or 2KVrms
  • Absolute maximum VDC: 36VDC
  • Absolute maximum ADC: 100mA
  • Other Interfaces
  • x RST button
  • LED instruction: 1 x SYS, 1 x NET, 1 x USR, 3 x RSSI

Software

  • Network protocols: DHCP, ICMP, PPPoE, HTTP, HTTPS, DNS, VRRP, NTP.
  • VPN: IPSec, PPTP/L2TP client, GRE, OpenVPN, DMVPN
  • Policy: RIPv2/OSPF/BGP dynamic route (optional)
  • Firewall & Filter: Port forwarding, DMZ, anti-DoS, ACL
  • Serial port: TCP server and client, UDP
  • Management: Web, SNMP, 3rd party platform

Power Supply and Consumption

  • Connector 3-pin 3.5 mm female socket with lock
  • Input voltage range:
  • Power consumption:
  • Idle: 100 mA@12V
  • Data link: 400 mA (peak) @12V
  • 9-48VDC

Physical Specification

  • Ingress Protection: iP30
  • Housing & Weight: Metal, 300g
  • Dimension: 104mm x 104mm x 38mm (excluding antenna)

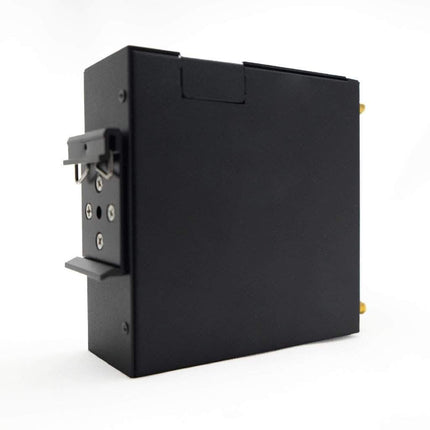

  • Installations: Din-rail mounting

Environmental

  • Operation temperature:-40 +75 C
  • Store temperature: -40-+85 C
  • Operation humidity: 5% to 95% non-condensing
Optional Accessories
Power Supply Power Supply Adapter, AU Plug, Input 100 to 240VAC, Output 12VDC 1.5A
Wi-Fi Antenna Wi-Fi Megnet Antenna, 3 Meters Long, 2.4G - 2.483G, 7dbi, Φ 29×220mm, AC
Cellular Antenna 4G / 3G / 2G Megnet Antenna, 3 Meters Long, 698-960 / 1710-2700 MHz, 3bi, Φ 29×112mm, AC
Din Railway Kit Din Railway Kit, 35 mm, Alumunium with Black Spray Surface, 50 * 40 * 8.5 mm, 3 * M3.5 Screw Holes

Documentations

NR500 PRO User Manual

NR500 PRO Datasheet

NR500 series CE RED Certification

 Case Study



    Read more
