Industrial PT-1000 Temperature Probe - Atlas Scientific

Description

Industrial PT-1000 Temperature Probe - Atlas Scientific

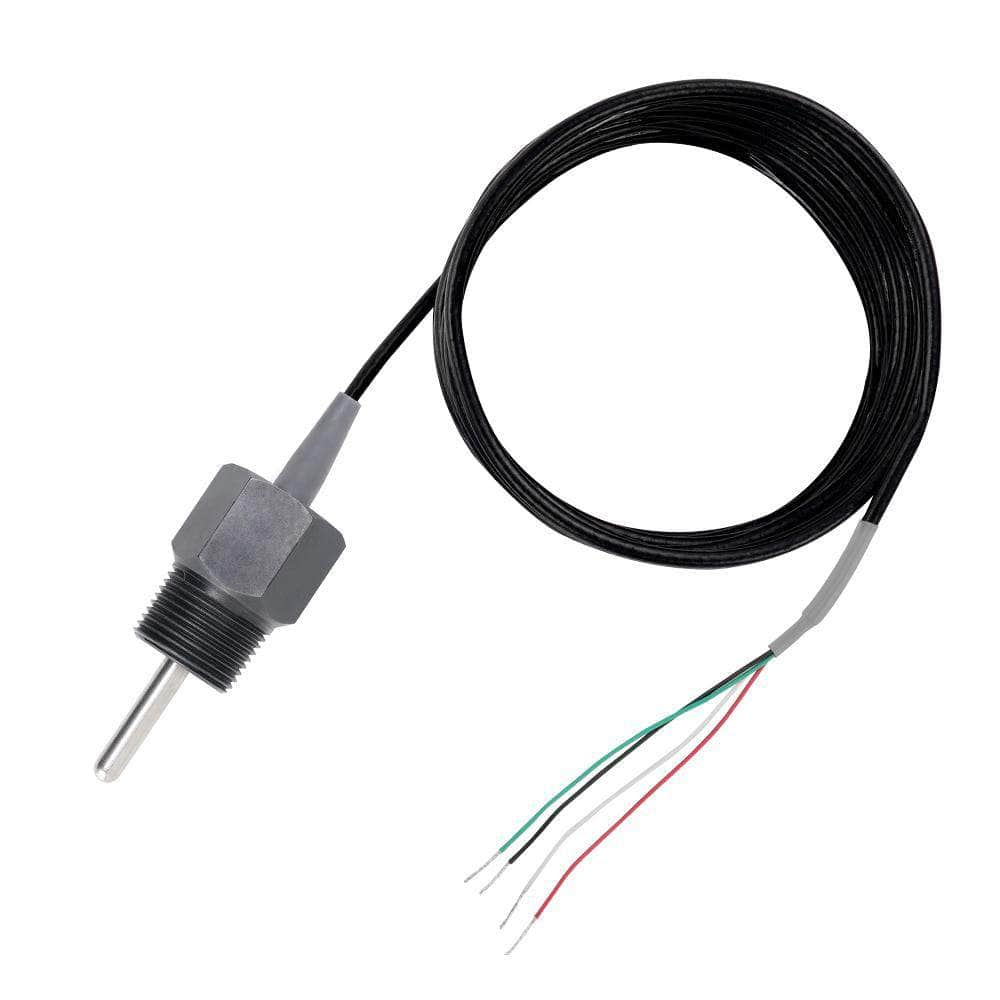

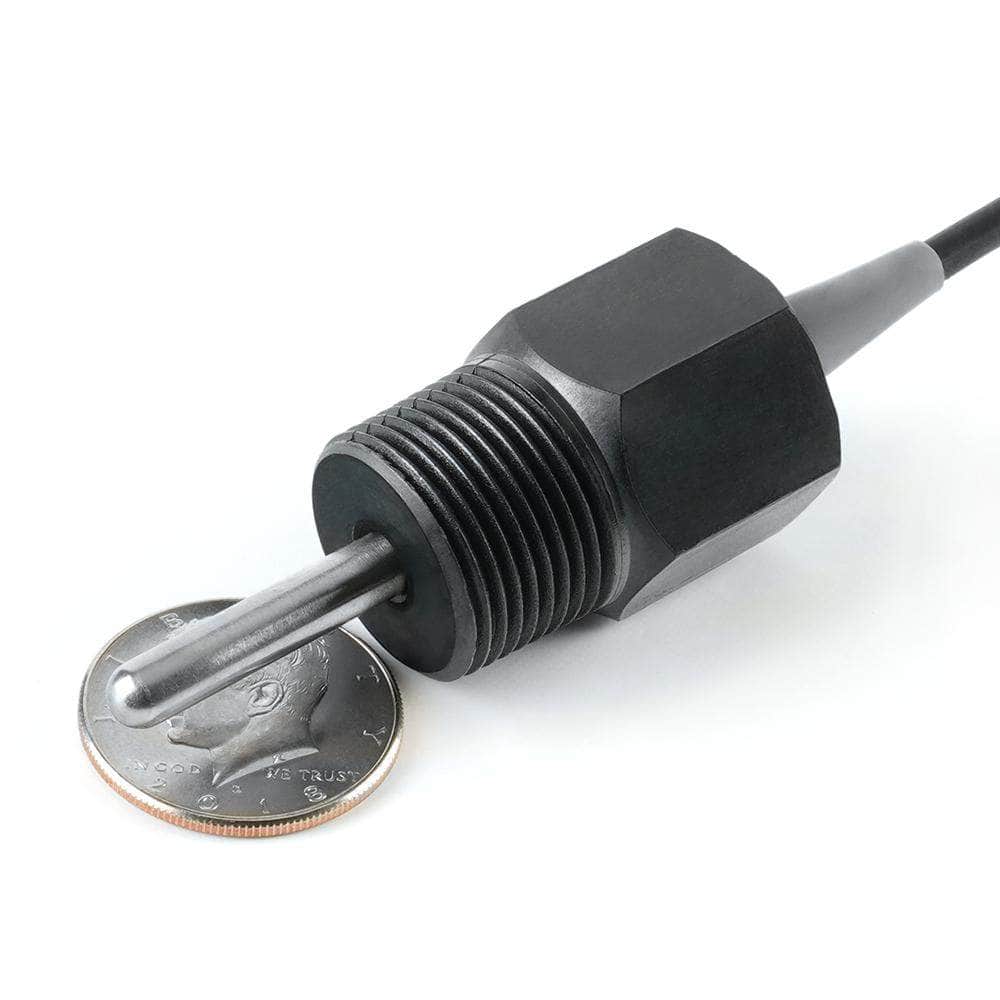

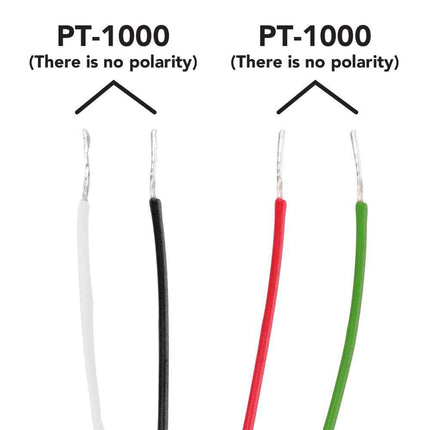

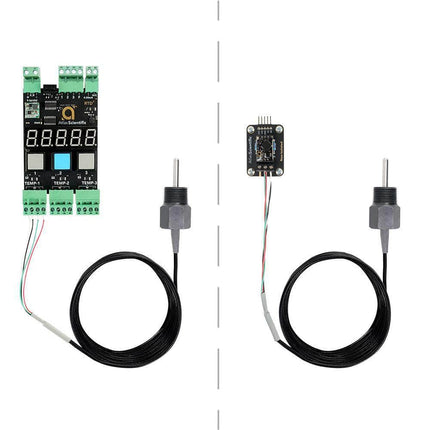

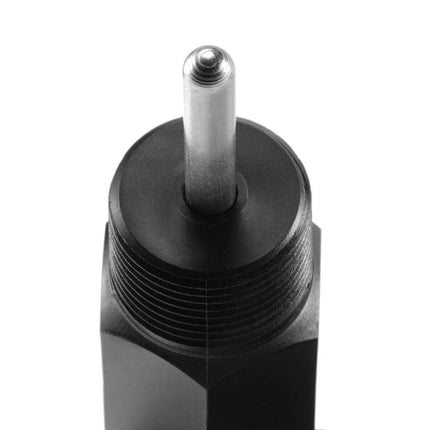

The Industrial PT-1000 Temperature Probe is a high-accuracy 4-wire temperature sensor. Internally it uses a class A PT-1000 platinum resistance temperature detector. The sensor is food safe and can be screwed into a pipe or a tank using its 3/4″ NPT threading. The sensor can be used in 2, 3, or 4 wire temperature sensor applications.

Reads Temperature
Probe type Class A platinum, RTD
Range -55 ̊C to 220 ̊C
Accuracy +/- (0.15 + (0.002*t))
Reaction Time 90% in 13s

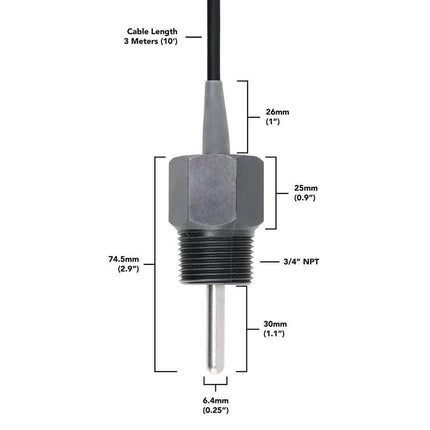

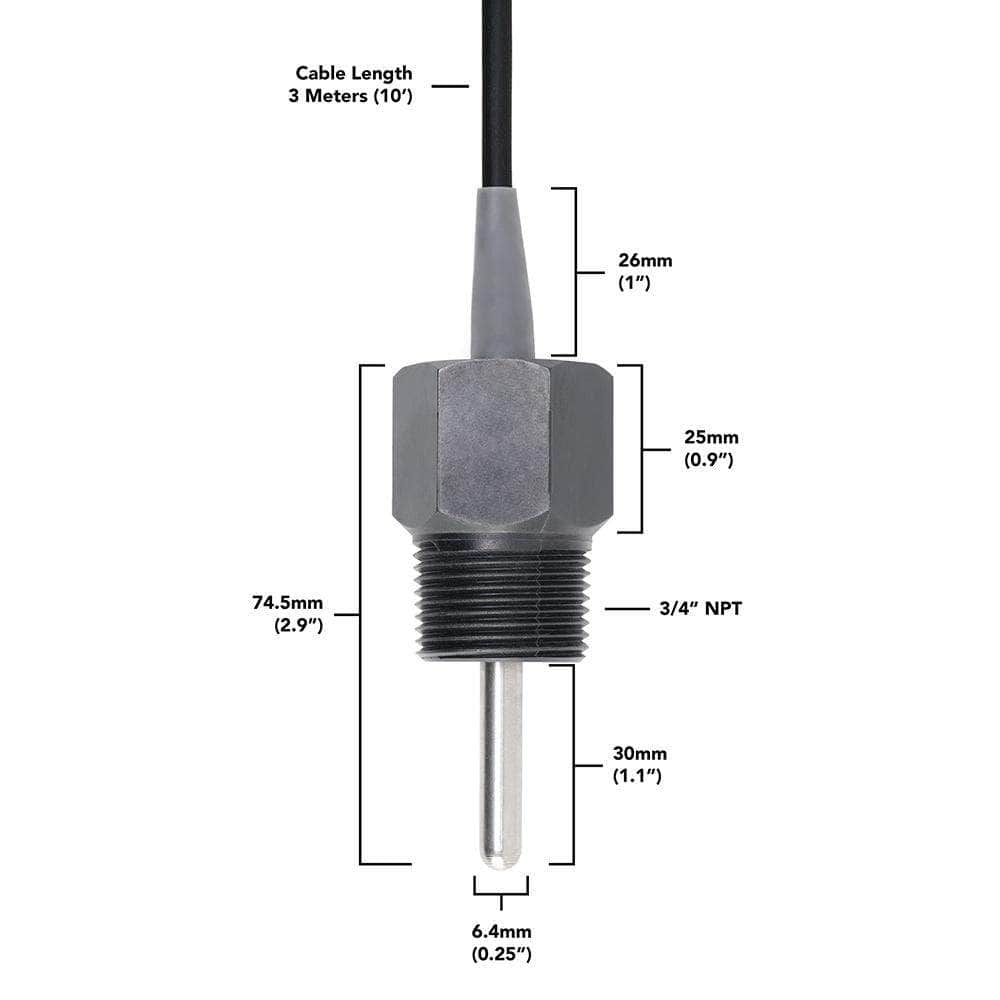

Cable length 3 Meters (10′)
Connector Tinned leads
Output Resistance (Analog)
Life expectancy 15 years

Downloads:



Industrial PT-1000 Temperature Probe - Atlas Scientific

Product form

SKU: ENV-50-TMP

$239.00 $219.00 Excl. GST

$219.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    Industrial PT-1000 Temperature Probe - Atlas Scientific

    The Industrial PT-1000 Temperature Probe is a high-accuracy 4-wire temperature sensor. Internally it uses a class A PT-1000 platinum resistance temperature detector. The sensor is food safe and can be screwed into a pipe or a tank using its 3/4″ NPT threading. The sensor can be used in 2, 3, or 4 wire temperature sensor applications.

    Reads Temperature
    Probe type Class A platinum, RTD
    Range -55 ̊C to 220 ̊C
    Accuracy +/- (0.15 + (0.002*t))
    Reaction Time 90% in 13s
    Cable length 3 Meters (10′)
    Connector Tinned leads
    Output Resistance (Analog)
    Life expectancy 15 years

    Downloads:
