Industrial 8-Ch PWM Input Module, Modbus RTU Protocol, Isolated RS485 Interface, Supports Frequency And Duty Cycle Acquisition, With Various Isolation And Protection Circuits
Features at a glance
The Modbus RTU PWM Input 8CH is an isolated RS485 to 8-Ch PWM input module, supporting PWM pulse frequency and duty cycle detection. Adopts Modbus RTU protocol with built-in protection circuits such as power isolation, magnetical isolation, resettable fuse, and TVS.
- The inputs use high-speed optocoupler isolation and support high-frequency detection
- Configurable device address (1~255), multi devices can be cascaded on RS485 bus
- Onboard voltage regulator, supports 7~36V wide range power supply
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference
- Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
- Onboard watchdog, for stable output without crashing
- Rail-mount case design, support stacking combination, easy to install and safer to use
- 3x LEDs for indicating the MCU status and signal transceiving status
Specifications
| Communication interface |
RS485 |
| Baud rate |
4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000 |
| Default communication format |
9600, N, 8, 1 |
| Modbus protocol |
Standard Modbus RTU protocol |
| Power supply |
DC 7~36V |
| Pulse Input Voltage |
3.3V ~ 30V |
| Frequency Detection Range |
400Hz ~ 50kHz |
| Frequency Resolution |
0.01Hz |
| Frequency Accuracy |
5‰ |
| Duty Cycle Detection Range |
0 ~ 100% |
| Duty Cycle Resolution |
0.01% |
| Duty Cycle Accuracy |
5‰ |
Primary function
Supports sending Modbus RTU protocol commands via RS485 to acquire PWM pulse signals
Industrial Grade Isolated Protection
Onboard power and signal dual isolation for RS485 communication, provides stable isolation voltage, features high reliability and strong anti-interference performance. Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, lightningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable current and voltage output, provides over-current and over-voltage proof, improves shock-proof performance, suitable for industrial environments with high requirements.
Interface introduction
Wide voltage power supply, isolated RS485 interface
Built-in fuse and anti-reverse protection, With Power and Signal Dual Isolation

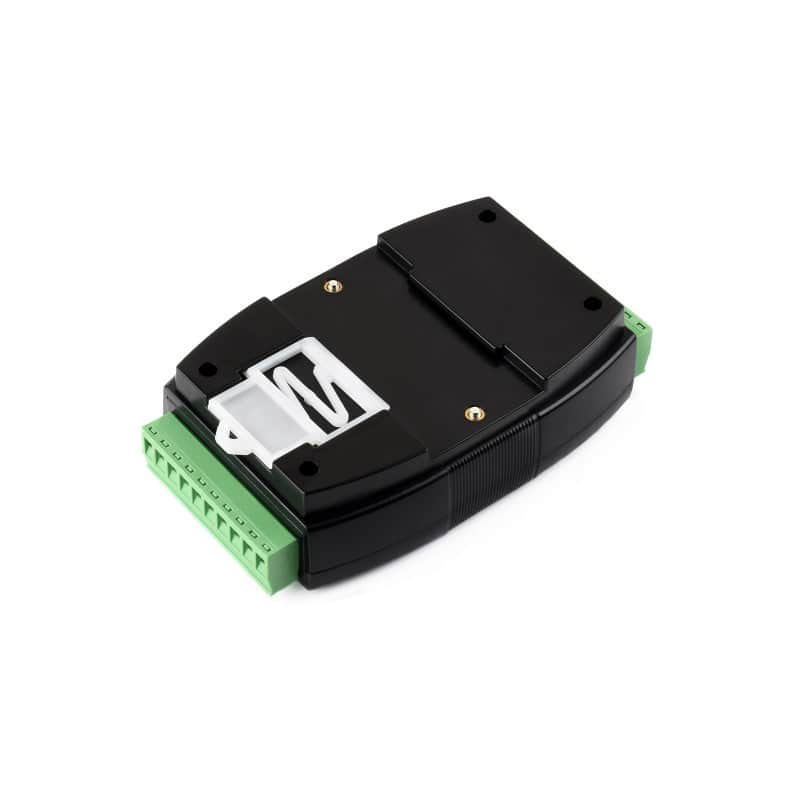

Rail-Mount Support
Supports 35mm standard guide rail, with rail-mount buckle, easy to install.
Supports stacking installation

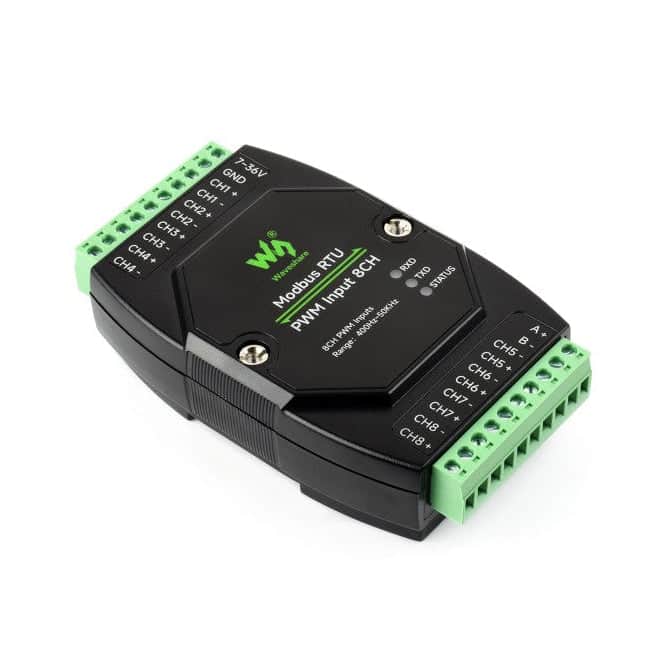

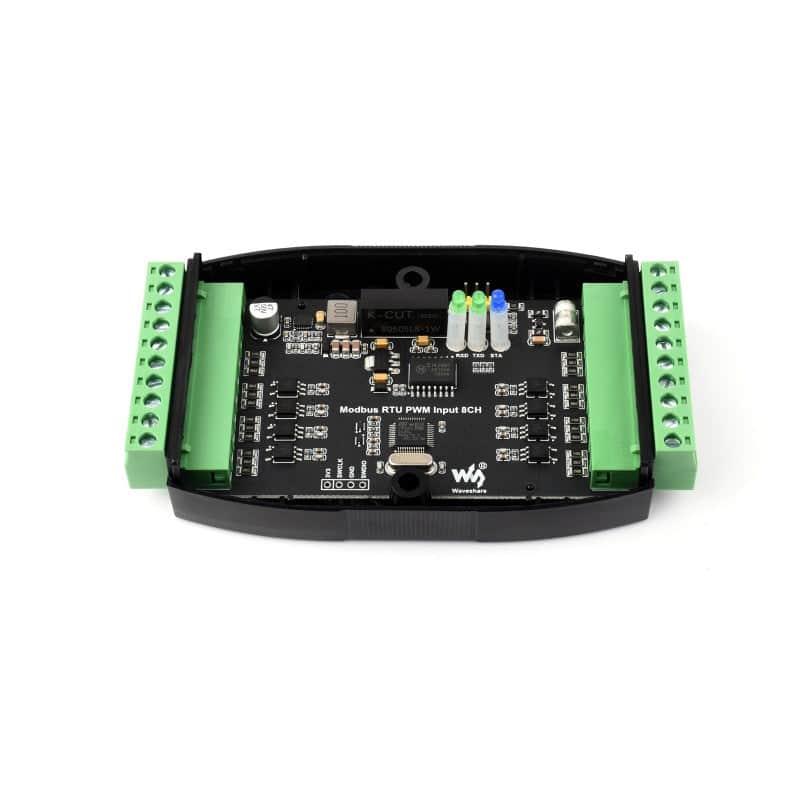

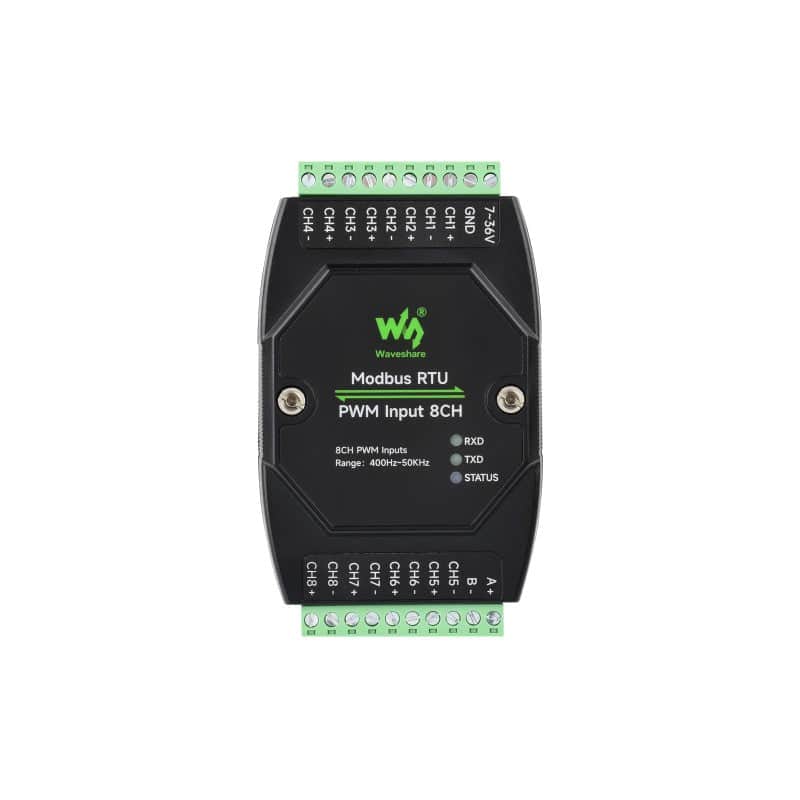

Product show
Dimensions
