Industrial RS232 RS485 Serial to WiFi & Ethernet Converter Supports Modbus (USR-W610)
Features
1.Supports Modbus RTU to TCP, Modbus Polling
2. Hardware watchdog, 24 hours works stable
3.Support DC adapter and terminal power supply 5-36 V
4. Serial to WIFI or WIFi to Ethernet
Characters
- WIFI 2.4GHz 802.11b/g/n wireless standards.
- Work Mode: TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode.
- AP, STA, AP+STA.
- Modbus gateway: Modbus RTU to Modbus TCP, Modbus Polling
- Electrostatic protection
- WatchDog, 24 hours stable operation.
- The function of identity packet function, heartbeat packet function, Websocket function
- Supports timeout reset function, timing reset function
- Configuration by Web Server, setup software, serial/network AT command
- Supports hardware reload.
- Passed EFT test, when there is instantaneous high current in the circuit (such as lightning, power switch, etc.), it can ensure that the device hardware is not damaged.
- Power: 2KV, Ethernet interface 232 485: 2KV
Special Features
- Modbus Polling Mode: In this mode, it supports Modbus TCP and Modbus RTU mutual conversion.
- Heartbeat Packet Function: USR-W610 supports network heartbeat packet and serial heartbeat packet. The network heartbeat packet notifies the server that it is in an active state, and it maintains the normal connection with the server by continuously sending the heartbeat packet.Serial port heartbeat packet notifies the serial device that USR-W610 is in an active state, and takes the initiative to grab the sensor data can not be initiative to push.
- Socket Distribution Protocol: USR-W610 supports SDP, you can add certain header in serial data. It will send the data to the differetnt socket by different header. The data received from the different socket will be added different header before they are sent to serial.
- Regular Restart Function: USR-W610 supports timing and timeout restart function, which makes the system run more stable.

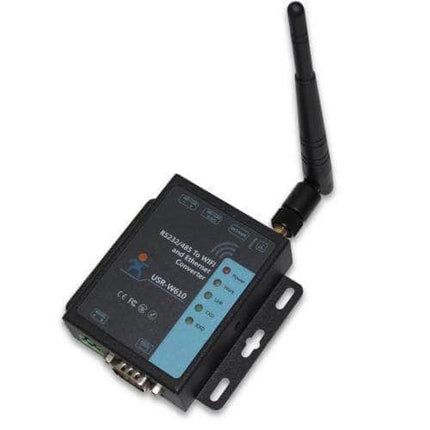

Note: This kit includes the antenna, AU power adapter, and DB9 cable.
Specifications:
Wi-Fi
WiFi 802.11 b/g/n
Frequency Range 2.412GHz-2.484GHz
Transmit Power 802.11b: +19dBm(Max)
802.11g: +18dBm(Max)
802.11n:+17dBm(Max)
Receive Sensitivity 802.11b: -89dBm
802.11g: -81dBm
802.11n: -73dBm

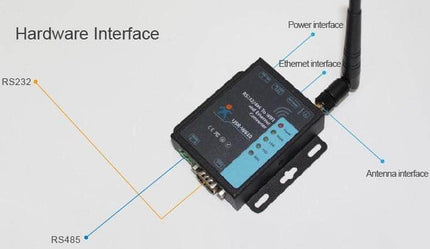

Hardware
Interface Standard RS232：300～460.8Kbps
RS485：300～230.4Kbps
Input Voltage DC5～36V
Operating Temp. -40℃～ 85℃
Storage Temp. -40℃～ 125℃
Size 86*82.5*25mm(L*W*H)
Software
Network Mode Station/AP/AP+Station
Security WEP/WPA-PSK/WPA2-PSK
Encryption WEP64/WEP128/TKIP/AES
Work Mode Transparent transmission/serial AT command/
HTTP Client, Modbus TCP<=>Modbus RTU
Setting Command AT+command
Networking Protocol TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
Max. Client Number in TCP Server Mode 24
Configuration Web sever+ AT command
Documents
Creating WiFi Bridge Instruction
