Industrial RTD Temperature Kit - Atlas Scientific
If you have ever had to add an RTD module to a PLC, then you know firsthand just how complicated and expensive they can be. The RTD3 transmitter is designed to be a simple and cost-effective alternative to traditional RTD modules for PLCs. The RTD3 lets you connect and calibrate up to 3 temperature probes simultaneously.
Use your PLCs 4-20mA input to get the temperature readings.

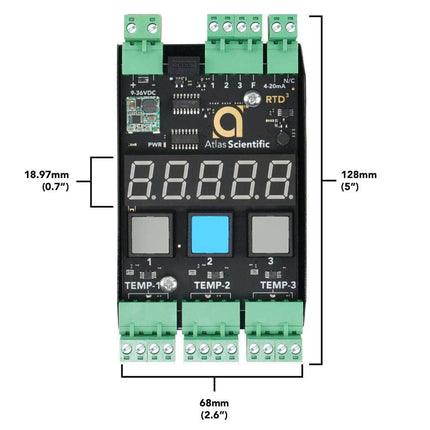

The large display makes it easy to see the temperature and know which probe the reading is coming from.
This kit comes with the RTD transmitter and 1x PT-1000 probes.
• 1x Industrial RTD Temperature Transmitter
• 1x Industrial PT-1000 Temperature Probes
• Probe type: Class A platinum, RTD
• Probe Weight: 184 grams
• Cable length: 3 Meters (10′)
| Reads |
Temperature |
| Probe type |
Class A platinum, RTD |
| Range |
-55 ̊C to 220 ̊C |
| Accuracy |
+/- (0.15 + (0.002*t)) |
| Reaction Time |
90% in 13s |
| Cable length |
3 Meters (10′) |
| Connector |

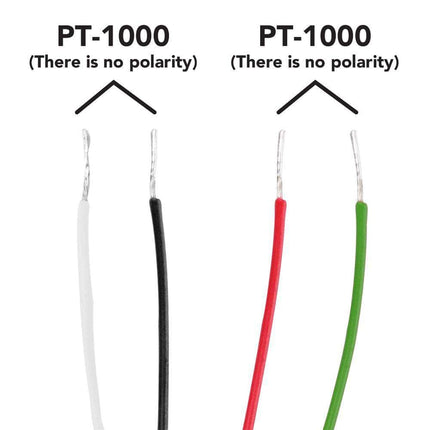

Tinned leads |
| Output |
Resistance (Analog) |
| Life expectancy |
15 years |
