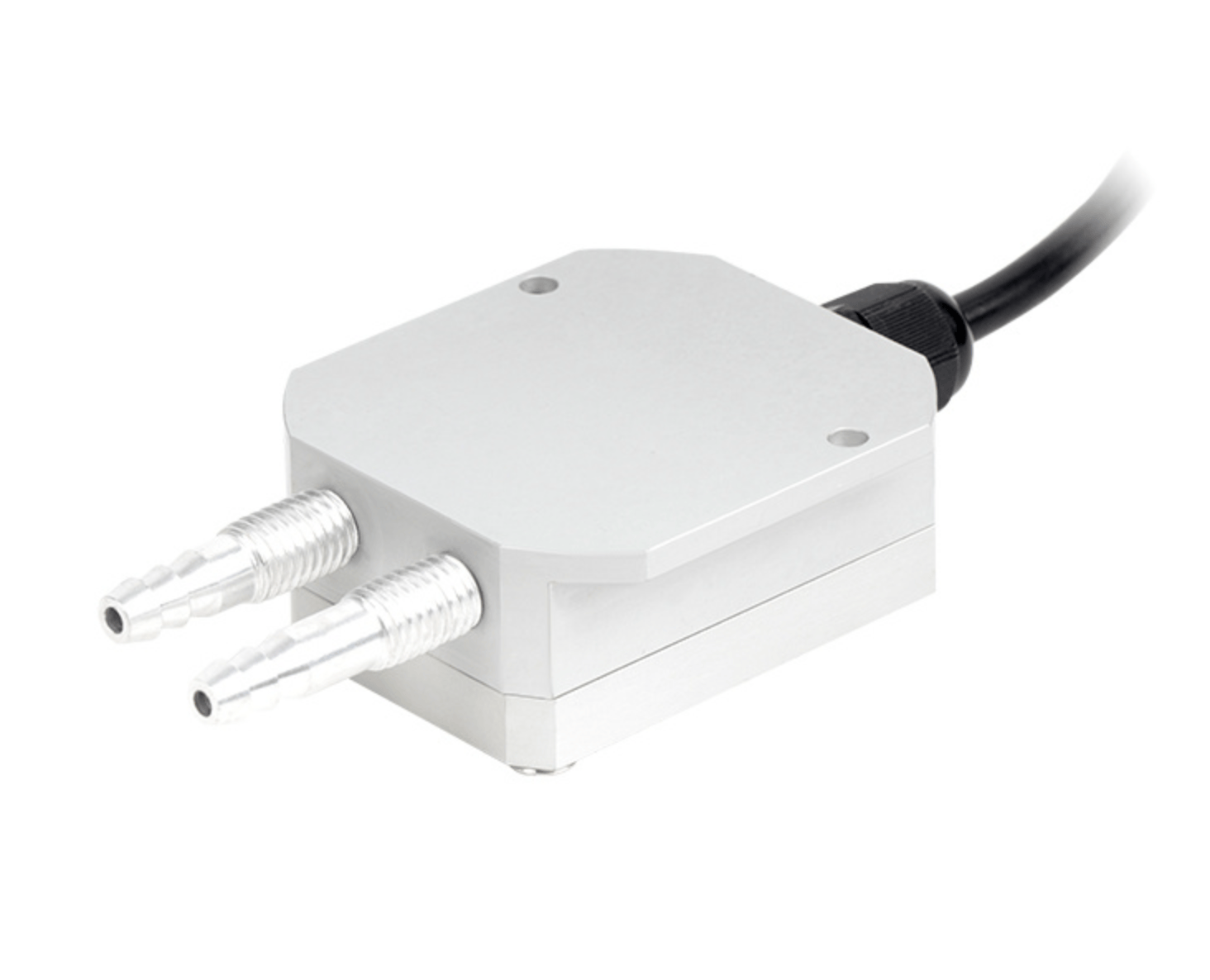

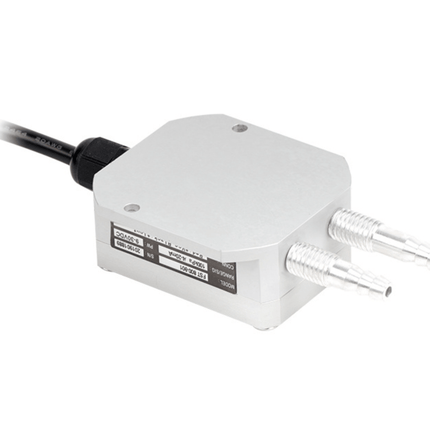

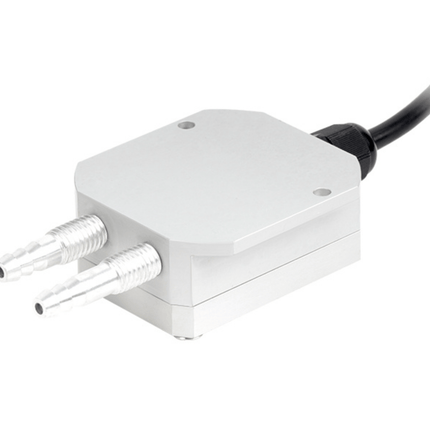

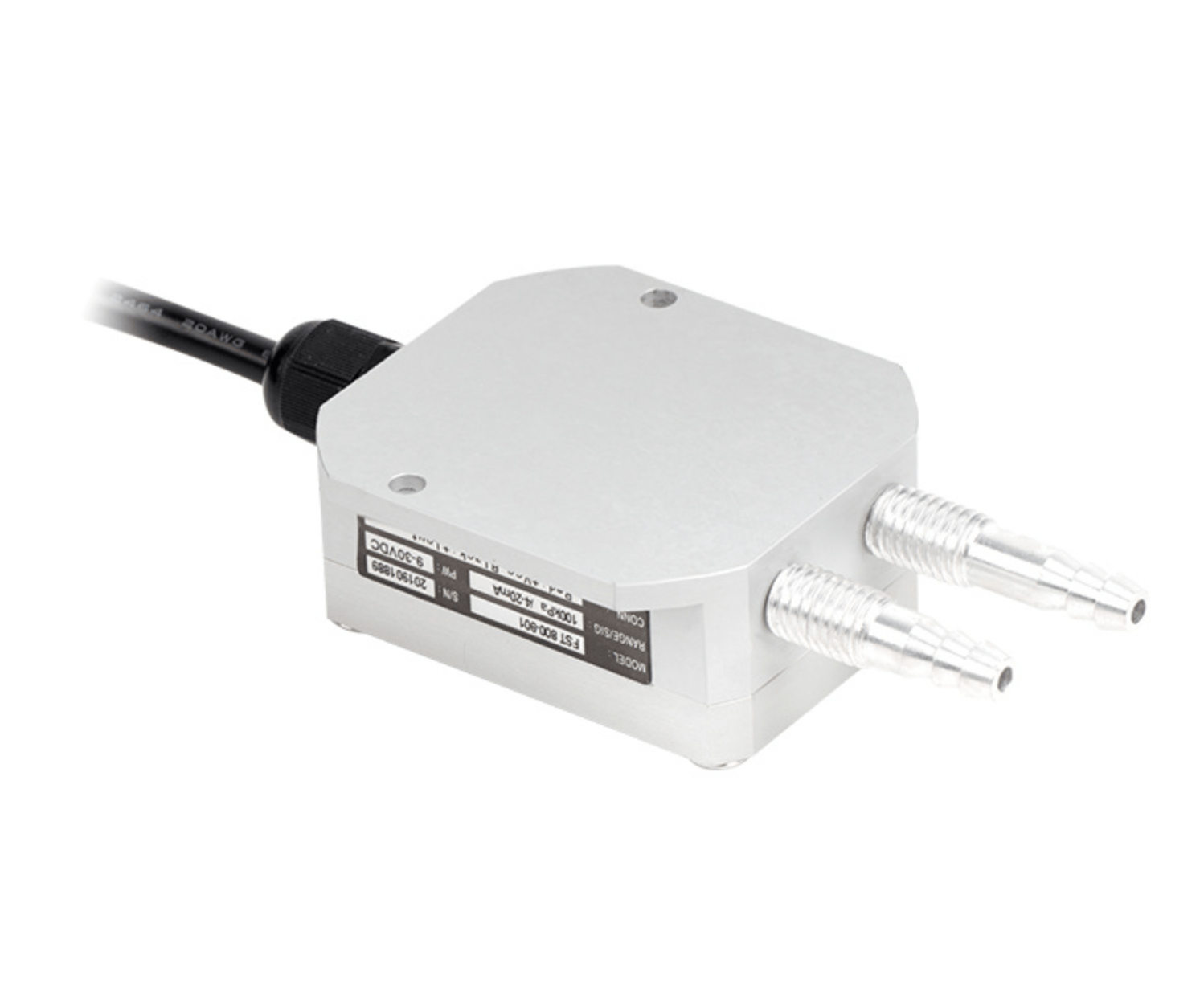

IQDP Industrial Air Differential Pressure Transmitter
IQDP air differential pressure sensor is mainly used for various dry gas pressure and differential pressure measurement and monitoring occasions, such as dry gas pressure, air inlet pipe pressure, indoor and outdoor differential pressure, cotton spinning tank, elevator front room pressure, staircase pressure measurement, etc. High accuracy, fast response, and good stability.
Specifications:
| Measured medium |
Gas (weak corrosion and dryness) |
| Range |
0 ~0.5 .. 100kPa (other needs to be customized) |
| Output |
4~20mA (second -line system) 0~5V (third -line system) |
| Comprehensive accuracy |
0.5%FS, 1%FS of the soil, 1%FS |
| Powered by |
12 ~ 30VDC |
| Operating temperature |
-10 ~ 80 ℃ |
| Temperature compensation |
-10 ~ 70 ℃ |
| Overload |
150%FS |
| Destruction |
200%FS |
| Load Resistance |
Current output: RL <(power supply voltage-9V) /20mA,
Voltage output: RL> 100KΩ
|
| Sealing level |
IP65 |
| Electrical connections |
Direct lead |
| Pressure connection |
M10x15 front end bands φ_x005f tower -shaped air pressure joint |
| Connect the thread material |
Aluminum alloy |
