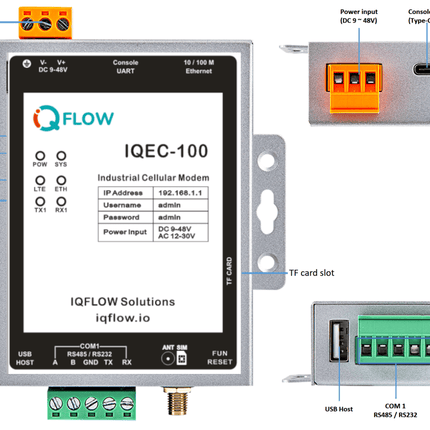

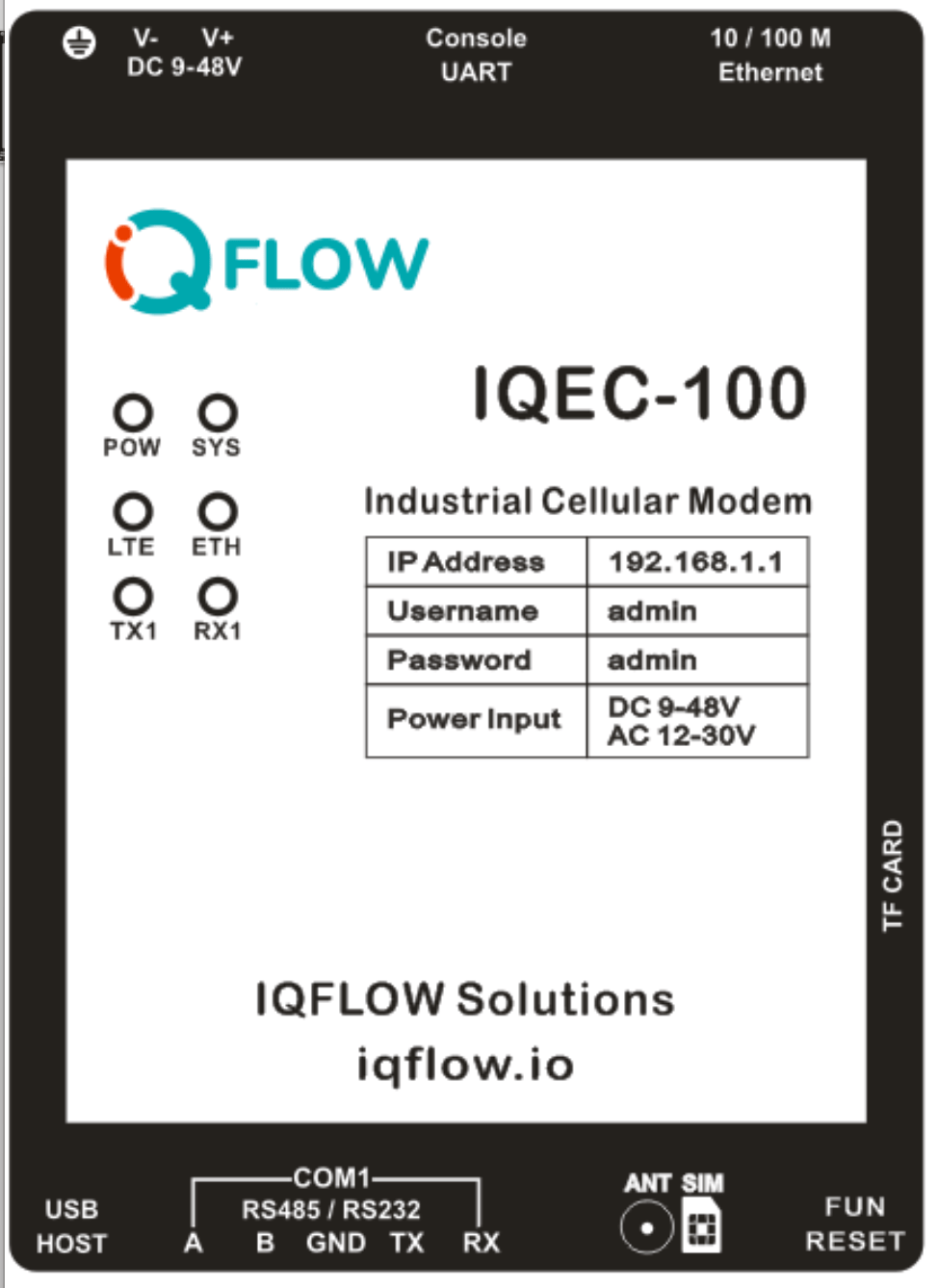

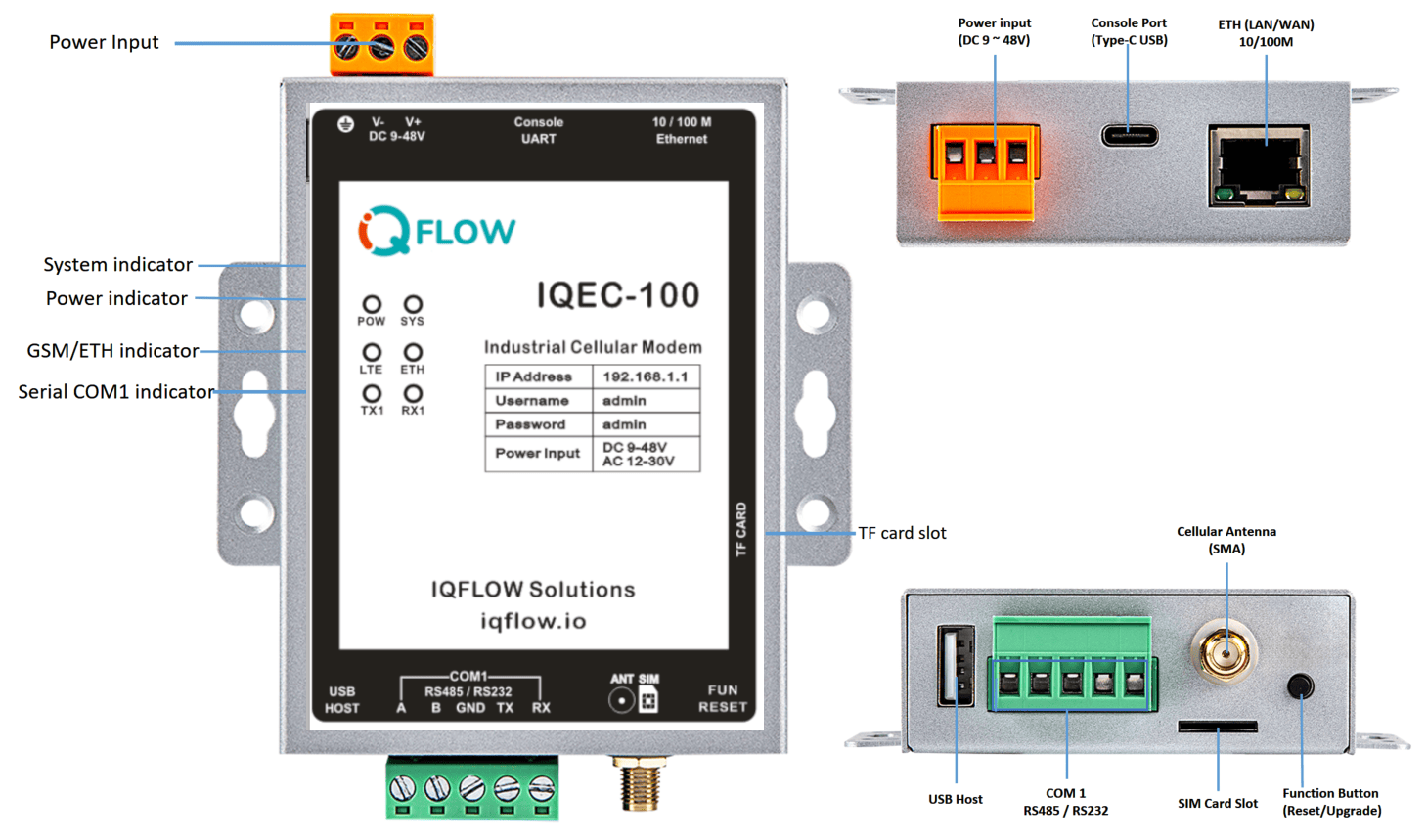

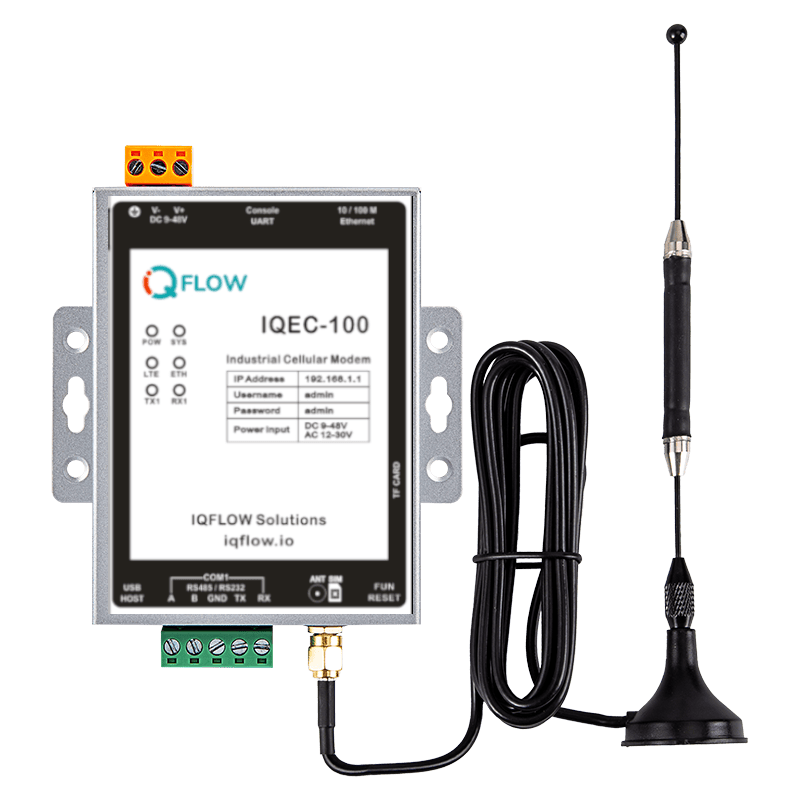

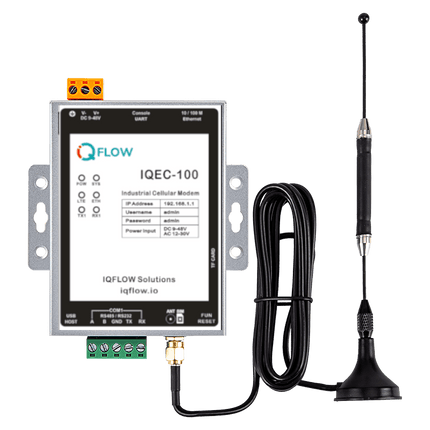

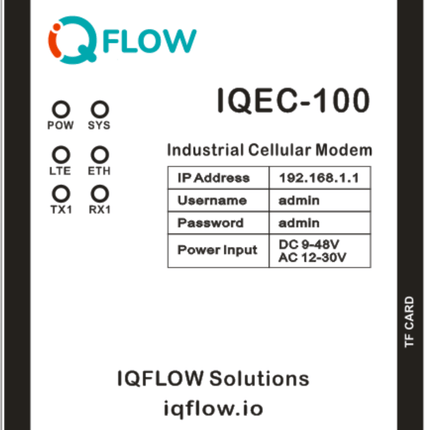

IQEC-100 Industrial DTU Edge Controller RS232/RS485
The IQEC-100 is an ARM-based industrial computer designed as a compact, cost-effective industrial DTU for edge connectivity, data acquisition and communication, and other applications.
It features 1 x RS485/232 serial ports, 1x 10/100 Mbps Ethernet port, and an integrated miniPCIe socket for 4G LTE/NB-IoT or Wi-Fi connectivity.
Its full industrial-grade design ensures reliable operation in -40 °C to +85 °C and harsh EMI/surge environments.
- ARM ARM Cortex-A7 @ 1.1GHz
- 1x Isolated RS485/RS232 for industrial data acquisition
- 1x 10/100 Mbps Ethernet
- Mini-PCIe slot for 4G LTE/NB-IoT/Cat M1 Cellular Network
- -40°C to +85°C Operating Temperature
Specification
| CPU |
ARM Cortex-A7 @ 1.1GHz |
| RAM |
64MB |
| Storage |
256MB |
| Storage Expansion |
1x TF Slot |
| Serial Port (Isolated) |
2 x RS232/485 |
| Ethernet Port |
1x 10/100 Mbps |
| Wireless Module Slot |
1 x mPCle slot for Cellular module or Wi-Fi module |
| Antenna Connector |
1x SMA Female connector for Cellular or Wi-Fi antenna |
| SIM Solt |
1x Micro SIM (12mm*15mm) |
| USB Port |
1x USB 2.0, support USB peripherals (like a WiFi adaptor) |
| Console Port |
1 x UART type-C connector |
| Button |
1x button for Reboot and Reset |
| Power Supply |
9 ~ 48 VDC, 12 ~ 30 VAC |
| LED Indicator |
Power x 1, System x 1, Cellular WAN x 1, WAN x 1, COM trans x 4 (TX + RX) |
| Dimension (LxWxH) |
108.7mm x 103mm x 27mm (LxWxH) |
| Weight |
340 g (0.75 lb) |
| Operating Temperature |
Industrial-grade -40 to 85°C (-40 to 185°F) |
| Pre-installed OS |
Linux 5.10 |
| OT-to-IT Data Collect and Convert |
Modbus RTU/ASCII/TCP Master/Slave, BACnet MSTP/IP
IEC104, DNP3, OPC UA, EtherNet/IP, PLC protocols,
MQTT, Sparkplug B, ... |
| Secondary Development |
Python, C, C++, Go, ...
|
Documents:
IQEC-100 Datasheet
Link to IQFLOW Docs and IQEdgePro
