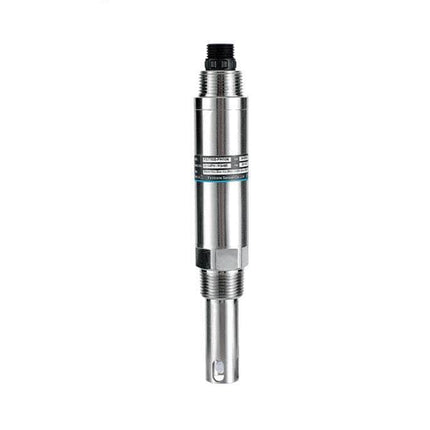

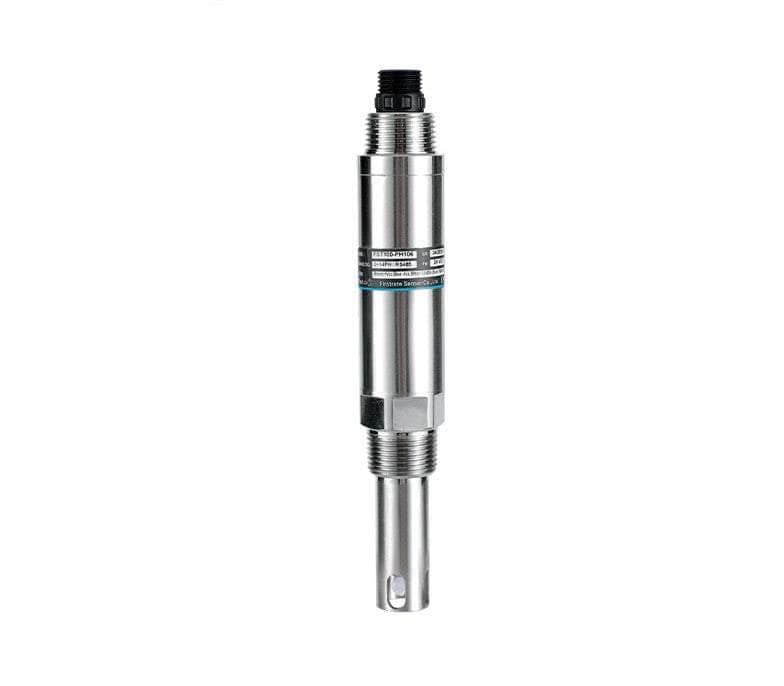

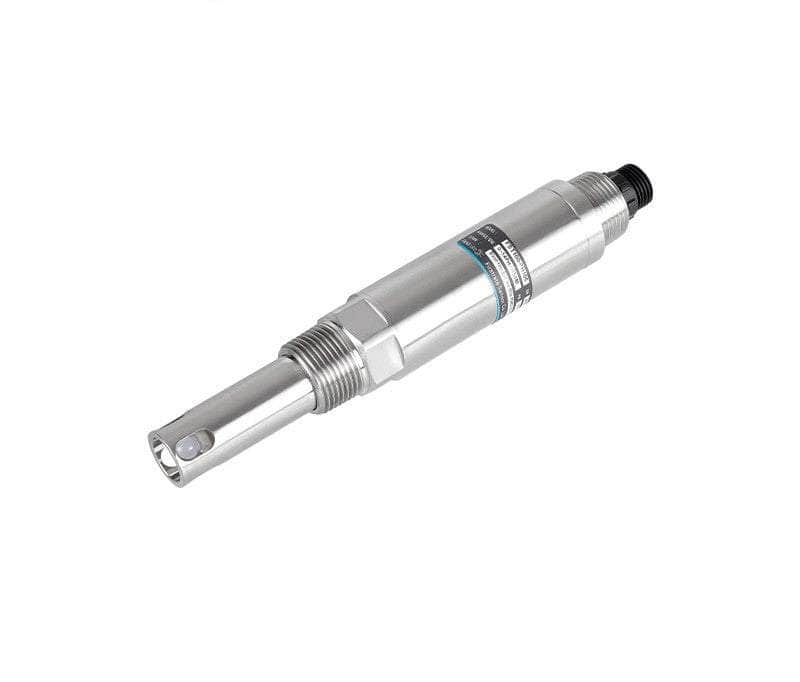

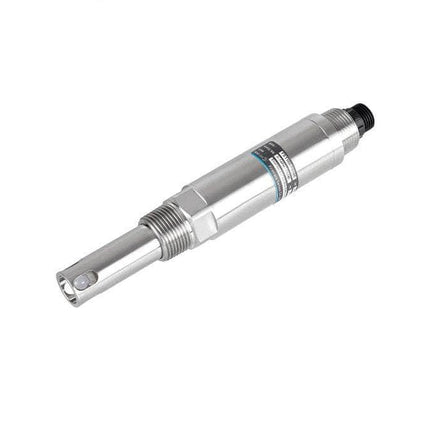

IQEC+ Industrial EC Sensor 4-20mA + Modbus RS485 5m Cable Auto Temp Compensation

Description

IQEC+ Industrial EC Sensor 4-20mA + Modbus RS485 5m Cable Auto Temp Compensation

The IQEC+ water EC sensor can be used for environmental water quality monitoring, acid/alkali/salt solutions, chemical reaction processes, and industrial production processes, and can meet the requirements for online EC measurement in most industrial applications.

Technical Specifications:

model
IQEC+
Measuring range
0-2000uS/cm, 0-20mS/cm, 0-200mS/cm
resolution
0.1/0.01/0.001
Accuracy
1.5%FS, ±0.3
Operating temperature
0~65
Pressure Range
<0.6MPa
Temperature compensation
Automatic temperature compensation (NTC)
powered by
12~24VDC
Signal output
4-20mA and RS-485(Modbus/RTU)
shell material
Stainless steel

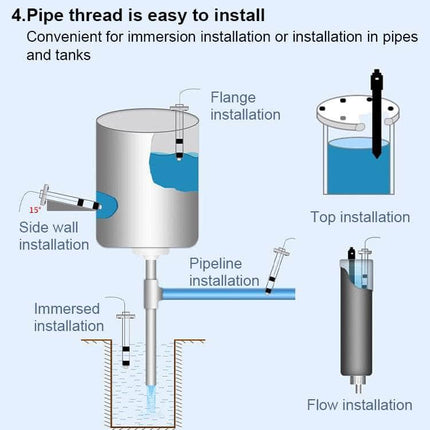

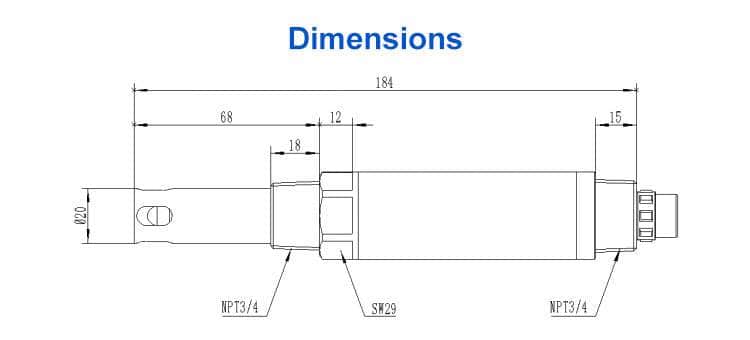

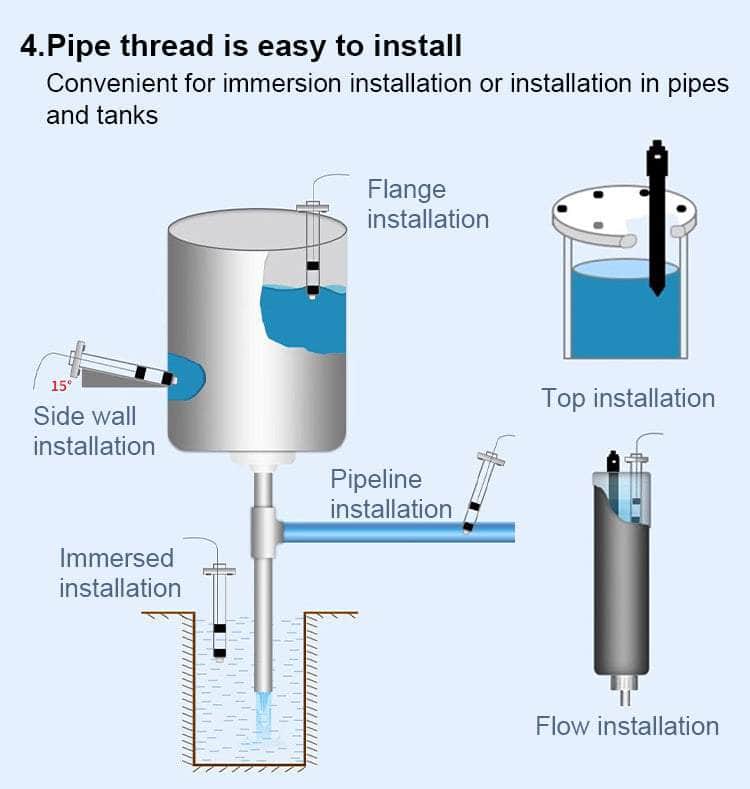

Installation method

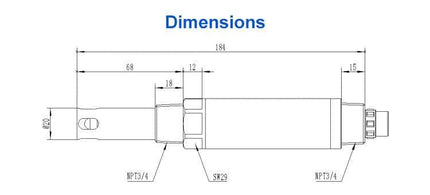

Submersible installation, 3/4" NPT pipe thread
Cable length
5 meters, other lengths can be customized
Calibration method
Two-point calibration/multi-point calibration
Power consumption
0.2W@12V
Protection level
IP68



Documents:

IQEC+ EC Sensor User Guide



IQEC+ Industrial EC Sensor 4-20mA + Modbus RS485 5m Cable Auto Temp Compensation

Product form
Free pickup in our shop(s)

SKU: IQEC+

$449.00 $349.00 Excl. GST

$349.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    IQEC+ Industrial EC Sensor 4-20mA + Modbus RS485 5m Cable Auto Temp Compensation

    The IQEC+ water EC sensor can be used for environmental water quality monitoring, acid/alkali/salt solutions, chemical reaction processes, and industrial production processes, and can meet the requirements for online EC measurement in most industrial applications.

    Technical Specifications:

    model
    IQEC+
    Measuring range
    0-2000uS/cm, 0-20mS/cm, 0-200mS/cm
    resolution
    0.1/0.01/0.001
    Accuracy
    1.5%FS, ±0.3
    Operating temperature
    0~65
    Pressure Range
    <0.6MPa
    Temperature compensation
    Automatic temperature compensation (NTC)
    powered by
    12~24VDC
    Signal output
    4-20mA and RS-485(Modbus/RTU)
    shell material
    Stainless steel
    Installation method
    Submersible installation, 3/4" NPT pipe thread
    Cable length
    5 meters, other lengths can be customized
    Calibration method
    Two-point calibration/multi-point calibration
    Power consumption
    0.2W@12V
    Protection level
    IP68



    Documents:

    IQEC+ EC Sensor User Guide
