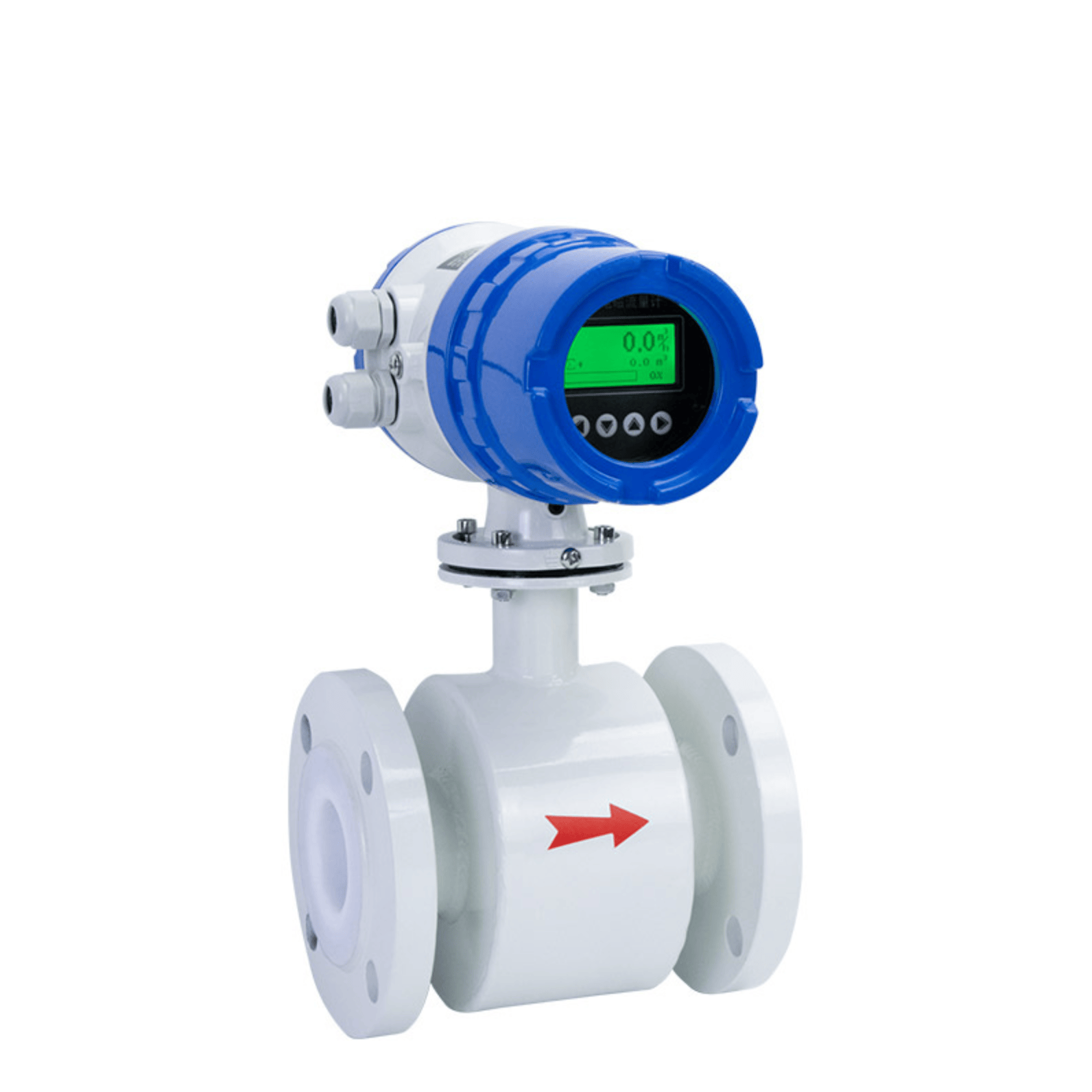

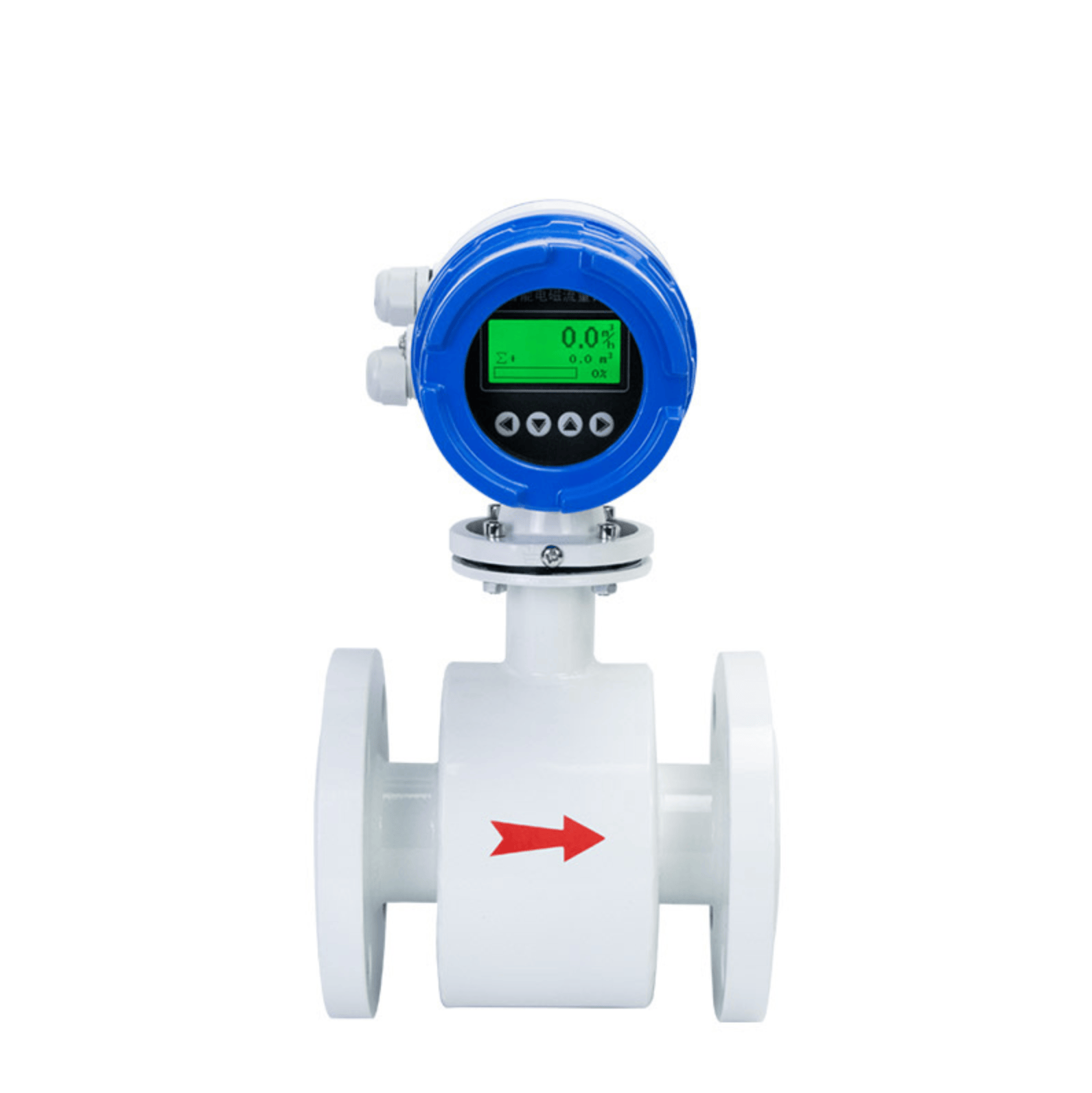

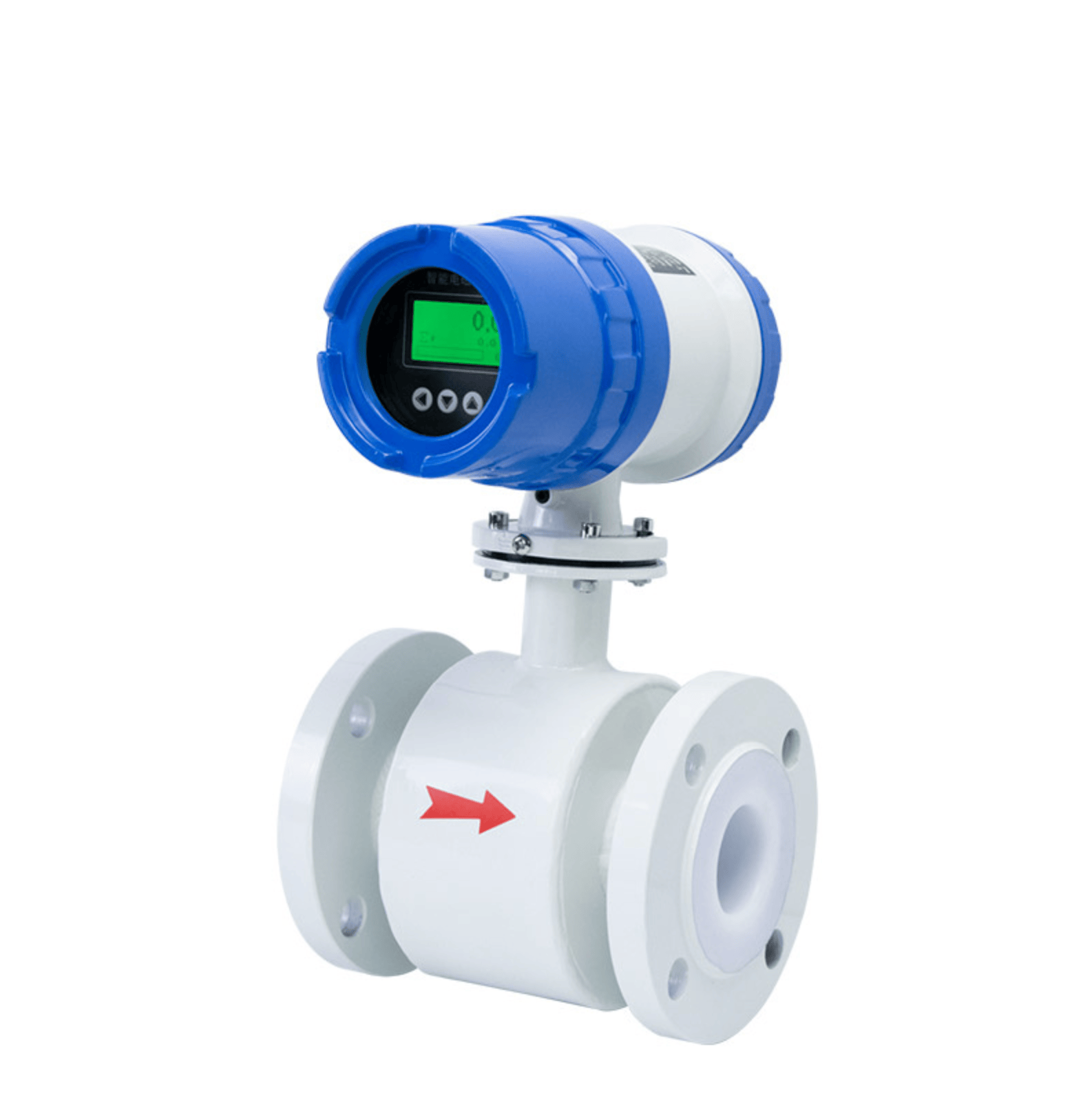

IQFM-EM Intelligent Electromagnetic Flow Meter Sensor 4-20mA RS485 All Size

Description

IQFM-EM Intelligent Electromagnetic Flow Meter Sensor 4-20mA RS485 All Size

IQFM-EM Electromagnetic flowmeters are suitable for measuring the volume flow of conductive liquids and slurries in closed pipelines. They are mainly used for measuring clean water, sewage, power production and distribution, chemical and industrial pharmacy, food industry and other fields.

  • Cold and heat metering function
  • Dual frequency excitation, good zero point stability
  • Self-diagnosis function, intelligent work
  • Built-in reference electrode, no grounding ring required
  • Support MODBUS protocol or HART protocol
  • Excellent low flow measurement accuracy, can measure forward/reverse flow

Specifications:

 Measuring range  Maximum flow rate 15m/s
 Temperature   measurement accuracy  ±0.2% of measured value+0.3m/S
 Caliber  Nominal diameter 10mm~3000 mm
 Nominal pressure  0.6MPa, 1.0MPa, 1.6MPa, 4.0MPa or others
 Output signal  4~20mA / pulse
 Communication  Rs485, support MODBUS communication protocol (non-standard), support HART   communication protocol (optional)
 Protection level  IP65 for integrated type, IP67 or IP68 for split type (optional)
 Power supply  AE86~220V or DC24V (optional)
 Display  Up to 8-digit LCD display, real-time clock displays various flow data, optional m 3 or   L display unit
 CE certification  According to LVD 2006/95/EC, and EMC 2004/108/EC
 EN 61326-1: 2006 radiation standard (declared to comply with BS EN50081-1)
 EN 61326-1: 2006 anti-interference standard (declared compliance with BS   EN50082-1)
 EN 61010-1: 2001, Safety-Part 1: General requirements
 Electrode material  Stainless steel 316L, others can be customized according to requirements (for   example: Hc, Hb, Ti, Ta, Pt)
 Lining material  Ne, FEP, PTFE or polyurethane optional
 Shell material  Carbon steel, can be customized according to customer requirements (for example:   stainless steel SS304)
 Medium temperature  -20~80℃, up to 180℃ according to requirements (Note: limited by the temperature   characteristics of the lining material)
 Ambient temperature  -20~60℃
 Environment humidity  <85% R.h (non-condensing)



Documents:

IQFM-EM Datasheet

IQFM User Manual



Read more

IQFM-EM Intelligent Electromagnetic Flow Meter Sensor 4-20mA RS485 All Size

Product form
Free pickup in our shop(s)

SKU: IQFM-EM-DN15

$1,100.00 $950.00 Excl. GST

$1,100.00 $950.00
Product available in stock, Express post same business day.

    • 100% Australian Owned and Operating
    • Local Australian Stock — Fast Same-Day Dispatch or Pickup
    • Price Matching & Bulk Discounts — Request a Quote
    • Purchase Orders & 30-Day Accounts for Approved Accounts
    • Accounts Auto Apply to AU/NZ Universities, Schools, ASX-Listed Companies & Government Departments
    • Free Local Technical Support from a Qualified Scientist — Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government
    • 30-Day Free Return and Refund Policy
    • Min 1-Year Warranty on All Products — Extension on Selected Ranges
