Description
IQFM Turbine Flow Sensor Meter various size
Reliable Turbine Flow meter for water flow monitoring systems. Available in various sizes.
IQFM Common Specifications:
Material: Nylon (+ Glass Fiber) / Acetal
Output Signal: NPN Pulse
Operating Voltage: DC3.5 ~24V
Max Working Current: < 15mA
Working Temperature: -20℃ ~ 80℃
Output Pulse High Level: > DC4.7V (input 5VDC)
Output Pulse Low Level : < DC0.5V (input 5VDC)
Max Pressure: < 1.75MPa

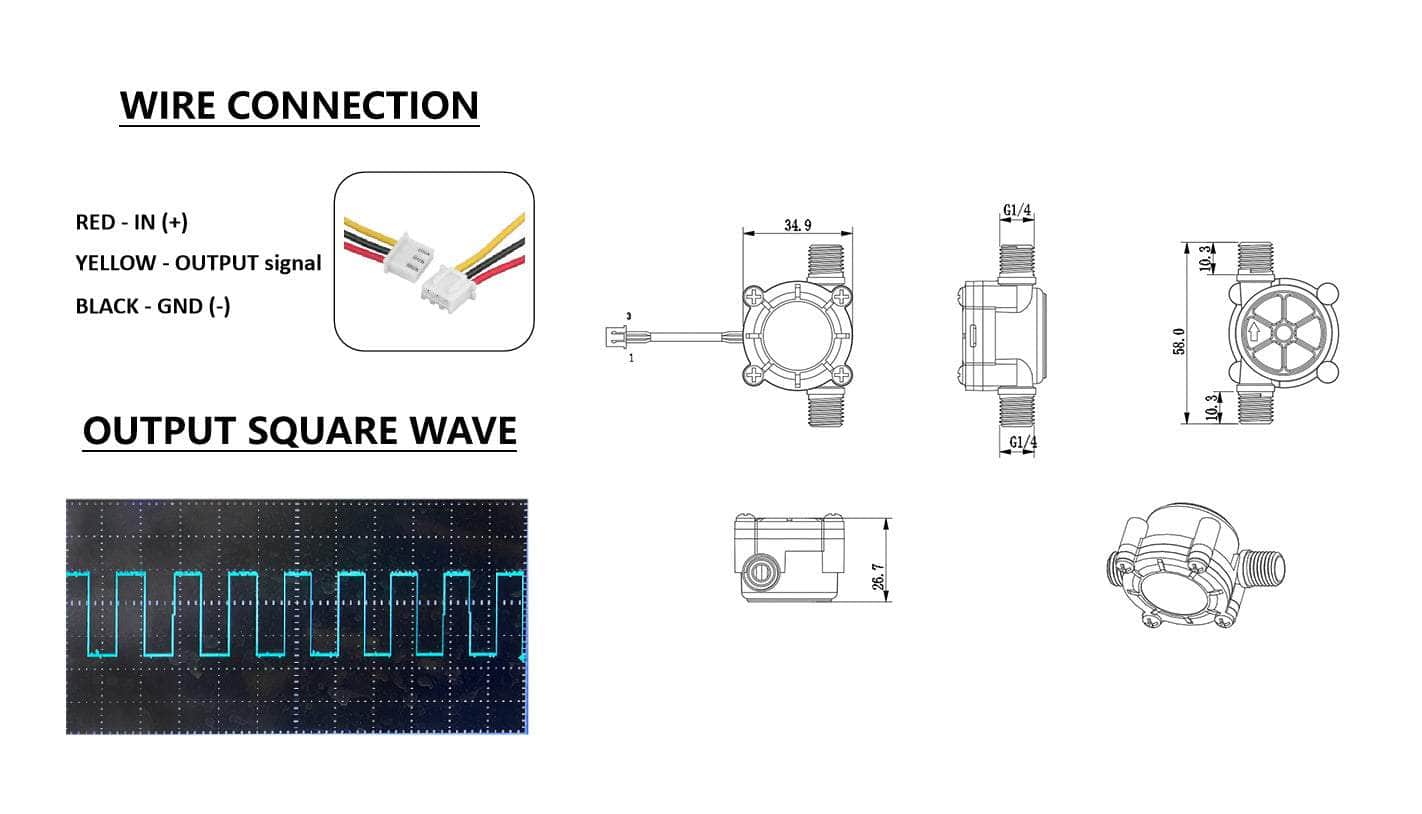

Model No. : IQFM-DN8-P
Pipe Connection: G1/4" (DN8)
Flow Range: 0.5 - 6L/min
K Factor / Frequency: 23*Q-3, Q=L/min, ±3%
Flow Pulse: 1L water ≈ 1377 pulses

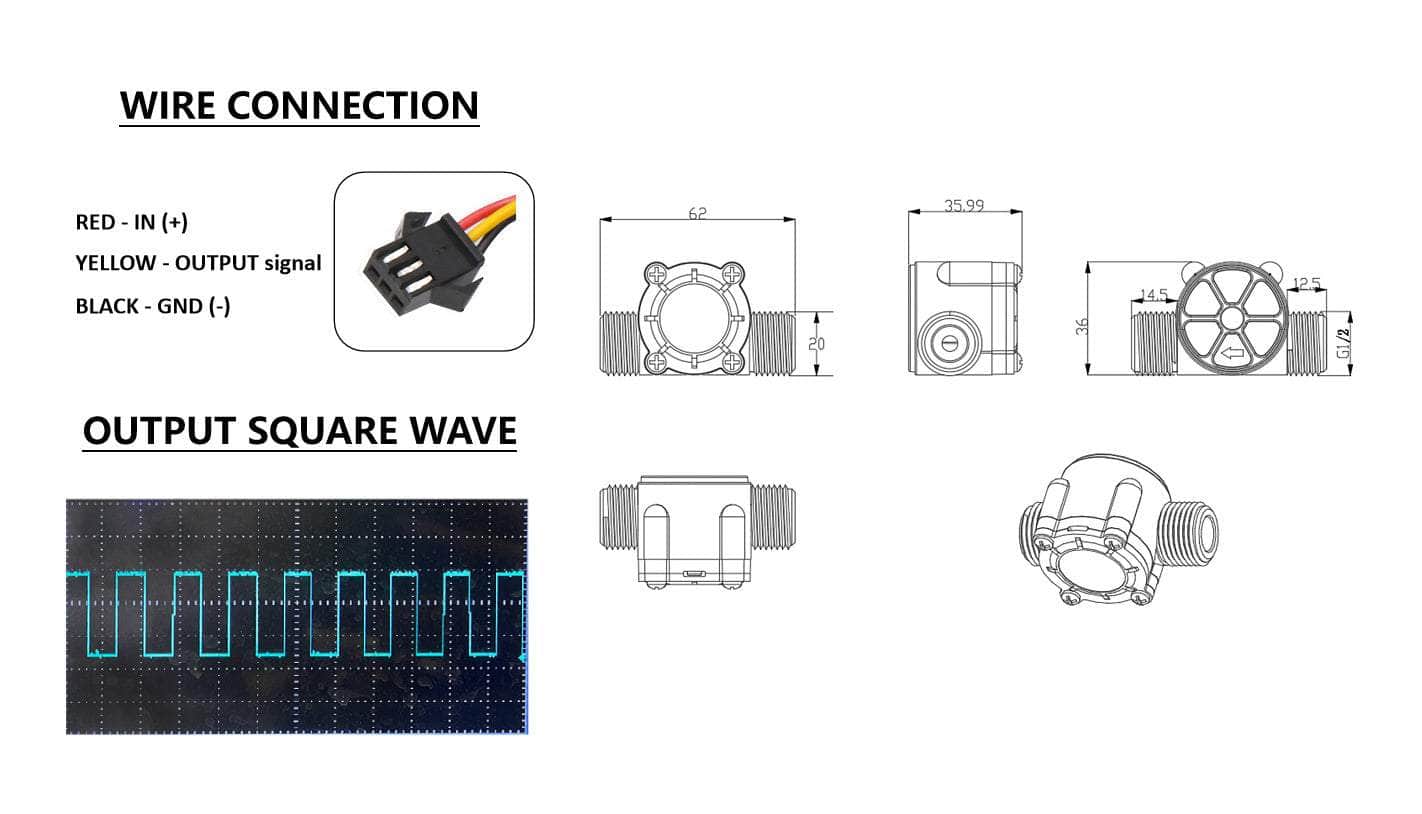

Model No. : IQFM-DN15-P
Pipe Connection: G1/2" (DN15)
low Range: 1 - 30L/min
K Factor / Frequency: 7.5*Q, Q=L/min, ±3%
Flow Pulse: 1L water ≈ 450 pulses
Model No. : IQFM-DN20-P
Pipe Connection: G3/4" (DN20)
Flow Range: 2 - 60L/min
K Factor / Frequency: 6*Q, Q=L/min, ±3%
Flow Pulse: 1L water ≈ 360 pulses
Model No. : IQFM-DN25-P
Pipe Connection: G1" (DN25)
Flow Range: 1 - 100 L/min
K Factor / Frequency : 1.08*Q, Q=L/min, ±3%
Flow Pulse: 1L water ≈ 64.8 pulses

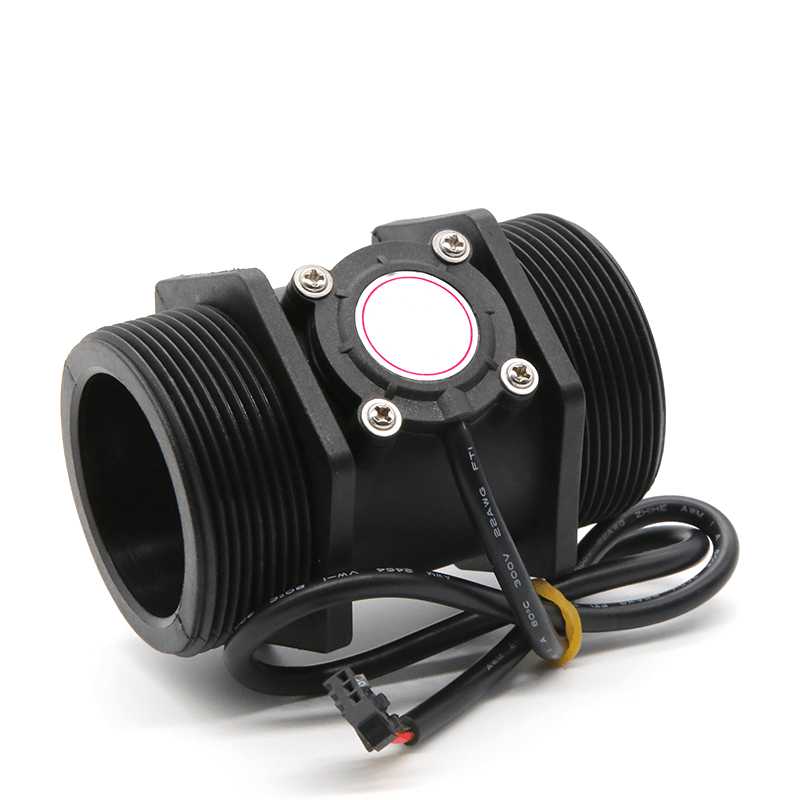

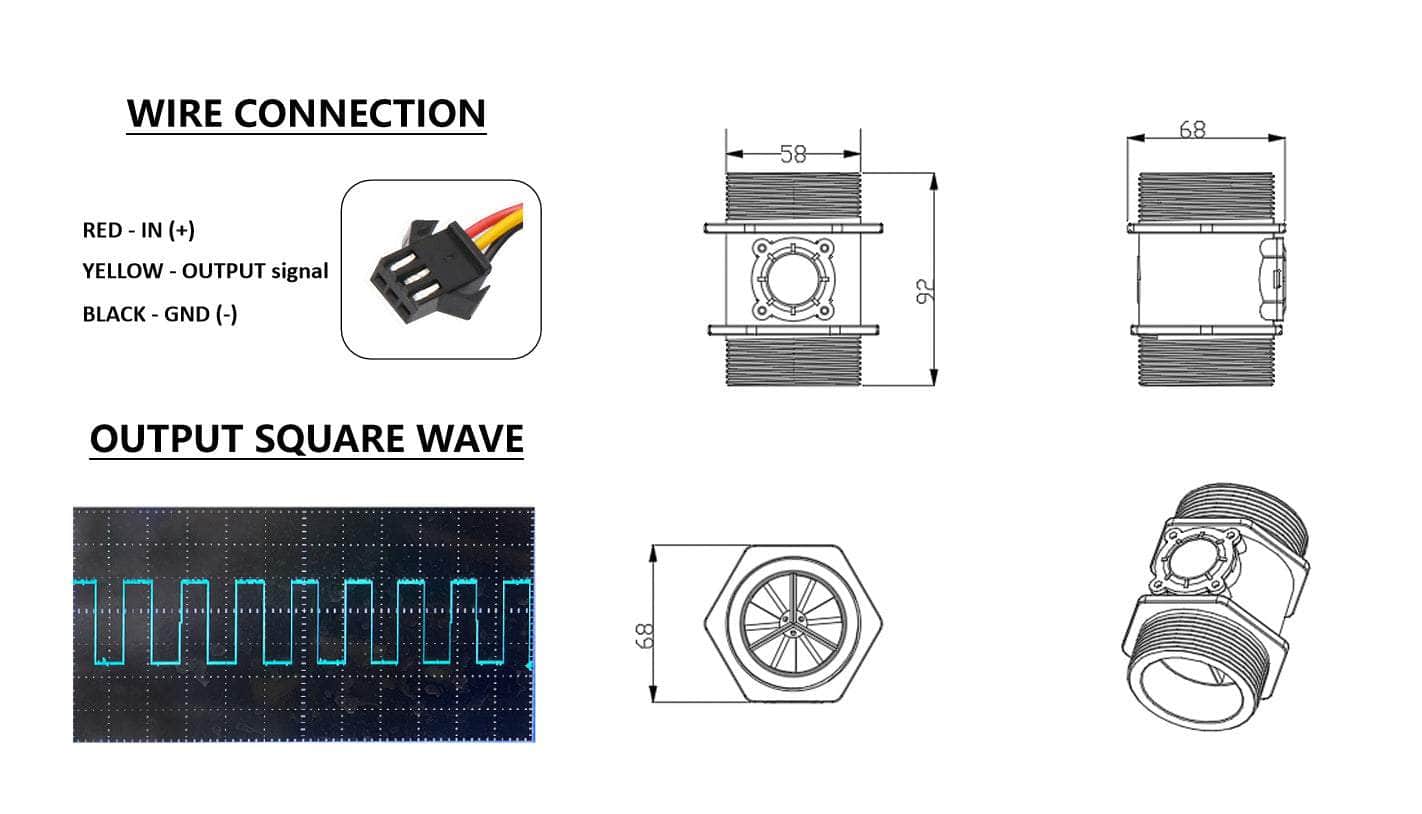

Model No. : IQFM-DN50-P
Pipe Connection : G2" (DN50)
Flow Range: 10 - 200L/min
K Factor / Frequency: 0.2*Q, Q=L/min, ±3%
Flow Pulse: 1L water ≈ 12 pulses
