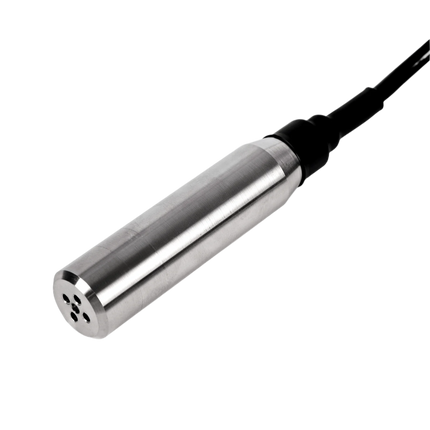

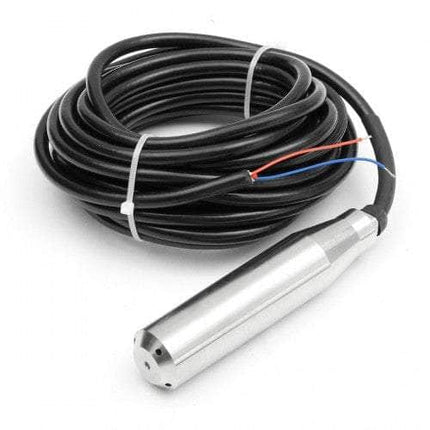

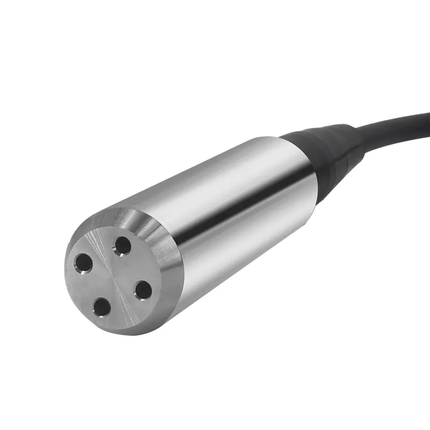

IQLT-G Industrial Submersible Level Transmitter Sensor
IQLT-G series is a popular submersible level transmitter for general industrial applications with stainless steel material and are not only notable for its compact design, but they also offer excellent quality at competitive pricing.
IQLT-G submersible level transmitter uses a high-stability and high-reliability piezoresistive pressure sensing element and with a special conditioning circuit, it could output a standard current or voltage signal. It is compact in design, stable and reliable in overall performance, and very suitable for general industries.
The IQLT-G submersible level transmitters provide a long-term, consistent and stable performance with high accuracy. The level of accuracy required, the pressure measuring range, the housing material, the pressure ports as well as the output signals will vary based on the application's unique requirements.
The IQLT-G level transmitters are suitable to measure the tank level such as water tank, storage tank, etc. Our level transmitters range from 0mH2O up to 200mH2O, and outputs 0.5V~2.5V DC / 0.5V~4.5V DC / 4mA~20mA DC, RS485 Modbus, I2C, etc.
Features:
- Multiple output signals available, meet different process needs
- Fast supply: modular design, professional supply platform
- Low power consumption with low power supply requirement
Custom Ordering Guide
Specify the following specs required for your application:
-
Level Range: 0mH2O, 2mH2O, 5mH2O, 10mH2O up to 200mH2O
-
Output Signal: 0V~5V DC, 0V~10V DC, 4mA~20mA DC, RS485 Modbus, I2C, etc.
-
Accuracy: ±0.25%, ±0.5%, ±1%, others
-
Material: 316L Stainless Steel
-
Housing Protection: IP68
Downloads:
IQLT-GA 4-20mA Datasheet
IQLT-GD Digital RS485 Modbus Datasheet
Operation Manual
ASCII Communication Protocol
MODBUS Communication Protocol
