Description

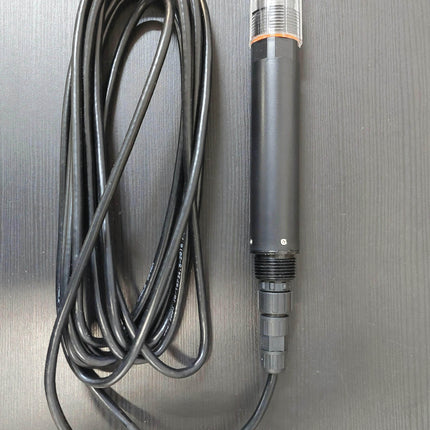

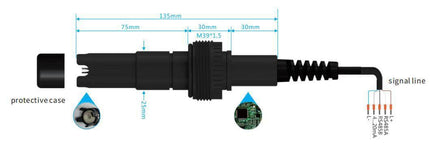

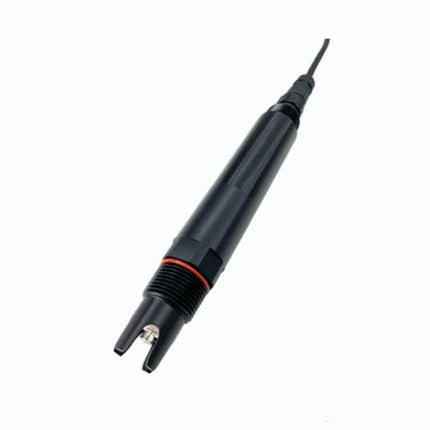

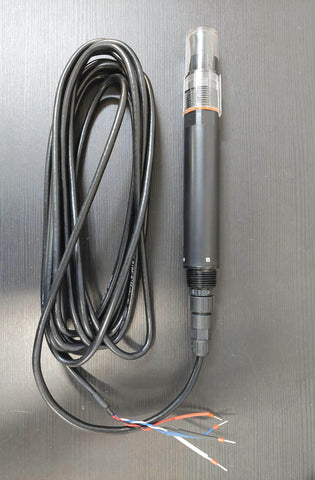

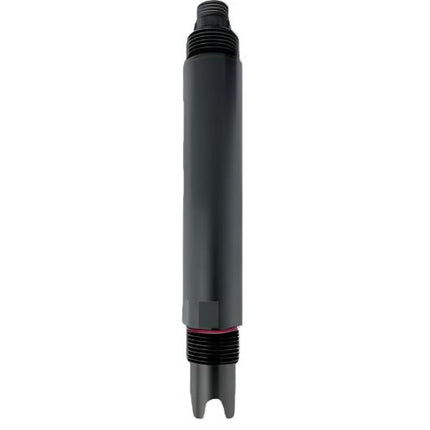

IQOP Industrial ORP Sensor Modbus RS485 5m Cable
Technical Specifications:
| ORP measurement range |
-2000..2000mV |
| Resolution |
0.01 mV |
| Measurement accuracy |
±0.01 mV |
| Temperature measurement range |
0....60℃ |
| Resolution |
0.1℃ |
| Temperature measurement accuracy |
±0.3℃ |
| Compensation mode |
Automatic/manual |
| Signal output |
420mA adjustabie/three-wire |
| Current accuracy |
1%FS |
| Output load |
Less than 750Ω |
| Data communication |
Rs4854 MODBUS-RTU |
| Working power |
24VDC,12VDC(recommended)5VDC |
| Working humidity |
Relatve hurnidity<90% |
| Withstand voltage range |
0...3bar |
| Shell material |
ABS |
| Sensitive film number |
H1020 |
| Process connections |
M39*1.5 |
| Electrical connections |
Direct outlet with 5m cable |
| Electrode protective sleeve |
Have |
| Protection Class |
IP68 |
| Weight |
0.5kg |
Documents:
IQOP ORP Sensor Datasheet
IQOP ORP Sensor User Guide
