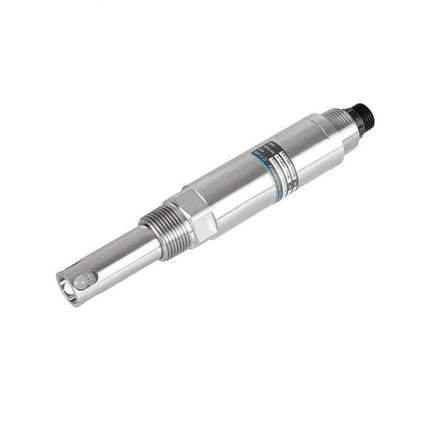

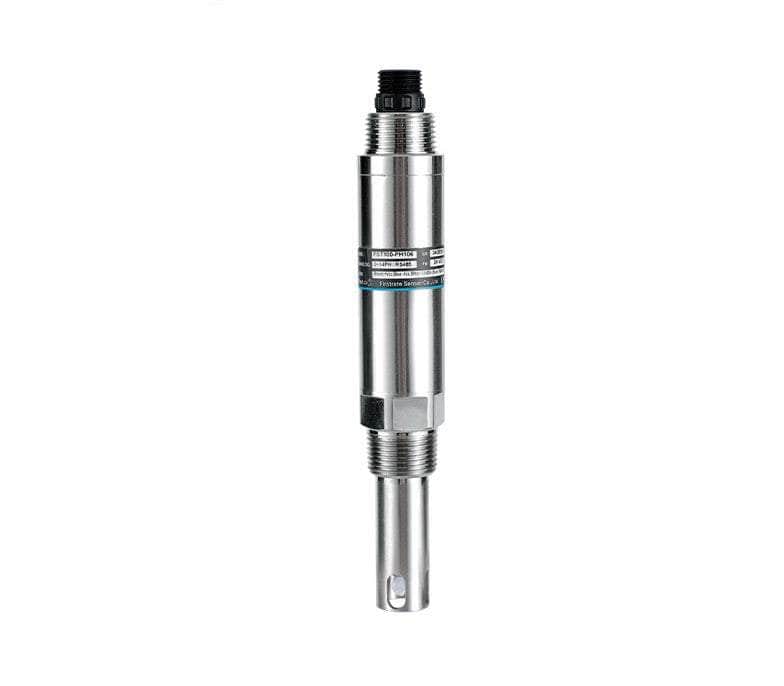

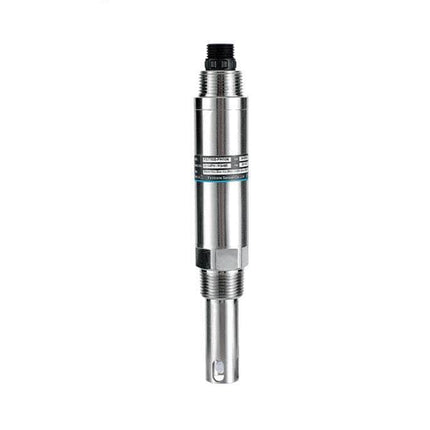

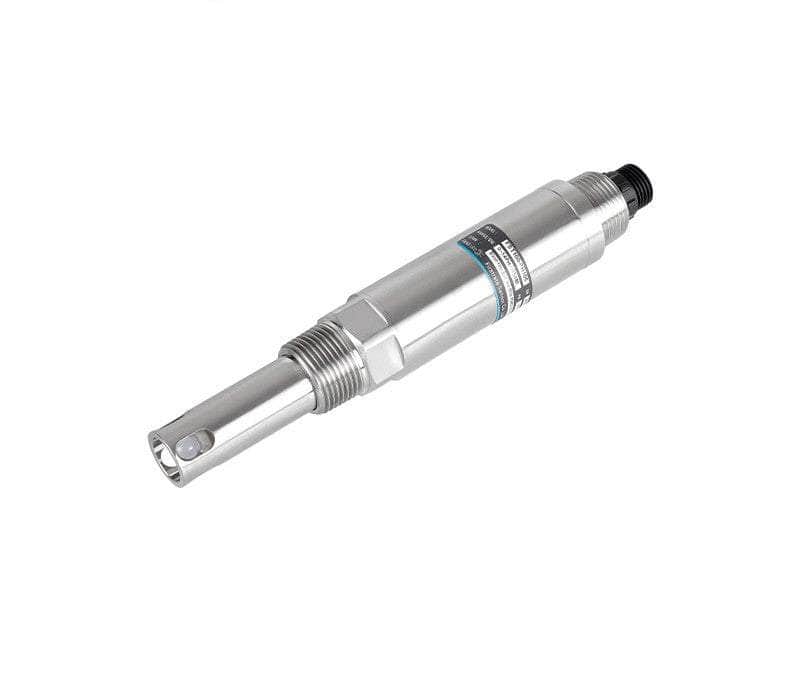

IQPH+ Industrial pH Sensor 4-20mA + Modbus RS485 5m Cable Auto Temp Compensation

Description



IQPH+ Industrial pH Sensor 4-20mA + Modbus RS485 5m Cable Auto Temp Compensation

The IQPH+ water pH sensor can be used for environmental water quality monitoring, acid/alkali/salt solutions, chemical reaction processes, and industrial production processes, and can meet the requirements for online pH measurement in most industrial applications.

Technical Specifications:

model
IQPH+
Measuring range
0~14.00pH
resolution
0.01pH
Accuracy
±0.1pH,±0.3
Operating temperature
0~65
Pressure Range
0~4bar

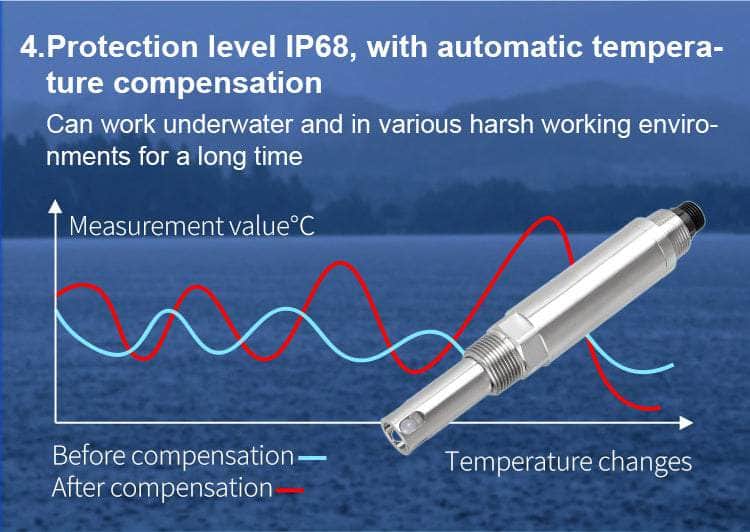

Temperature compensation
Automatic temperature compensation (NTC)
powered by
12~24VDC
Signal output
4-20mA and RS-485(Modbus/RTU)
shell material
Stainless steel

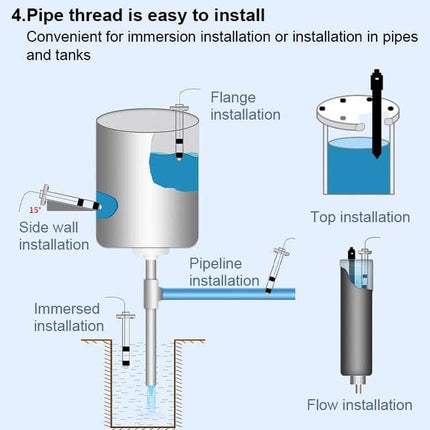

Installation method

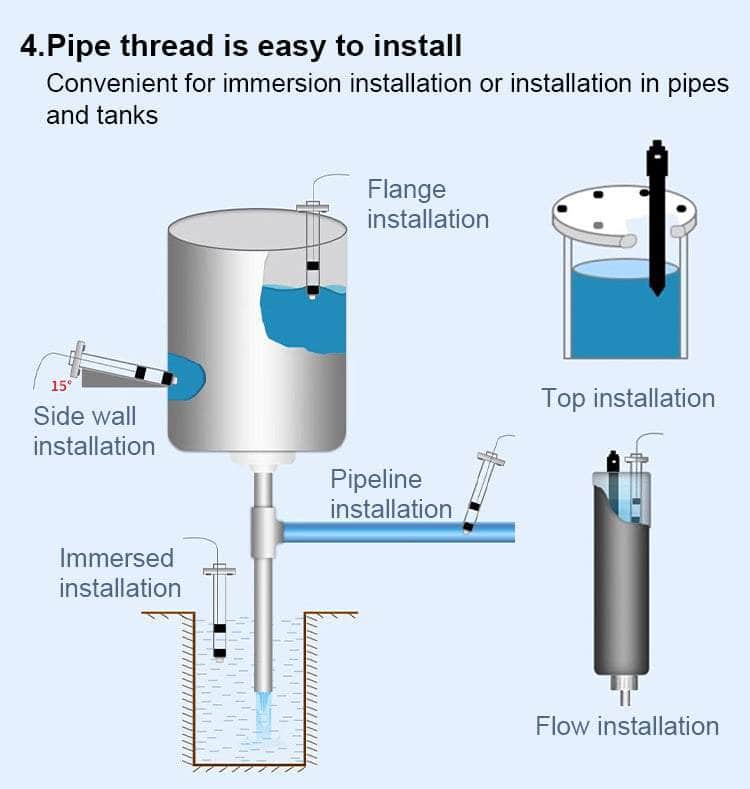

Submersible installation, 3/4" NPT pipe thread
Cable length
5 meters, other lengths can be customized
Calibration method
Two point calibration
Power consumption
0.2W@12V
Protection level
IP68



Documents:

IQPH+ pH Sensor User Guide



IQPH+ Industrial pH Sensor 4-20mA + Modbus RS485 5m Cable Auto Temp Compensation

Product form
Free pickup in our shop(s)

SKU: IQPH+

$499.00 $449.00 Excl. GST

$449.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    IQPH+ Industrial pH Sensor 4-20mA + Modbus RS485 5m Cable Auto Temp Compensation

    The IQPH+ water pH sensor can be used for environmental water quality monitoring, acid/alkali/salt solutions, chemical reaction processes, and industrial production processes, and can meet the requirements for online pH measurement in most industrial applications.

    Technical Specifications:

    model
    IQPH+
    Measuring range
    0~14.00pH
    resolution
    0.01pH
    Accuracy
    ±0.1pH,±0.3
    Operating temperature
    0~65
    Pressure Range
    0~4bar
    Temperature compensation
    Automatic temperature compensation (NTC)
    powered by
    12~24VDC
    Signal output
    4-20mA and RS-485(Modbus/RTU)
    shell material
    Stainless steel
    Installation method
    Submersible installation, 3/4" NPT pipe thread
    Cable length
    5 meters, other lengths can be customized
    Calibration method
    Two point calibration
    Power consumption
    0.2W@12V
    Protection level
    IP68



    Documents:

    IQPH+ pH Sensor User Guide
