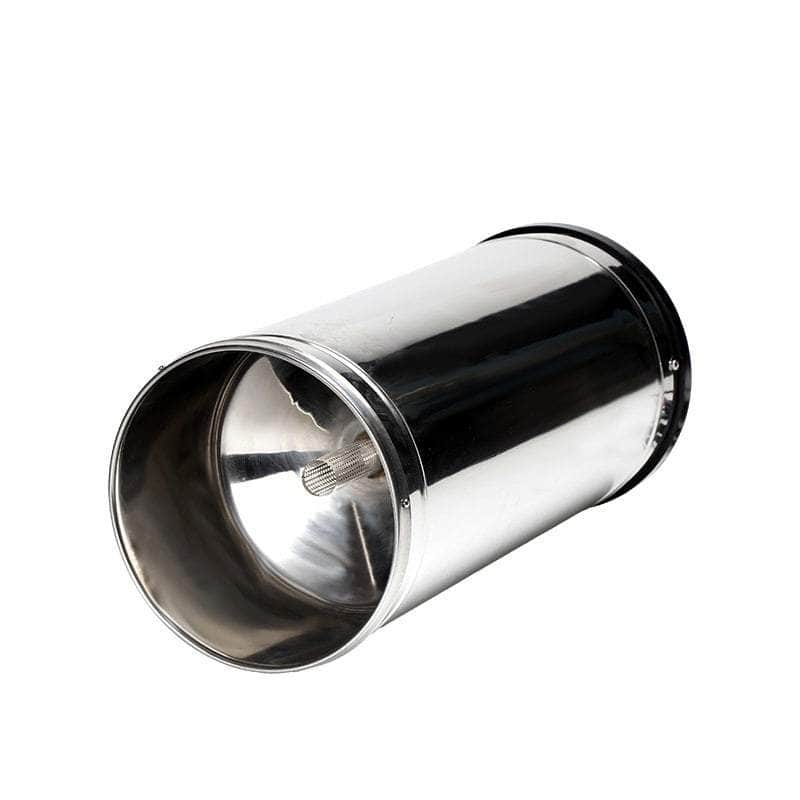

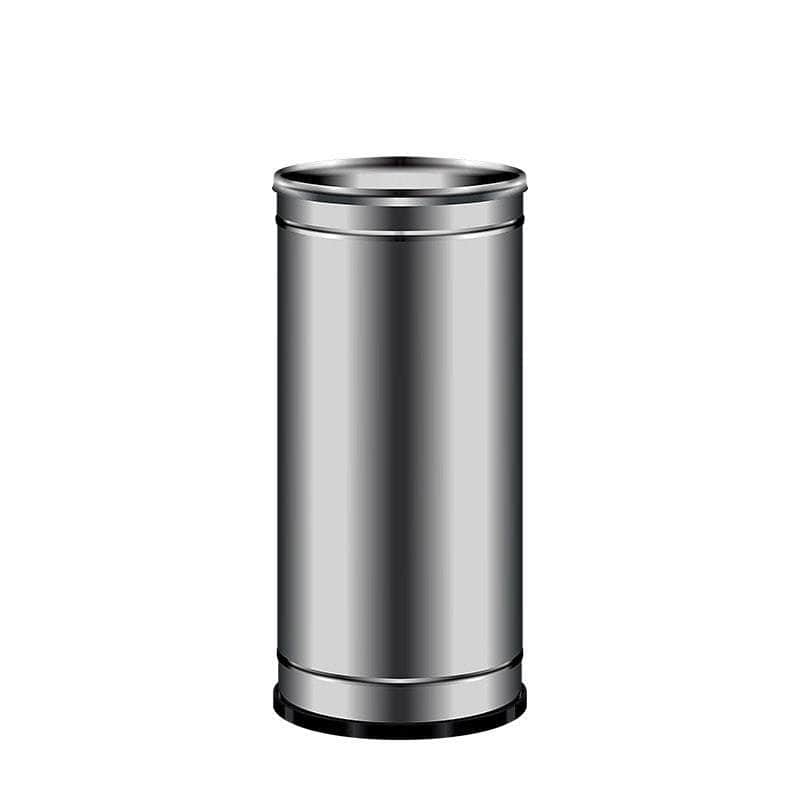

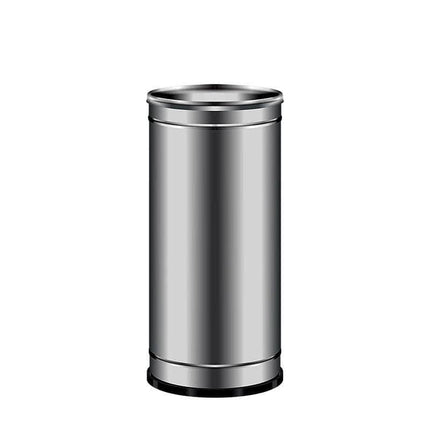

IQRG-TB-SS Industrial Rain Gauge Premium Stainless Steel Tipping Bucket Sensor Modbus RS485
IQRG-TB-SS Rain Gauge uses a premium stainless tipping bucket to detect rainfall and is widely used in meteorological observatories (stations), hydrological stations, agriculture, forestry, national defence and other relevant departments to remotely measure the amount of liquid precipitation, precipitation intensity, and precipitation start and end times. It is used for automatic hydrological forecasting and reporting systems, automatic field forecasting and reporting stations, etc., for the purposes of flood control, water supply dispatching, and power station and reservoir water regime management. clean.
The IQRG-TB-SS tipping bucket rain gauge is adjusted to the best angle. When installation, user just needs to screw up and adjust the bottom horizontally.

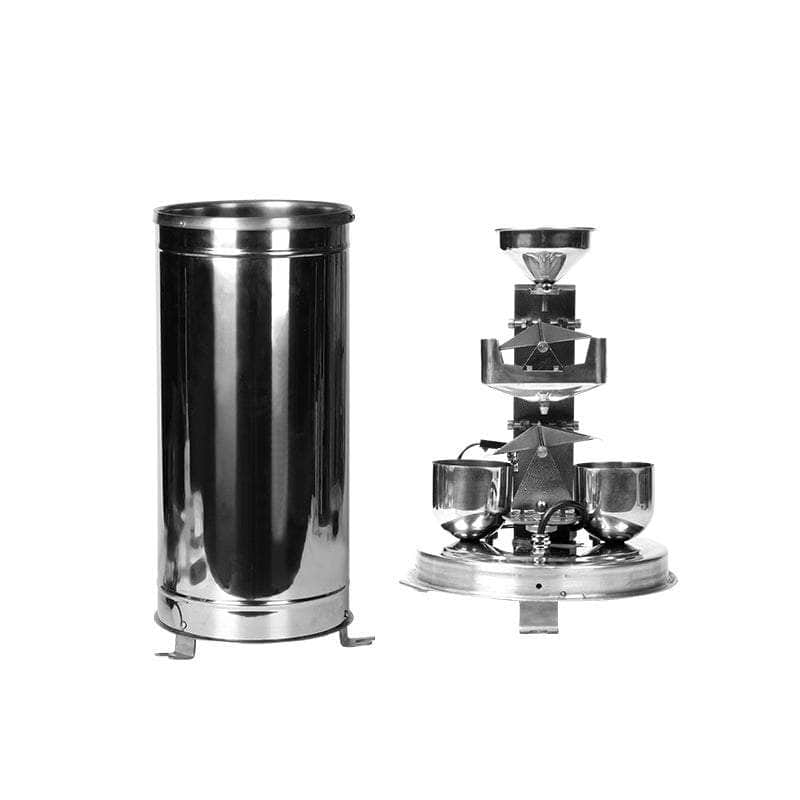

The stainless steel double tipping bucket rain gauge is a primary instrument for measuring precipitation, and its performance meets the requirements of the national standard GB/T11832-2002 "Tipping Bucket Rain Gauge". Adopting the national invention patent, a two-way flap is set above the measuring tipping bucket, which greatly shortens the switching time of the tipping bucket and reduces the measurement error of the instrument to a leading level of ≤±1%, and makes the performance of the instrument more stable.
The stainless steel double tipping bucket rain gauge is a high-sensitivity, high-precision precision rain gauge. The instrument must be cleaned, maintained and inspected regularly during use, otherwise the instrument may become inaccurate and fail. The tipping bucket tilt angle of this product has been adjusted and locked at the optimal tilt position when it leaves the factory. When installing the instrument, you only need to adjust the base level according to the requirements of this manual before it can be put into use. Do not adjust the tipping bucket tilt angle adjustment screw on site. The inner wall of the tipping bucket of the instrument has been treated with special hydrophilicity. During installation and cleaning of the instrument, do not touch or scratch the coating on the inner wall of the tipping bucket with your fingers.
Specifications:
- Rain-bearing diameter: φ200mm; Sharp edge angle: 40°～45°
- Resolution: 0.2mm
- Measurement accuracy: ≤±3%
- Input Power: DC 5~24v
- Signal output: RS485
- Working Temperature: 0℃～70℃
- Test range: ≤4mm / min (Allowed to pass the maximum rain intensity of 8mm / min)
- Power supply:12~24VDC
- 3M cable length
- Dimensions and weight: φ210mm×460mm
