IQSS-THC Soil Temperature and Humidity, Conductivity Sensor, RS485 2m Cable
IQSS-THC soil temperature, humidity and conductivity sensor is suitable for water-saving agricultural irrigation, weather monitoring, environmental monitoring, greenhouses, flowers and vegetables, grassland and pastures, soil speed measurement, plant cultivation, scientific experiments, etc. soil temperature, humidity and salinity.
Features:
- Real-time temperature, humidity and salinity monitoring function, which can measure the temperature and salt content of soil at different depths
- Good sealing, can be directly buried in soil, and is not corroded
- High measurement accuracy, reliable performance, fast response speed, and high data transmission efficiency
- Less affected by quality, wide range of applications
Technical Parameters:
| Measurement parameters |
Soil temperature, soil volume water content, soil conductivity (EC value) |
| Temperature range |
−30~85℃ |
| Water content range |
0~100% |
| Salt range |
0~20mS/cm |
| Measurement accuracy |
Temperature: ±0.5℃; Humidity: ±3% (0~50%), ±5% (51~100); Conductivity: ±3% |
| Resolution |
Temperature: ±0.1℃; Humidity: ±0.1% (0~50%), ±1% (51~100); Conductivity: 10us/cm |
| Output signal |
Rs485 (standard Modbus-RTU protocol, device default address: 01) |
| Supply voltage |
12~24VDC |
| Scope of work |
−40℃~80℃ |
| Stable schedule |
3 seconds after power on |
| Response time |
≤1 second |
| Sealing material |
ABS engineering plastic, epoxy resin |
| Probe Length |
55mm |
| Probe diameter |
3mm |

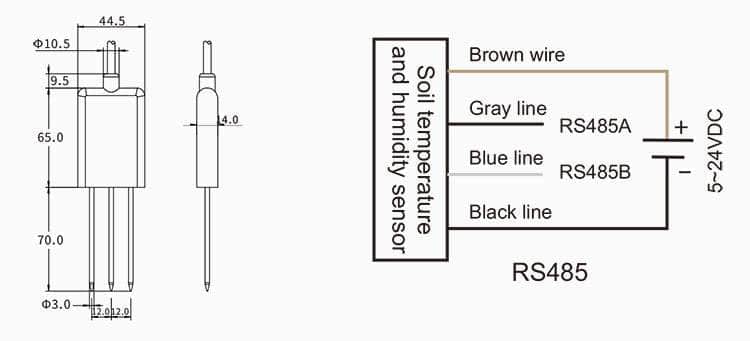

| Electrical connection |
Direct lead |
IQSS-THC-M User Guide
