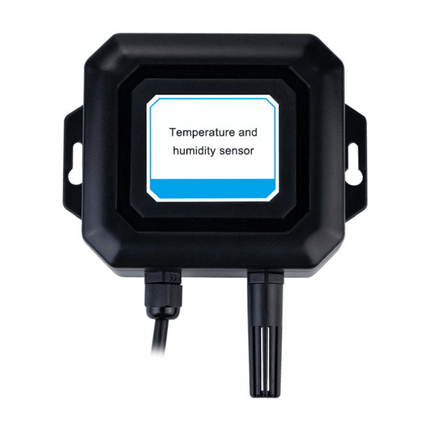

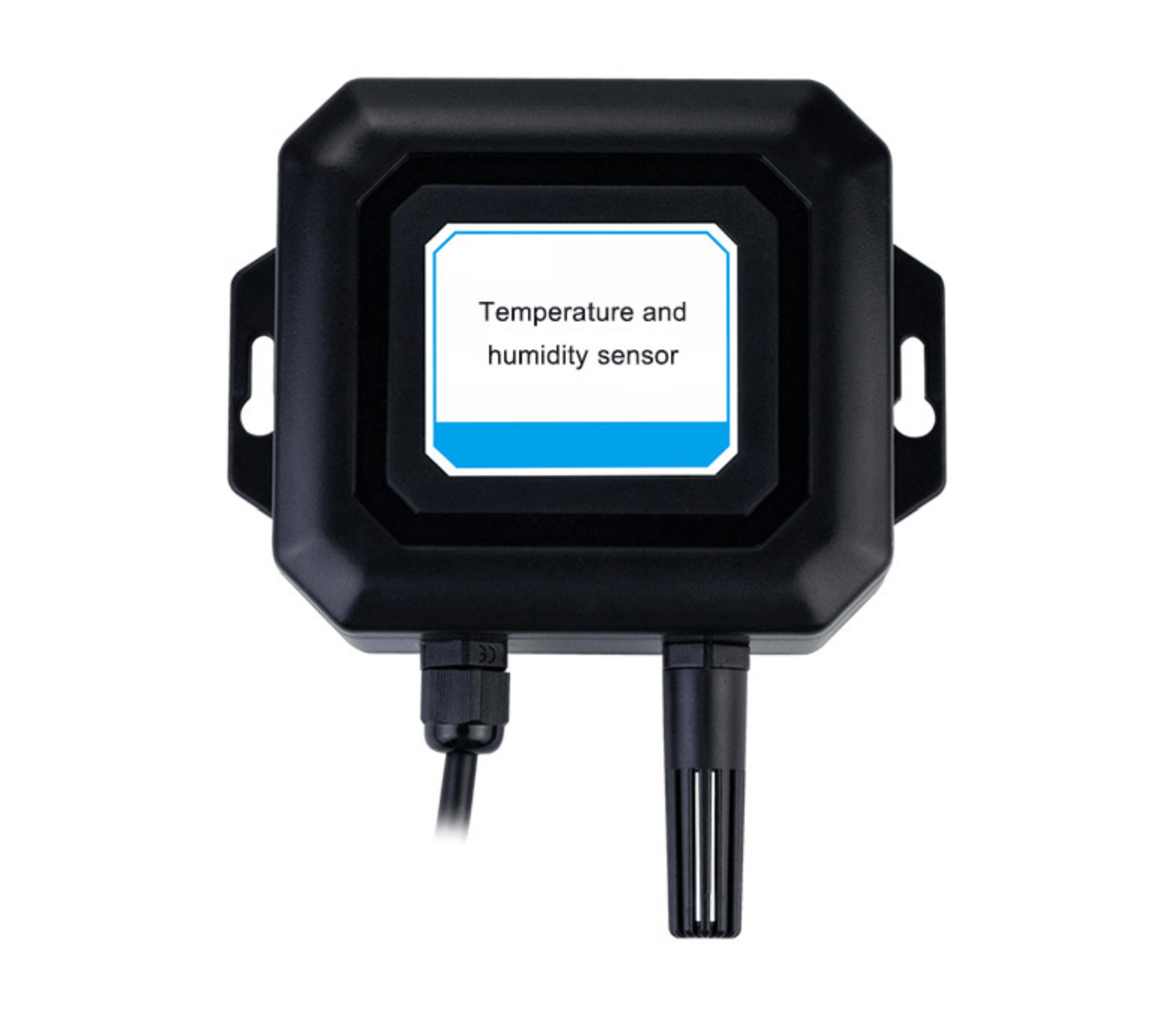

IQTH Industrial Temperature and Humidity Sensor RS485, 2m Cable

Description

IQTH Industrial Temperature and Humidity Sensor RS485, 2m Cable

IQTH is a popular Industrial Temperature and Humidity Sensor. It is widely used in building automation, climate and HVAC signal acquisition, greenhouses, and pharmaceutical and chemical industries.

Technical Specifications:

 Measuring range  Measuring temperature: -40~+80℃,-40~+120℃ (external probe)
 Measuring humidity: 0%~100%RH
 Output signal

 RS485 output (Modbus protocol)

Optional: 4~20mA/0~5VDC/0~10VDC

 Supply voltage  10~30VDC (0~10VDC output, limited to 24VDC)
 Maximum power   consumption  Digital signal: 0.4W,Analog signal: 1.2W
 Precision  Temperature: ±0.5°C (25°C)     Humidity: ±3%RH (5%RH~95%RH, 25°C)
 Resolution  Temperature: 0.1℃     Humidity: 0.1%RH
 Long-term stability (1 year)  Temperature: ≤0.1℃/year     Humidity: ≤0.1%RH/year
 Response time  Temperature: ≤18/s (1m/s wind speed)     Humidity: ≤6 seconds (1m/s   wind speed)
 Device address  1~255 can be set, the default is 1
 Device baud rate

 2400, 4800, 9600, 19200, 38400, 57600, 115200 are optional, the default

 is 9600

 Byte format  1 start bit, 8 data bits, 1 stop bit, no parity
 Electrical connections  Direct lead





IQTH Industrial Temperature and Humidity Sensor RS485, 2m Cable

Product form
Free pickup in our shop(s)

SKU: IQTH-M

$129.00 $99.00 Excl. GST

$129.00 $99.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description

    IQTH Industrial Temperature and Humidity Sensor RS485, 2m Cable

    IQTH is a popular Industrial Temperature and Humidity Sensor. It is widely used in building automation, climate and HVAC signal acquisition, greenhouses, and pharmaceutical and chemical industries.

    Technical Specifications:

     Measuring range  Measuring temperature: -40~+80℃,-40~+120℃ (external probe)
     Measuring humidity: 0%~100%RH
     Output signal

     RS485 output (Modbus protocol)

    Optional: 4~20mA/0~5VDC/0~10VDC

     Supply voltage  10~30VDC (0~10VDC output, limited to 24VDC)
     Maximum power   consumption  Digital signal: 0.4W,Analog signal: 1.2W
     Precision  Temperature: ±0.5°C (25°C)     Humidity: ±3%RH (5%RH~95%RH, 25°C)
     Resolution  Temperature: 0.1℃     Humidity: 0.1%RH
     Long-term stability (1 year)  Temperature: ≤0.1℃/year     Humidity: ≤0.1%RH/year
     Response time  Temperature: ≤18/s (1m/s wind speed)     Humidity: ≤6 seconds (1m/s   wind speed)
     Device address  1~255 can be set, the default is 1
     Device baud rate

     2400, 4800, 9600, 19200, 38400, 57600, 115200 are optional, the default

     is 9600

     Byte format  1 start bit, 8 data bits, 1 stop bit, no parity
     Electrical connections  Direct lead
