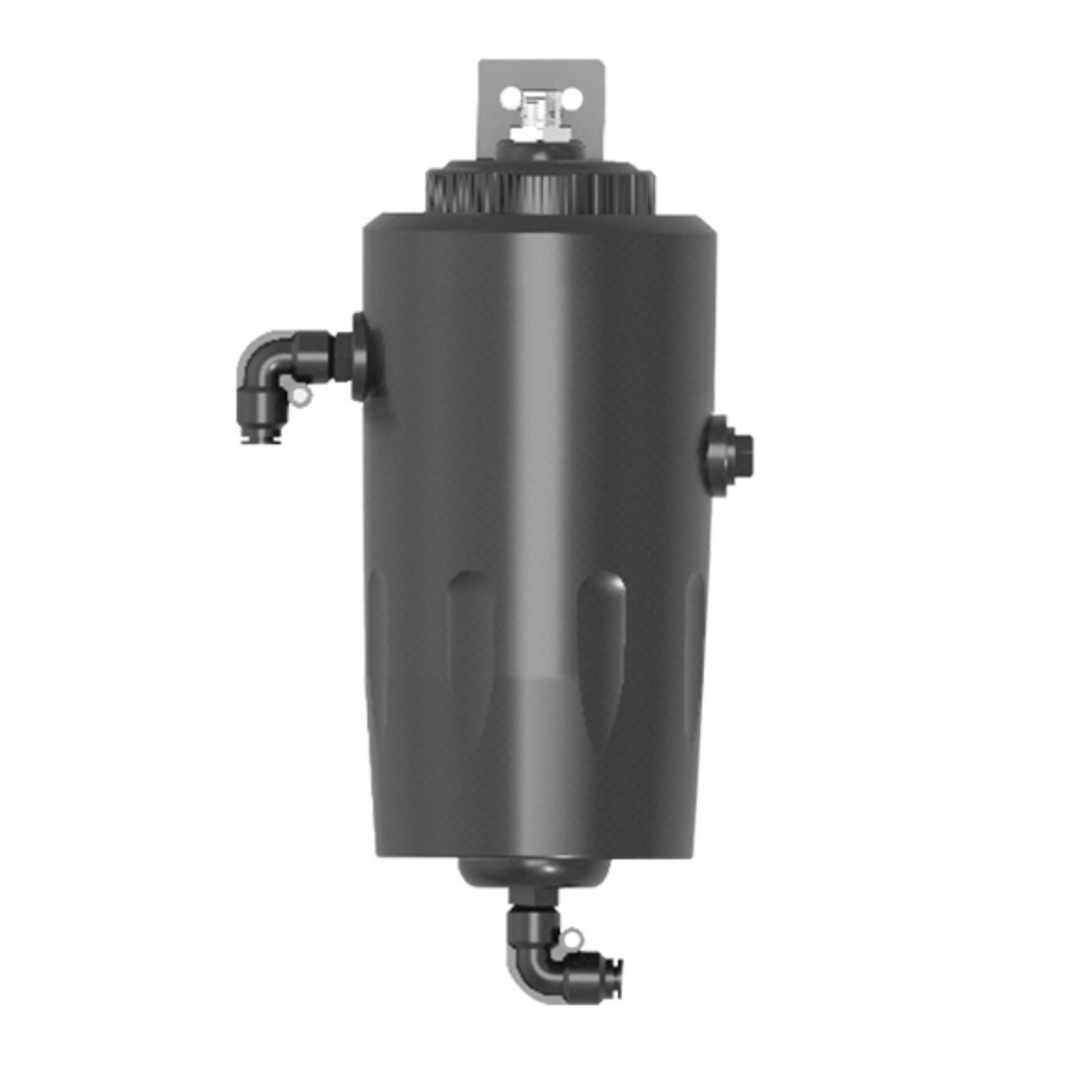

IQTS Smart Laser Turbidity Sensor 4-20mA, 5m Cable
Laser turbidity sensors measure the number and size of suspended particles in water and are used to assess water clarity and particulate contamination. They play a key role in drinking water treatment, environmental monitoring, and river flow measurement.
Laser turbidity sensors are widely used in water quality monitoring institutions such as water plants, sewage treatment plants, food industry, aquaculture, and environmental monitoring stations.
Application scope:
- Metallurgy, power, pharmaceutical, chemical, petroleum;
- Water quality treatment, food and other industries.
Technical Parameters:
| Turbidity measurement range |
0 - 5 NTU |
| Resolution |
0.01% |
| Measurement accuracy |
±1.0%FS |
| Temperature measurement range |
0...80℃ |
| Resolution |
0.1℃ |
| Temperature measurement accuracy |
±0.2 ℃ |
| Withstand voltage range |
0... 3bar |
| Shell material |
ABS |
| Power |
≤10W |
| Current signal output |
4-20mA (RS485 optional) |
| Current accuracy |
1%FS |
| Output load |
Less than 750 Ω |
| Working power |
9~30VDC(12VDCrecommended) |
| Working humidity |
Relative humidity<90% |
| Electricalconnections |
Direct leadwith 5 meter cable |
| Protection class |
IP68 |
