IR Sense click - MikroElektronika Compact Infrared-Ray (IR) Sensor

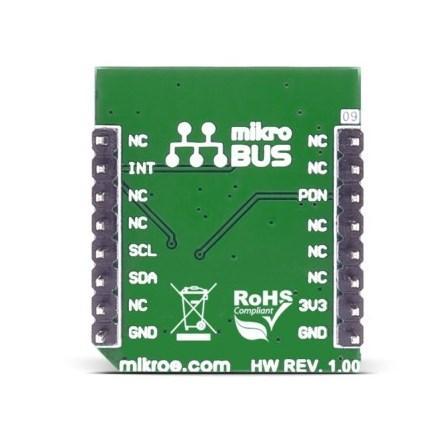

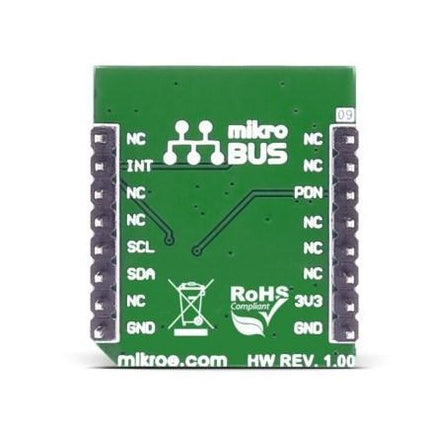

IR Sense click carries the AK9750 quantum-type IR sensor. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over I2C interface, with additional functionality provided by the INT pin on the mikroBUS™ line.
IR Sense cilck detects the temperature of objects and people in motion. It can also detect a human body that remains still. So, it distinguishes heat regardless of the fact whether or not an object is moving.
AK9750 features
The AK9750 is an ultra-low power and compact infrared-ray (IR) sensor module. It is composed of four quantum IR sensors and an integrated circuit (IC) for characteristic compensation.
An integral analog-to-digital converter provides 16-bits data outputs. Additional integrated features include a field of view limiter and an optical filter.
How it works
The IR sensors are arranged as shown. Each sensor detects the diagonal area, as indicated in the image below:

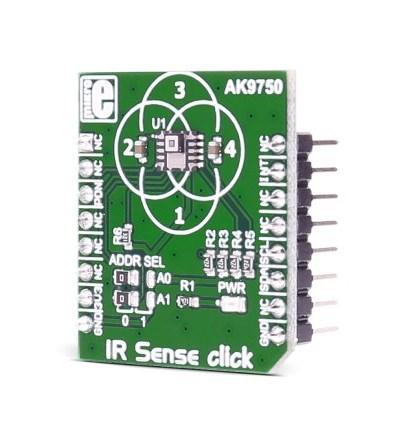

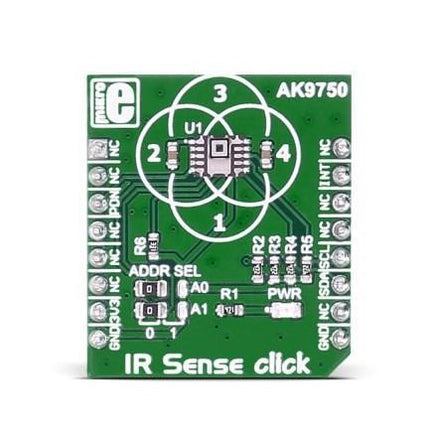

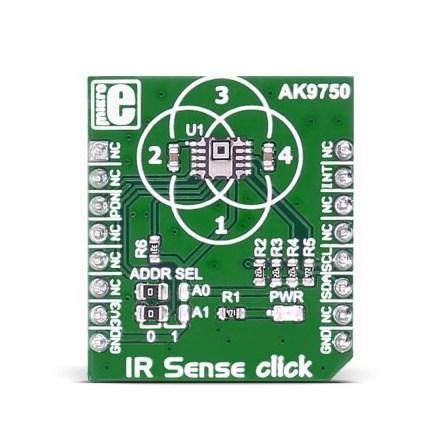

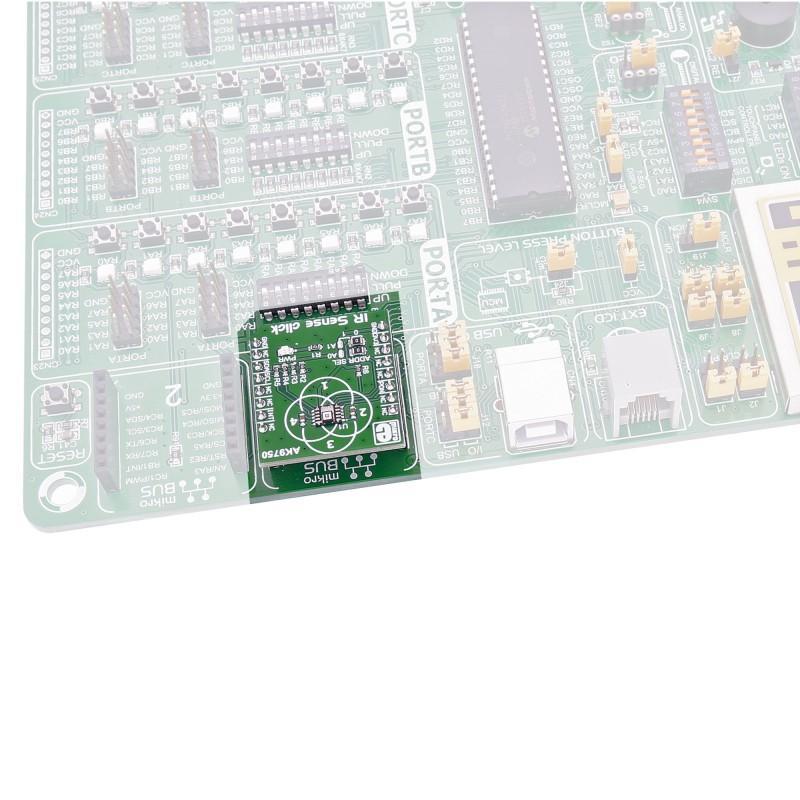

The observable area of the four sensors is as you see it on the silk of the IR Sense click board™.
Specifications
| Type |
Temperature,Humidity |
| Applications |
Detecting heat with the four IR sensors |
| On-board modules |
AK9750 IR sensor |
| Key Features |
Low current consumption: Max. 1µA in Power down Mode; Integrated temperature sensor, 16-bits Digital Outputs to I2C bus |
| Interface |
I2C |
| Input Voltage |
3.3V |
| Click board size |
S (28.6 x 25.4 mm) |
