Description



ISCCB-2 Electrically Isolated EZO Carrier Board - Atlas Scientific

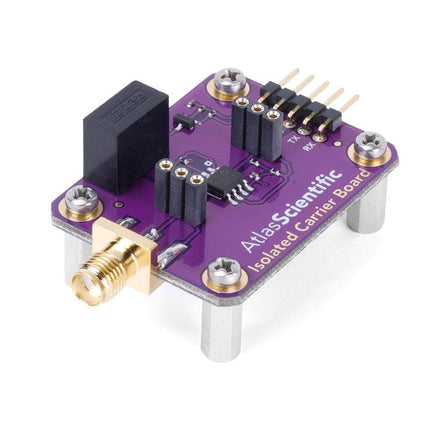

This carrier board utilizes the newest isolation technology, giving us the ability to put isolation into smaller footprint circuits. The Electrically isolated EZO™ carrier board is an efficient way to connect to one Atlas Scientific circuit to your CPU, eliminating the need for a bread board and external isolator. The five pins on top are left open for you to decide how to connect it to your system.

Data input UART or I2C
Voltage input 3.0V − 5.0V
Probe connector Female SMA
Current consumption 5V – 28 mA
3.3V – 22 mA
Power saving mode (OFF pin) 2.6mA

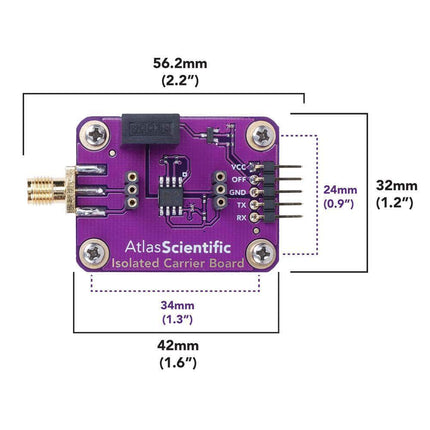

Carrier Board dimensions 56.2mm x 32mm (2.2″ x 1.2″)
Weight 25 grams

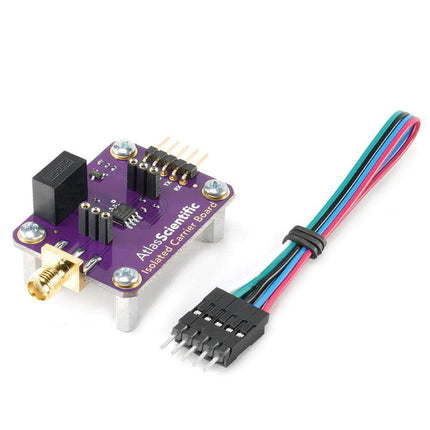

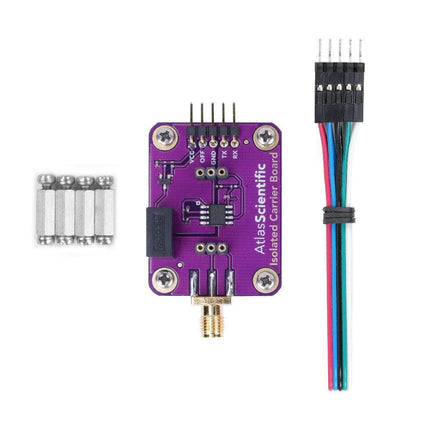

This carrier board comes with (4) standoffs & screws, (1) 5 pin jumper cable, and (1) 5 pin male header.

The Electrically Isolated EZO™ Carrier Board does not come with EZO™ class devices.

Download


ISCCB-2 Electrically Isolated EZO Carrier Board - Atlas Scientific

Product form
Free pickup in our shop(s)

SKU: ISCCB-2

$89.00 $69.00 Excl. GST

$69.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    ISCCB-2 Electrically Isolated EZO Carrier Board - Atlas Scientific

    This carrier board utilizes the newest isolation technology, giving us the ability to put isolation into smaller footprint circuits. The Electrically isolated EZO™ carrier board is an efficient way to connect to one Atlas Scientific circuit to your CPU, eliminating the need for a bread board and external isolator. The five pins on top are left open for you to decide how to connect it to your system.

    Data input UART or I2C
    Voltage input 3.0V − 5.0V
    Probe connector Female SMA
    Current consumption 5V – 28 mA
    3.3V – 22 mA
    Power saving mode (OFF pin) 2.6mA
    Carrier Board dimensions 56.2mm x 32mm (2.2″ x 1.2″)
    Weight 25 grams



    This carrier board comes with (4) standoffs & screws, (1) 5 pin jumper cable, and (1) 5 pin male header.

    The Electrically Isolated EZO™ Carrier Board does not come with EZO™ class devices.

    Download
