Description

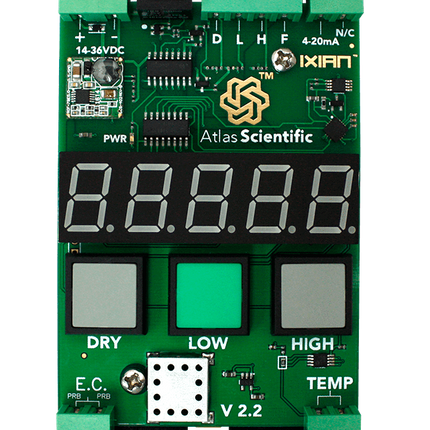

IXIAN™ Conductivity Transmitter - Atlas Scientific
Those of us who work with PLCs clearly understand both the power and limitations of industrial computers. Modern low voltage elections and communication protocols aren’t easily compatible with PLCs. Fortunately, the Atlas Scientific IXIAN Conductivity transmitter makes it easy to get high accuracy conductivity readings on your PLC for less than half the price of comparable devices on the market today.
The IXIAN™ class Conductivity Transmitter is Atlas Scientific premier technology designed exclusively for industrial processes. Operation, calibration and communication is both fast and easy. The IXIAN™ class Conductivity Transmitter is ready for 24 hour/365 day operation with no downtime. From cash crop growing to chemical manufacturing, the IXIAN™ class Transmitter will ensure that your process yields profitable results.
• 4 – 20mA output
• Full E.C. range from 0.07 μS/cm to 100,000+ μS/cm
• Calibrate remotely through a PLC or directly on the board
• Onboard μS display
• Din rail mount
• Self-test on startup
• Automatic fault detection
• Wide operating voltage (14 VDC to 36 VDC)
• PT-100 / PT-1000 temperature probe compatible
• Works with any two lead E.C. probe (K 0.01, K 0.1, K 1.0, K10)
• Fully electrically isolated for noise immunity
| Reads |
Conductivity |
| Range |
0.07μS – 100,000μS |
| Accuracy |
+/– 2% |
| Calibration |
1 or 2 point
(remotely though PLC or directly on board)
|
| Supported probes |
Any two lead conductivity probe
(K 0.01, K 0.1, K 1.0, K 10)
|
| Temp probe |
PT-100 or PT-1000 |
| Auto temp compensation |
Yes |
| Mount |
35mm Din rail |
| Output |
4 − 20mA |
| Operating voltage |
9VDC − 36VDC |
| Electrically isolated |
Yes |
