IXIAN™ pH Transmitter - Atlas Scientific

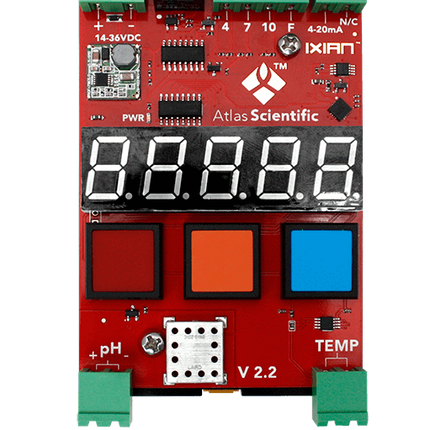

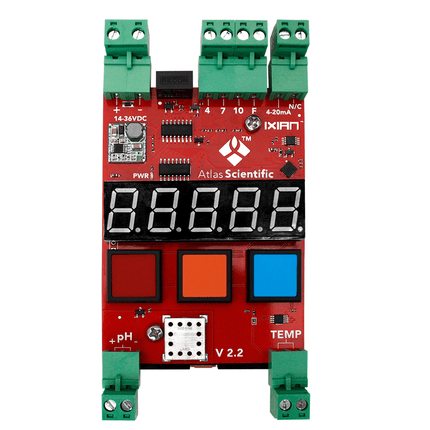

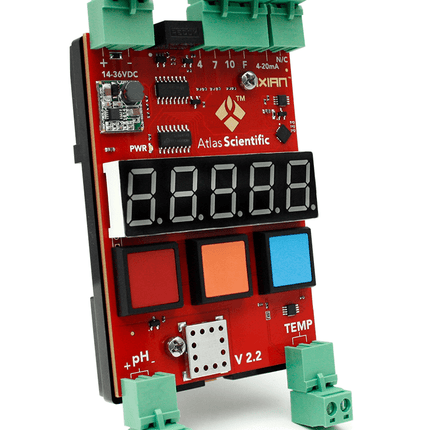

Designed with PLCs in mind, the Atlas Scientific IXIAN™ pH transmitter is a simple to use pH transmitter that gets right to the point, reading pH.
The DIN rail mount and wide operating voltage make it easy to install. The 4-20mA data output and display makes it easy to read. And the simple calibration protocol gets you up and running in no time.
- pH Transmitter is premier technology designed for industrial processes. Operation, calibration and communication are both fast and easy. pH Transmitter is ready for 24 hours/ 365-day operation with no downtime. pH Transmitter provides the combination of durability, accuracy, and versatility required for virtually any pH monitoring application.

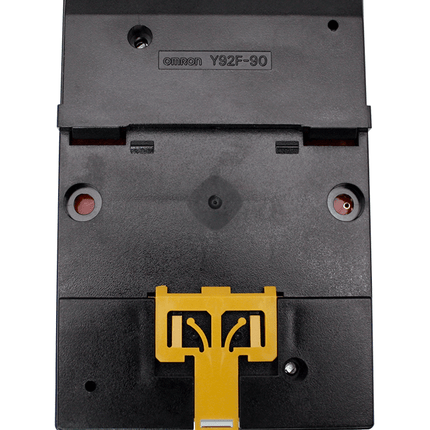

- pH Transmitter is specifically designed to be mounted to 35mm Din rail. pH Transmitter works with any two lead pH probe & temperature probe. PT100 / PT1000 temperature probe is compatible with a transmitter. pH Transmitter will automatically perform temperature compensation when a PT100 or PT1000 temperature probe is connected to the device.
- pH Transmitter has a flexible calibration protocol, allowing for the single point, two points, or three-point calibration. Calibration can be done on the board itself, or through the PLC using the input lines marked “4”, “7” and “10”.
- pH Transmitter measure Full range pH reading from .001 to 14.000 & Accurate pH readings down to the thousands place (+/- 0.02). Wide operating voltage (14 VDC to 36VDC), pH Transmitter is fully electrically isolated for noise immunity.
- 4 – 20mA output, PLC is receiving the most accurate 4-20 mA signal the current output from the pH Transmitter can be adjusted. The 4mA signal and the 20mA signal can both be adjusted independently
