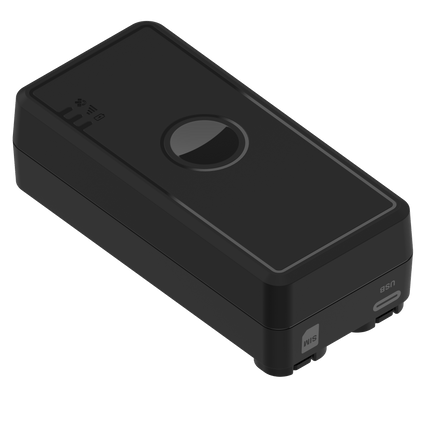

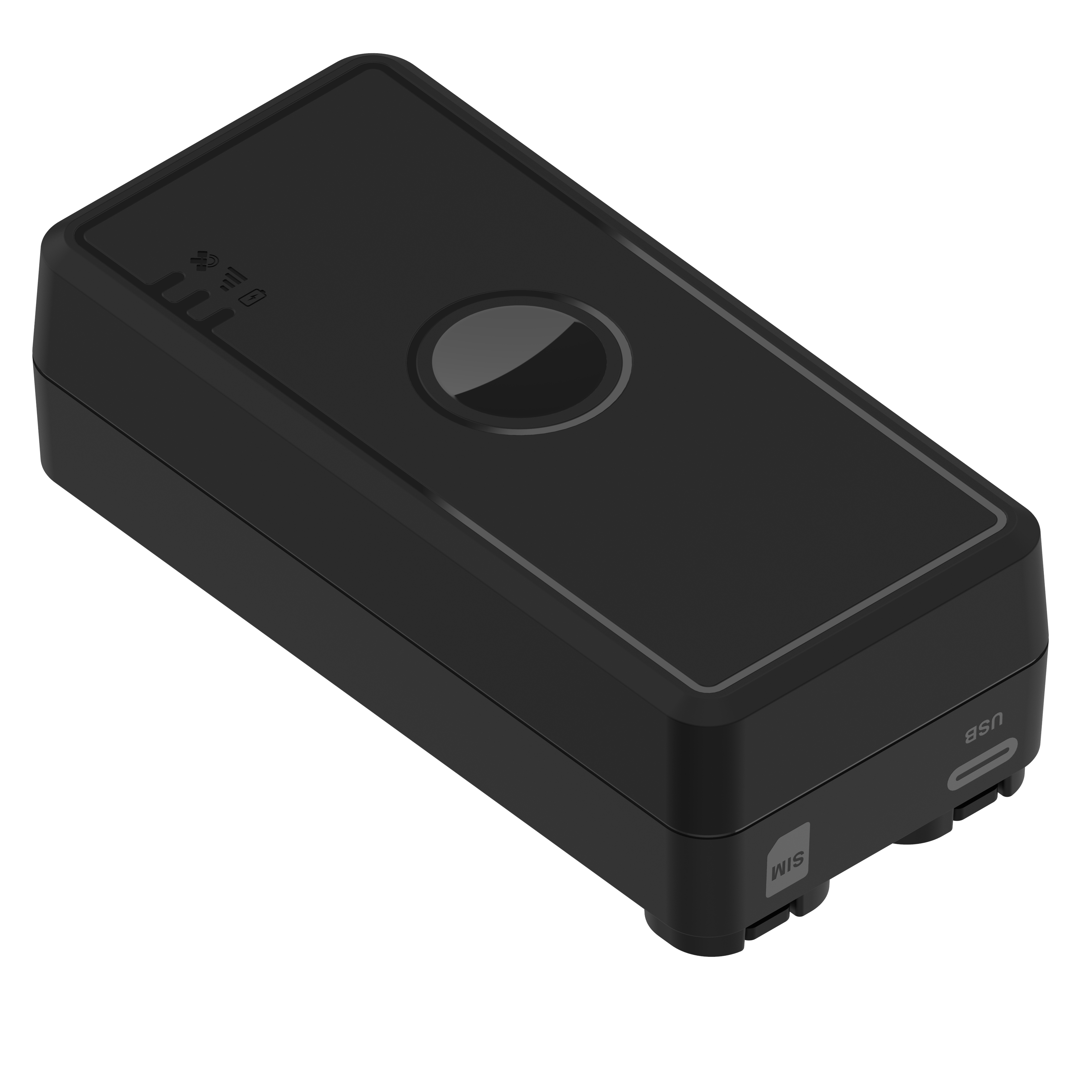

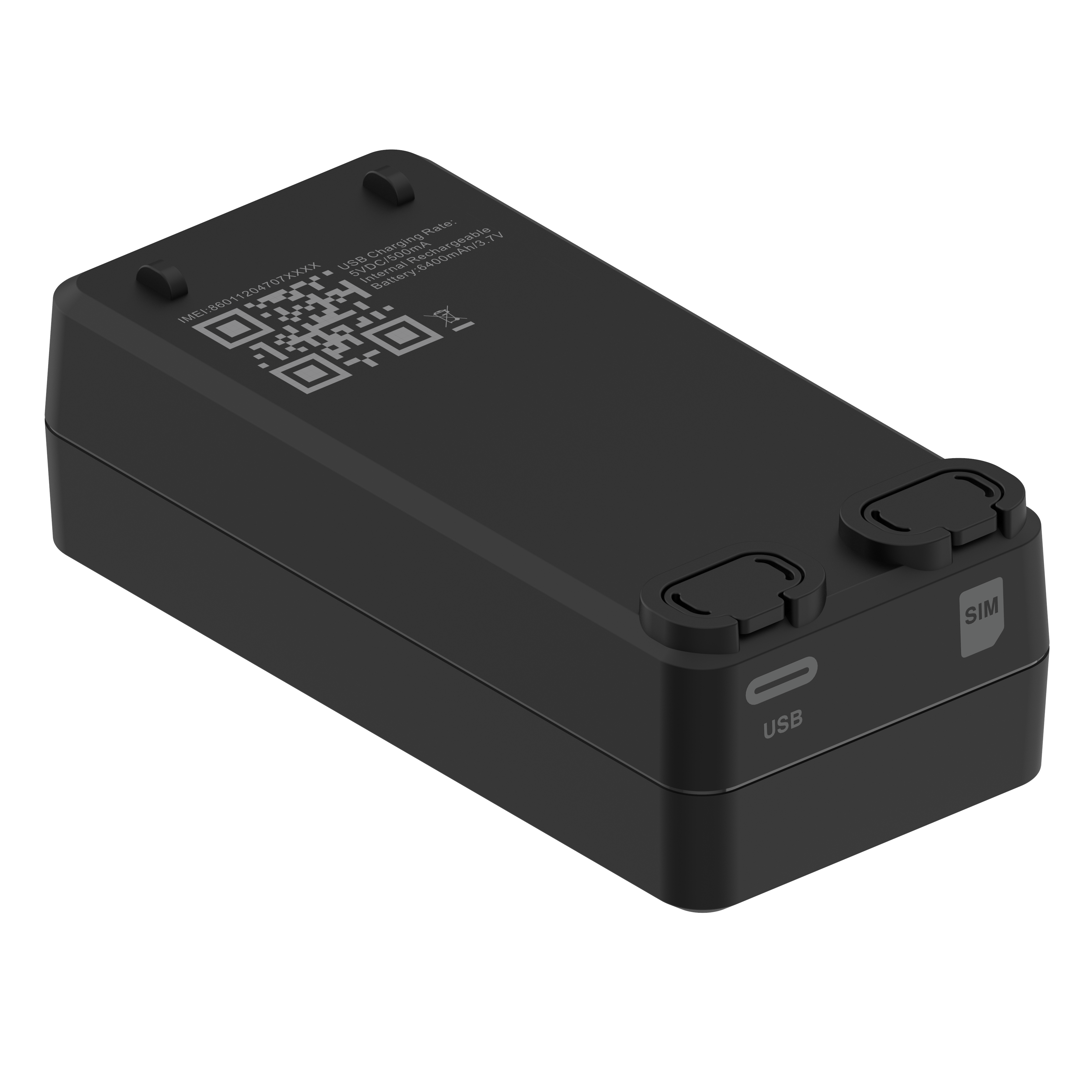

KnightX 4G Cellular Asset Tracker GNSS Rechargeable Battery with Panic Button IP67 BLE
The KnightX 4G Cellular Asset Tracker is a compact, high-performance GNSS tracking device designed for real-time monitoring of valuable assets, vehicles, cargo, and personnel. Equipped with 4G LTE connectivity, multi-GNSS positioning, Bluetooth 5.1, and Wi-Fi positioning, the KnightX delivers reliable tracking accuracy and seamless data transmission to cloud platforms such as IQFLOW or other IoT platforms.
With its rugged IP67 waterproof enclosure, long-life rechargeable battery, and built-in panic button, the KnightX is ideal for demanding environments including logistics, fleet management, equipment monitoring, and security applications. The device also supports BLE wireless sensors, enabling monitoring of temperature, humidity, door status, and other environmental conditions.
Key Features
Real-Time Multi-GNSS Tracking
Supports GPS, GLONASS, Galileo, Beidou, and QZSS satellite systems to deliver high-accuracy location tracking with fast positioning times.
4G LTE Connectivity
Reliable 4G LTE cellular Cat-1 or Cat-M1 communication ensures continuous data transmission to IoT platforms with support for TCP, UDP, MQTT, and SMS protocols.
Long Battery Life
Powered by a 6400 mAh rechargeable lithium battery, the tracker can operate for extended periods depending on reporting frequency.
Typical standby performance:
-
Up to 134 days with 10-minute reporting
-
Up to 88 days with 5-minute reporting
-
Up to 71 days with 1-minute reporting
Rugged IP67 Waterproof Design
Designed for harsh environments, the device features a dustproof and waterproof IP67 enclosure, suitable for outdoor deployment.

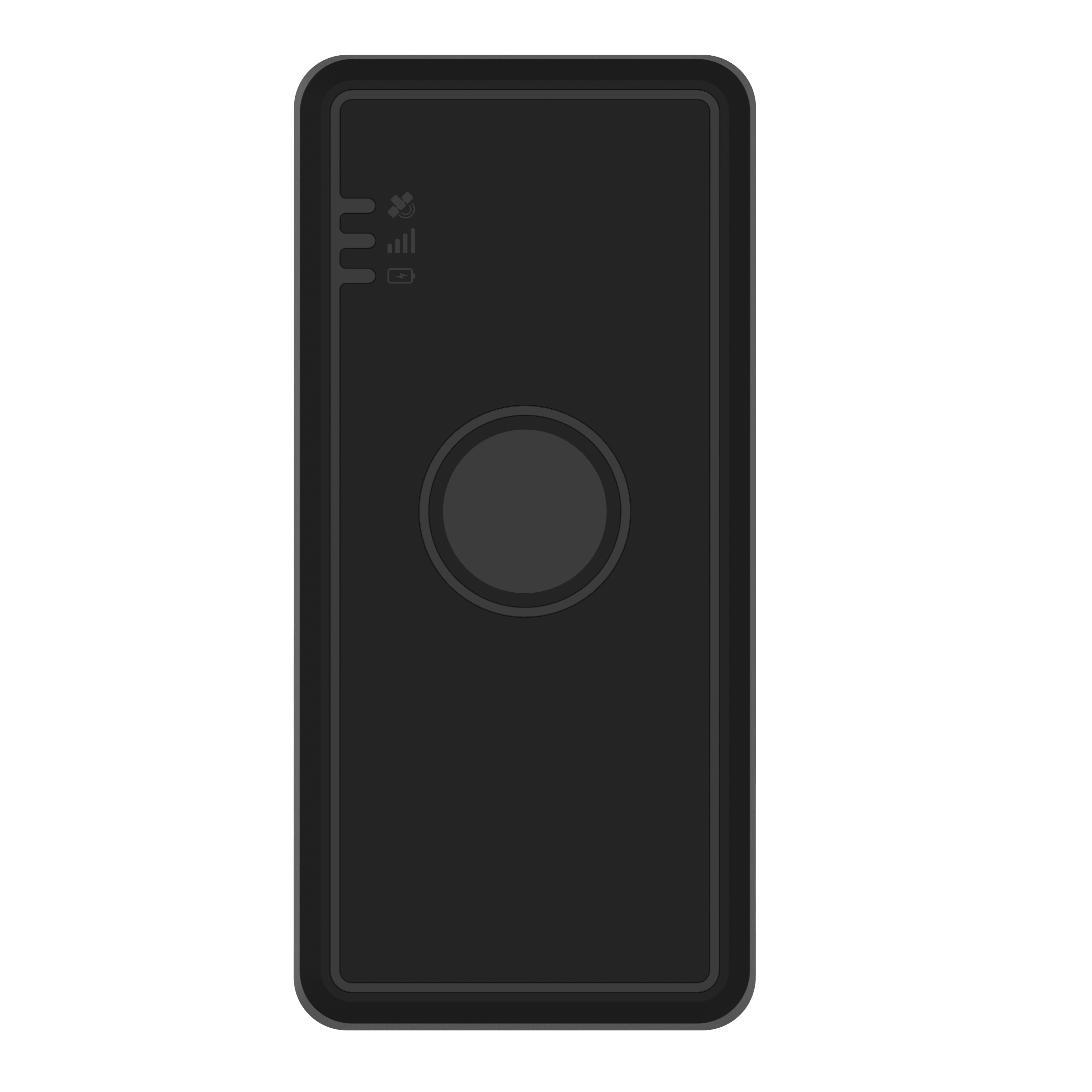

Panic / SOS Button
An integrated panic button allows users to send immediate emergency alerts to the monitoring platform.
BLE 5.1 Sensor Integration
Supports Bluetooth Low Energy sensors for additional monitoring, such as:
-
Temperature
-
Humidity
-
Door status
-
Environmental conditions
Up to 50 BLE devices can be connected simultaneously.
Wi-Fi Assisted Positioning
Improves location accuracy in indoor or dense urban environments where GNSS signals may be limited.
Intelligent Power Management
Built-in power management algorithm optimises battery life by adjusting reporting frequency when battery levels are low.
Firmware Over-The-Air (FOTA)
Remote firmware updates ensure devices remain secure and up-to-date without physical access.
Typical Applications
The KnightX tracker is designed for a wide range of asset tracking applications, including:
-
Cargo and shipment tracking
-
Vehicle and fleet management
-
Construction equipment monitoring
-
Personal safety and lone worker protection
-
Cold chain monitoring with temperature sensors
-
Container and logistics tracking
-
Rental equipment monitoring
Technical Specifications
| Specification |
Details |
| Cellular Network |
LTE Cat-1 / LTE-M (model dependent) + GSM fallback |
| GNSS |
GPS / GLONASS / Galileo / Beidou / QZSS |
| Position Accuracy |
< 1.5 m CEP |
| Connectivity Protocols |
TCP, UDP, MQTT, SMS |
| BLE |
Bluetooth 5.1 |
| Internal Sensors |
Accelerometer, temperature sensor |
| Optional Sensors |

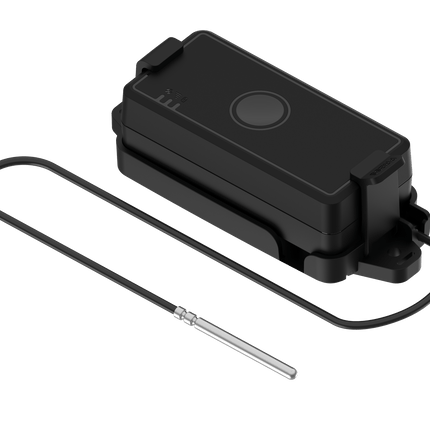

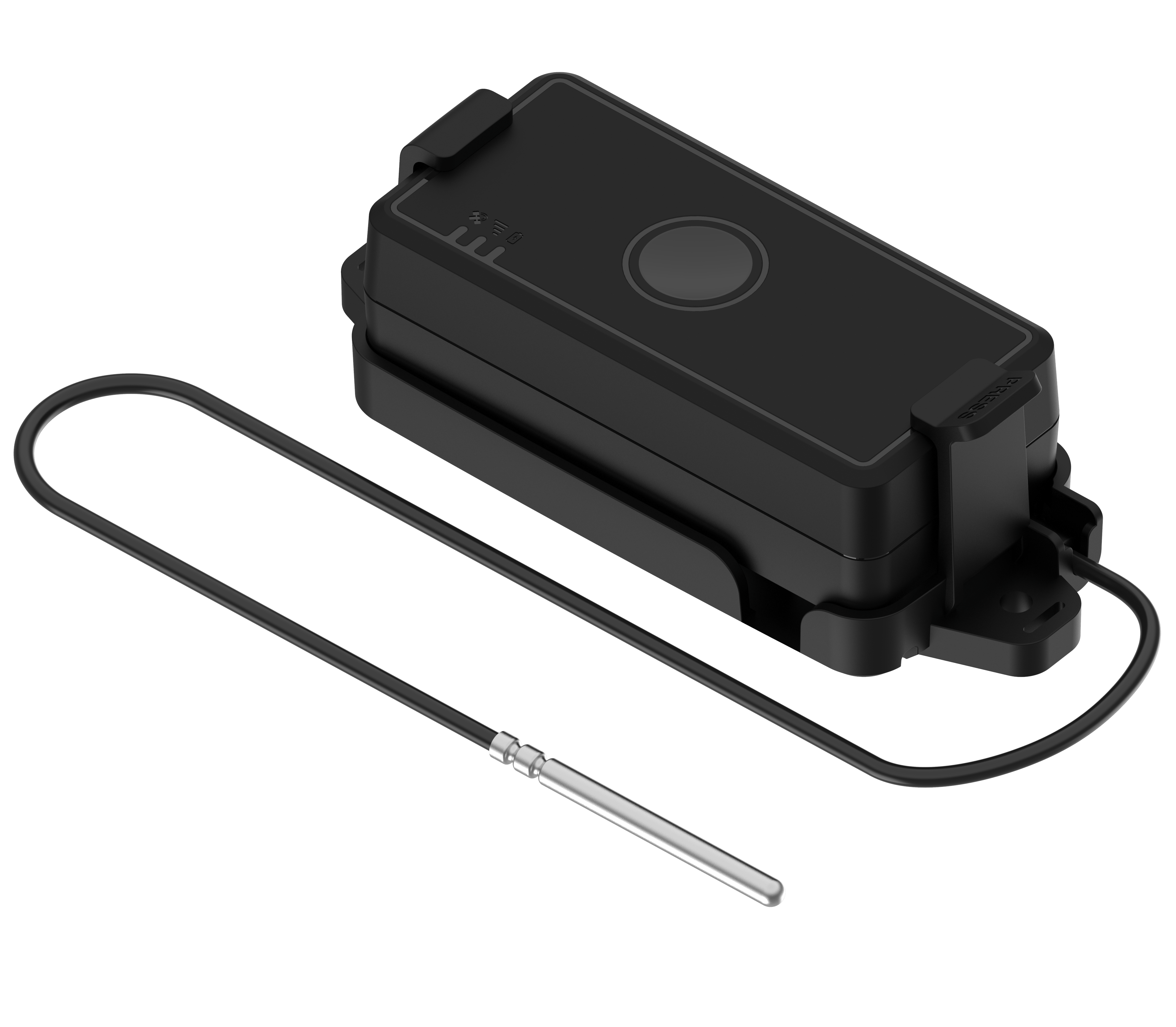

External temperature probe |
| Battery |

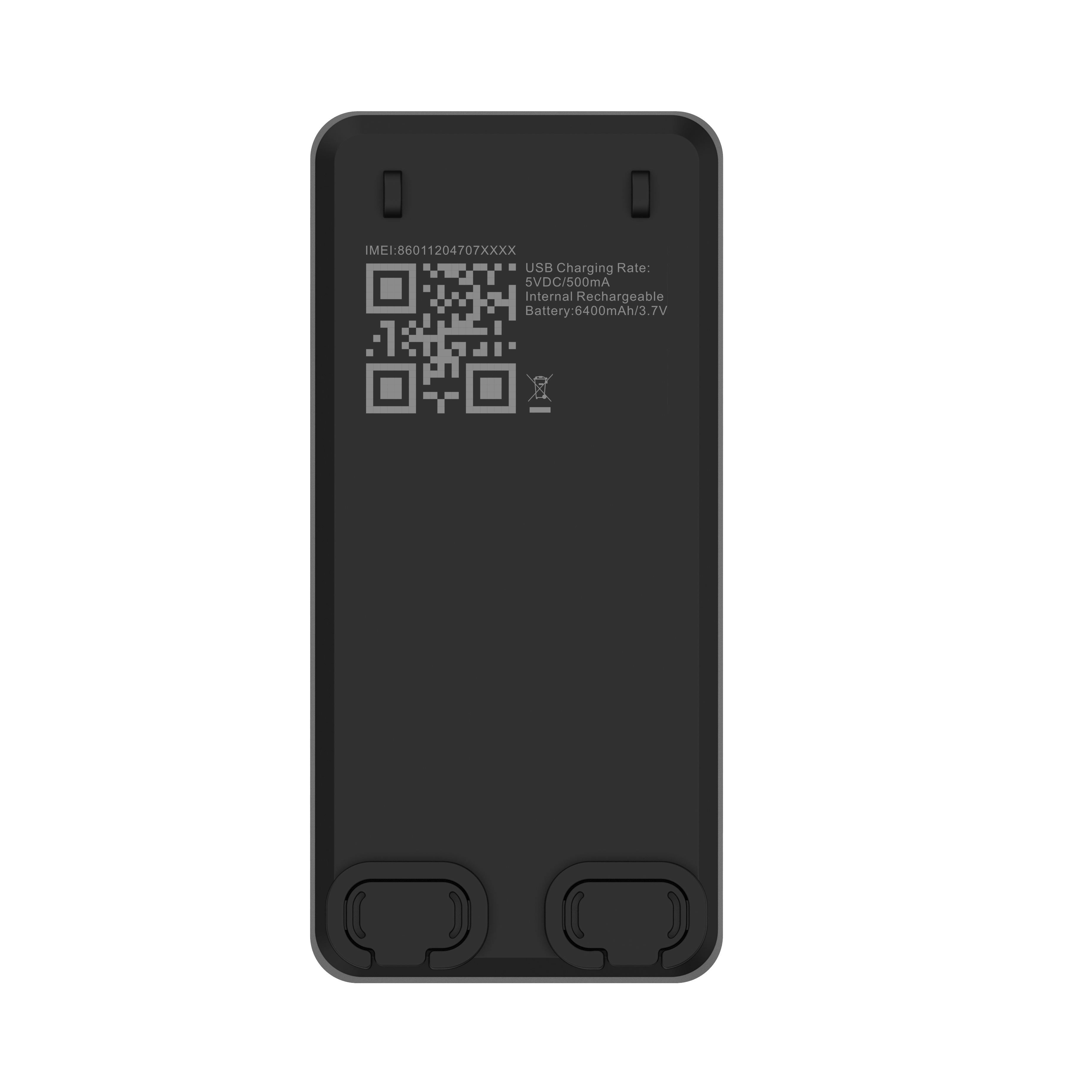

6400 mAh rechargeable lithium battery |
| Charging |
5V DC via USB-C |
| Waterproof Rating |
IP67 |
| Dimensions |
91.8 × 43.5 × 29.2 mm |
| Weight |
165 g |
| Operating Temperature |
-20°C to +80°C |
| Security |
MD5 / AES encryption supported |
Key Benefits
✔ Long battery life for remote asset monitoring
✔ Accurate multi-GNSS positioning
✔ Rugged waterproof design for outdoor deployment
✔ Supports wireless IoT sensors via BLE
✔ Real-time alerts, including panic button and motion detection
✔ Compatible with IoT platforms, including IQFLOW cloud
Resources:
KnightX 100 User Manual
KnightX 300 User Manual
KnightX 100 Flyer
KnightX 300 Flyer
Configuration Tool
