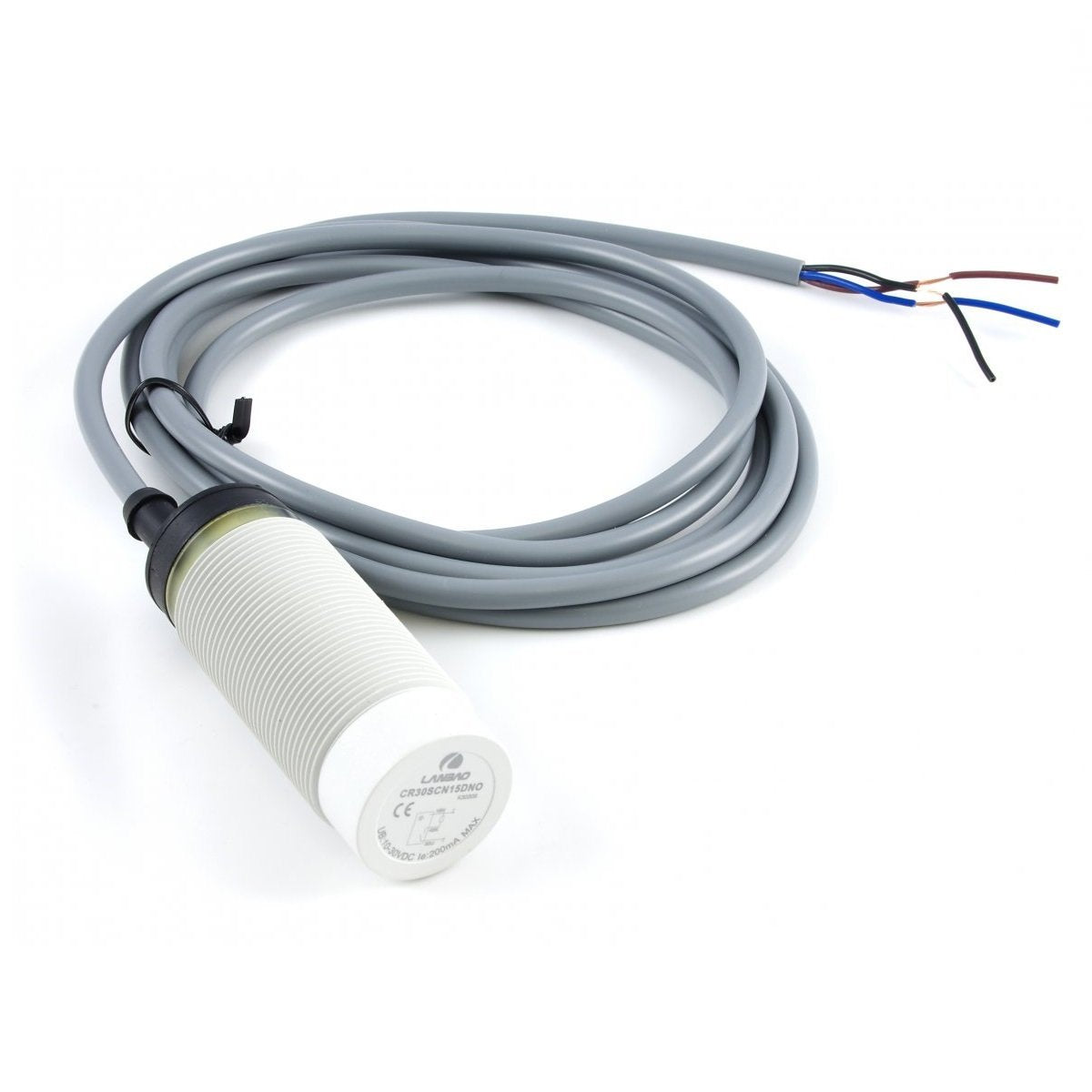

Capacitive Proximity Sensor 15mm CR30SCN15DNO
This capacitive sensor will switch when it detects metals and some other materials within 15mm.
This capacitive proximity sensor is used for non-contact detection of metallic and non-metallic objects such as liquid, powder and granular materials; it can also detect materials through glass or plastic walls.
Note that the standard detecting distance is based on a standard shape approaching the sensor in a standard way. The real detecting distance will vary depending on the shape, thickness and type of material being detected.
You can adjust the operating distance by turning a screw placed on the bottom end of the sensor.
Comes packaged with
- 2 plastic rings
- a screwdriver
Product Specifications
| Sensor Properties |
| Controlled By |
Digital Input (5V) |
| Detecting Distance Max |
15 mm |
| Setting Distance Max |
12 mm |
| Sensor Type |
Proximity (Capacitive) |
| Sensor Output Switch Type |
Normally Open |
| Detection Hysteresis Min |
3 % |
| Detection Hysteresis Max |
20 % |
| Sensor Response Time Max |
20 ms |
| Electrical Properties |
| Supply Voltage Min |
10 V DC |
| Supply Voltage Max |
30 V DC |
| Current Consumption Max |
15 mA |
| Protection Circuitry |
Reverse Polarity, Surge, Overload and Short-Circuit |
| Physical Properties |
| Cable Length |
2 m |
| Material |
PBT |
| Operating Indicator |
Yellow LED |
| IP Rating |
IP67 |
| Length |
70 mm |
| Diameter |
25 mm |
| Operating Temperature Min |
-25 °C |
| Operating Temperature Max |
70 °C |
| Operating Humidity Min |
35 %RH |
| Operating Humidity Max |
95 %RH |
Documents

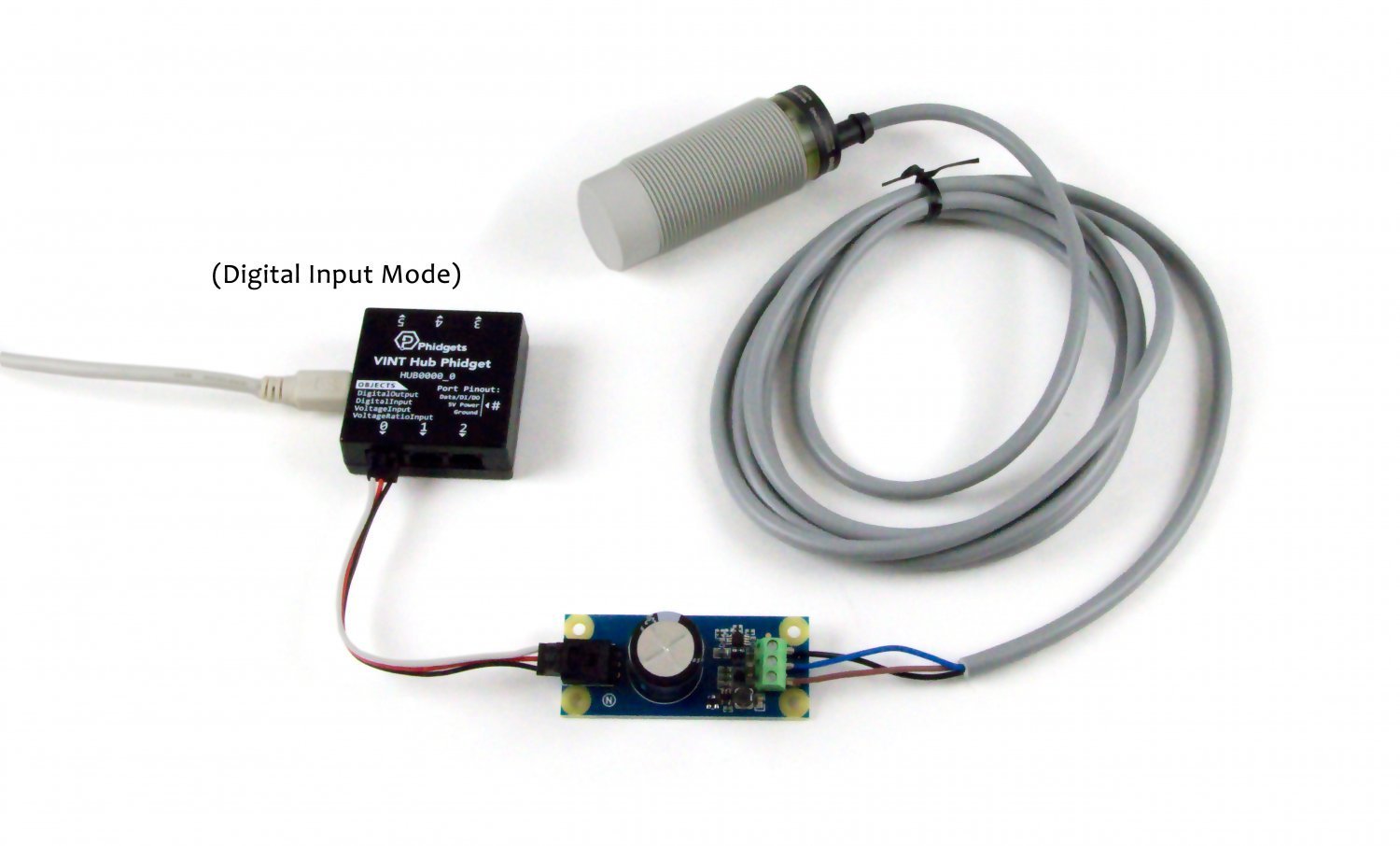

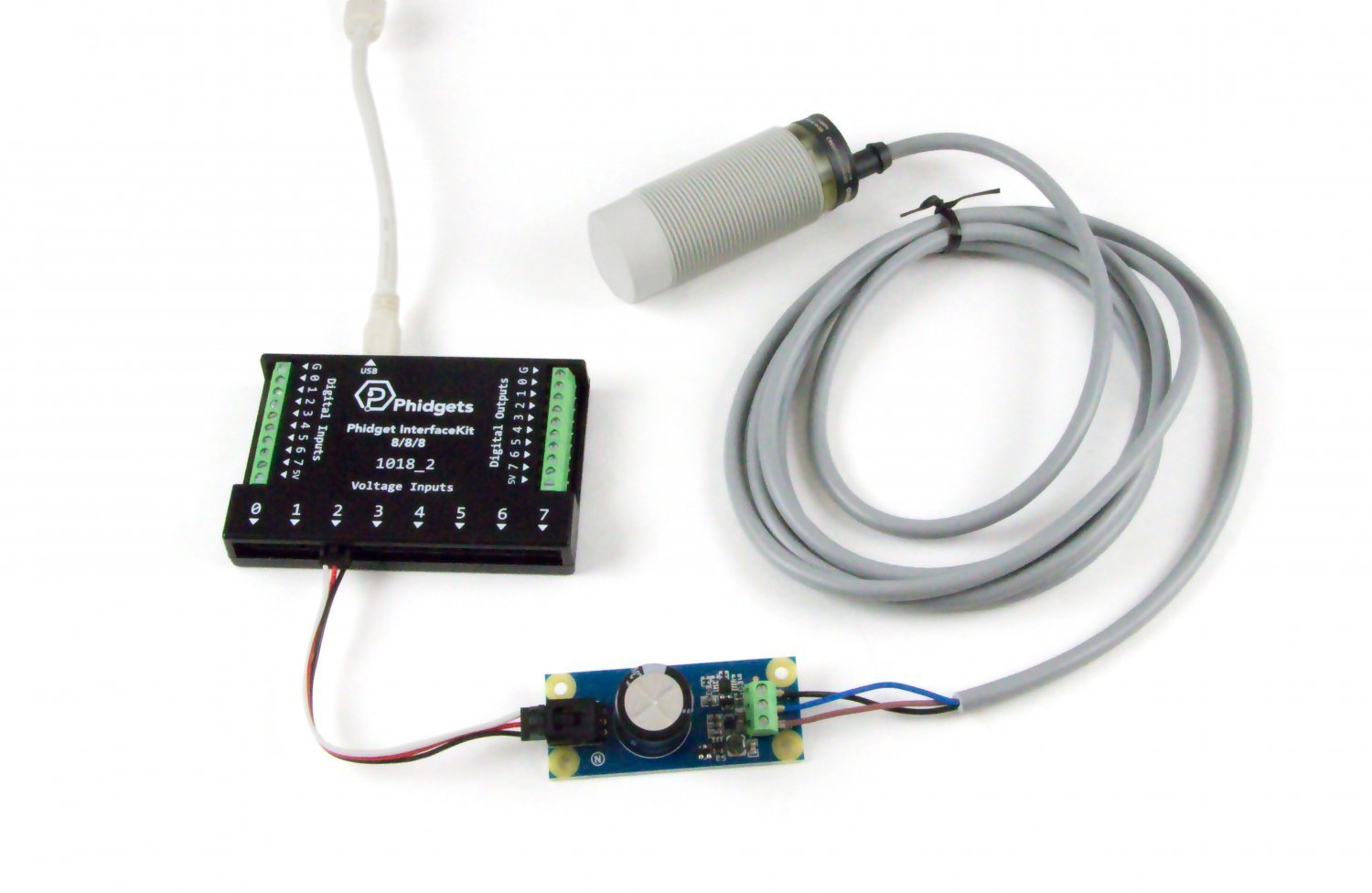

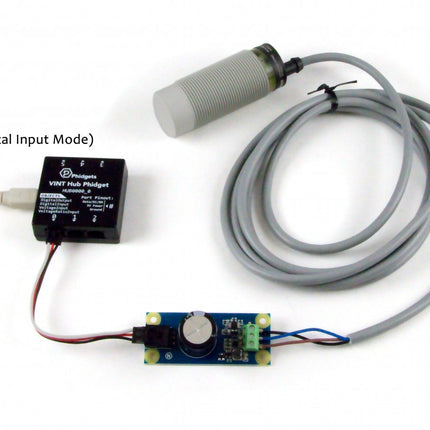

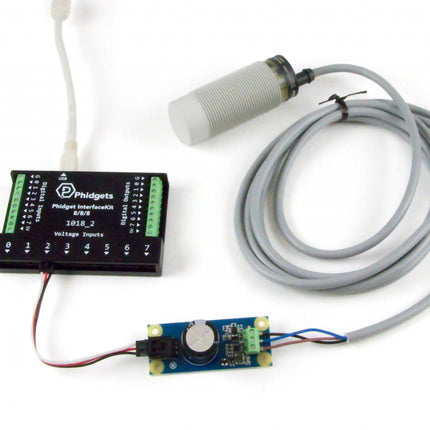

This sensor requires a 12V power supply and outputs a 0-5V signal depending on whether the sensor is triggered. For a simple way to provide 12 volts, you can use our 12V sensor adapter. It uses the 5V supply from your InterfaceKit or Hub and steps it up to 12V while simultaneously passing the 0-5V signal from the sensor into the Phidget cable.
