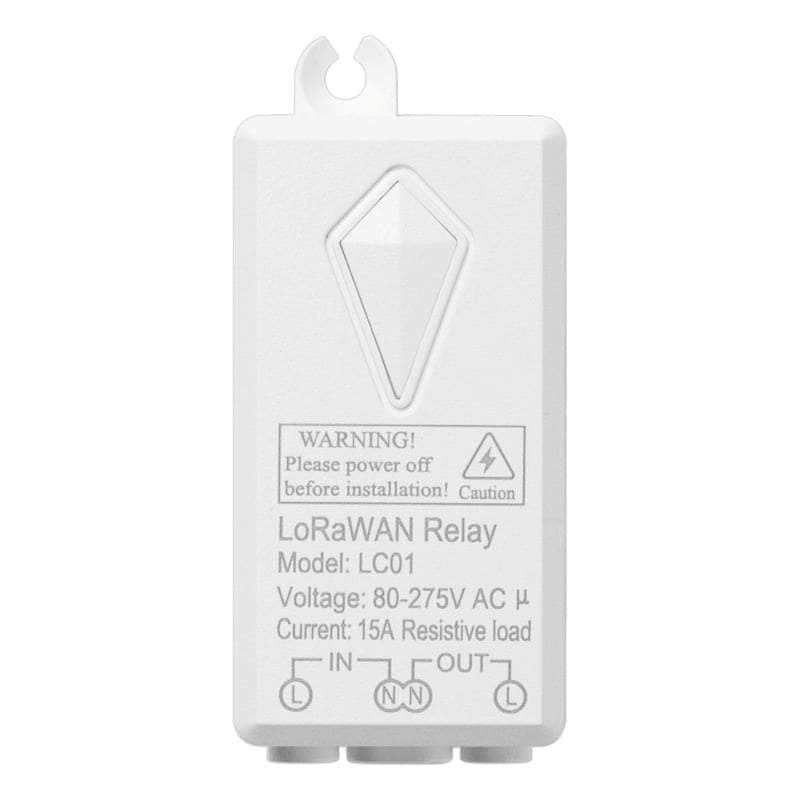

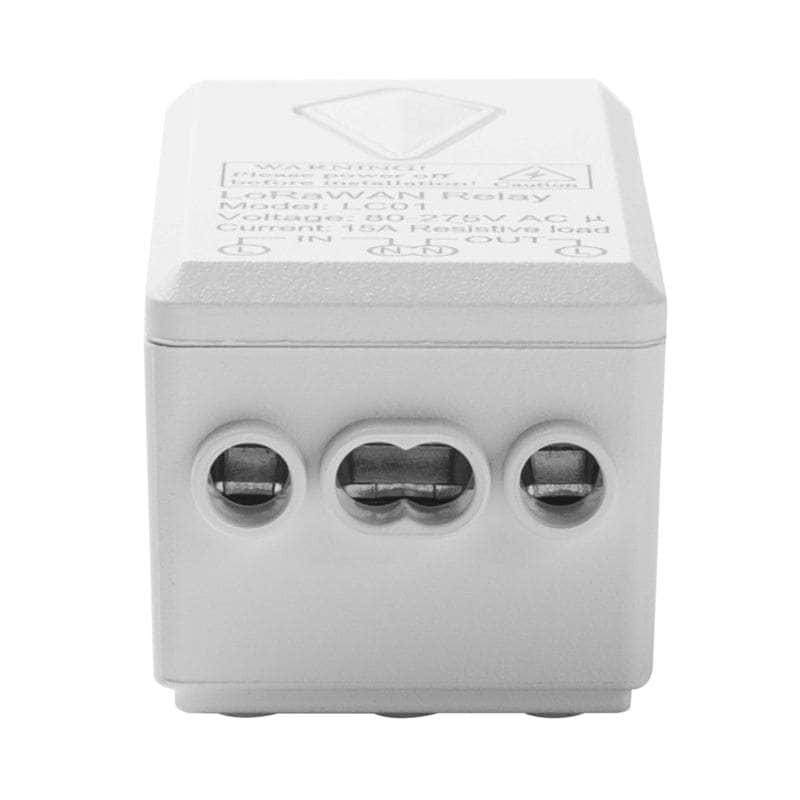

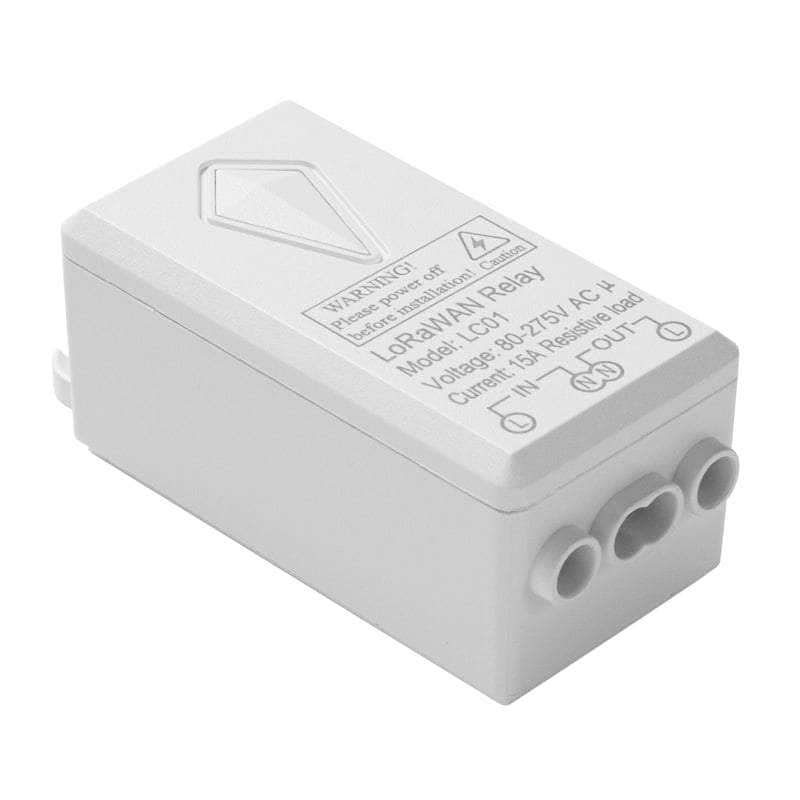

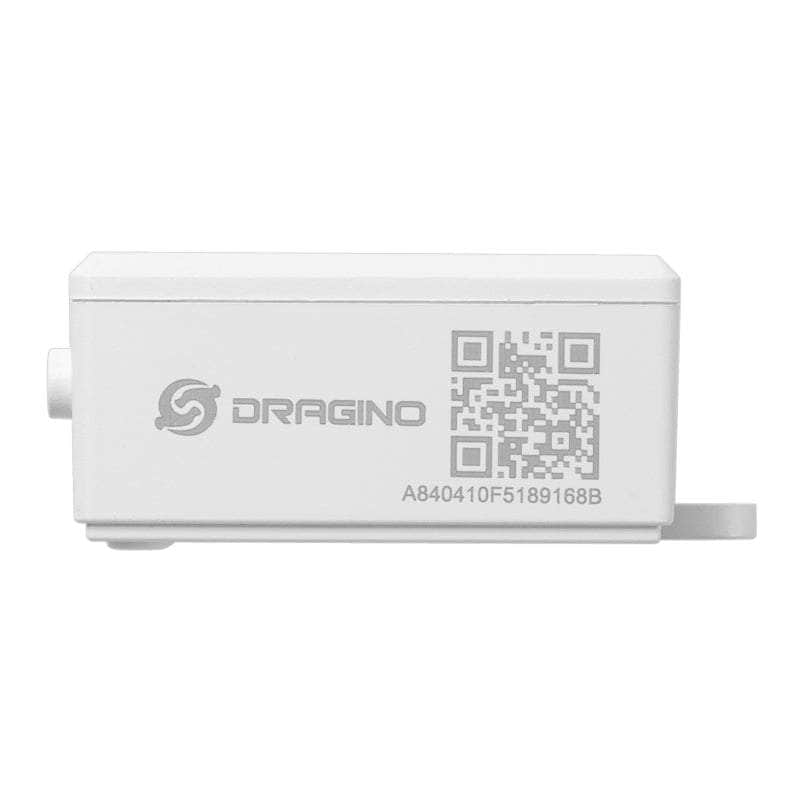

LC01 LoRaWAN Relay
The Dragino LC01 is a LoRaWAN Relay that can be used to control the switch of different electrical appliances and lighting.
The Dragino LC01 is equipped with overcurrent, overvoltage and short-circuit temperature rise protection, which can effectively prevent lightning strikes.
The shell of LC01 is made of fireproof PC material, with anti-ultraviolet material is added, which is not easy to change color.
Each LC01 is pre-loaded with a set of unique keys for LoRaWAN registration, register these keys to the LoRaWAN server, and it will auto-connect after power on. The LC01 has a patented zero-crossing trigger that can extend the life of the device. Users can switch sockets on the LoRaWAN server.
Features:
- LoRaWAN v1.0.3 Class C protocol
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Receiver on/off times 400,000 times
- Support Downlink and Timing control relay opening and closing
- AT Commands to change parameters
- Log function and key reset function
Specifications:
- Voltage: 80-275V AC
- Current : 15A Resistive load
Documents
