LoRa Fibreglass Outdoor Antenna 5dBi Omni 900-930 MHz
LoRa Fibreglass Outdoor Antenna 5dBi Omni 900-930 MHz

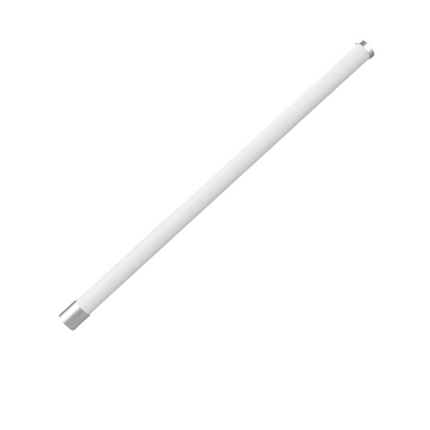

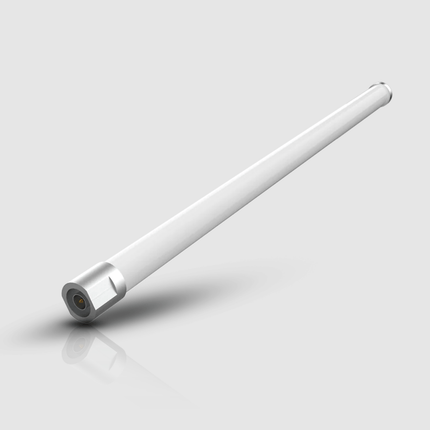

This is a high-quality outdoor antenna designed to be deployed outdoor, for better range. The antenna connector is one with the antenna body because this design increases the resistance of the antenna to external conditions further. It is IP67-rated, making it weatherproof. It is designed to work in the sub-GHz bands like US915, AU915, and AS923.
The coverage that this antenna provides makes it ideal for deployment outdoors in a high-altitude spot within the outskirts of an urban area, where there is a relatively low number of other buildings and people in general. In such a scenario it is likely that the signal will be able to cover a longer distance until it reaches the intended recipient of the transmission. If you need the transmission signal to reach the center of the urban area or a nearby village or town, this antenna will likely provide you with the needed coverage.
As this is a mid range dBi antenna, it is designed to provide better, fuller and more stable coverage for devices that are situated nearby, but not too close to it, as opposed to an ever higher dBi antenna, which would be able to do the same for devices that are situated even further away from its location. The general logic related to the difference between a higher dBi antenna and a lower dBi antenna is best understood by viewing the picture below:
The exact shape of coverage for antennas in general resembles that of a doughnut, while the exact radiation pattern for the currently discussed 5 dBi antenna can be viewed on the picture below.
Product Features
- Frequency: 902-928MHz
- Gain: 5.0dBi
- VSWR: ≤1.47
- Beamwidth: 360 degrees
- Impedance: 50 Ohms
- Polarization: Vertical
- Radome Body: Fiberglass
- Connector: N-Type Male
- Dimensions: Փ 27.0 mm x 480.0 mm
- Operation Temperature: -40°C~+75°C
- Storage Temperature: -40°C~+85°C
- IP67 rated
