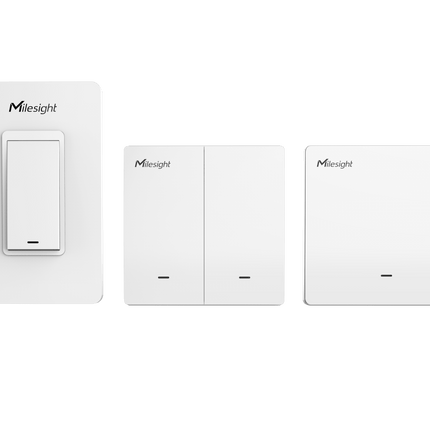

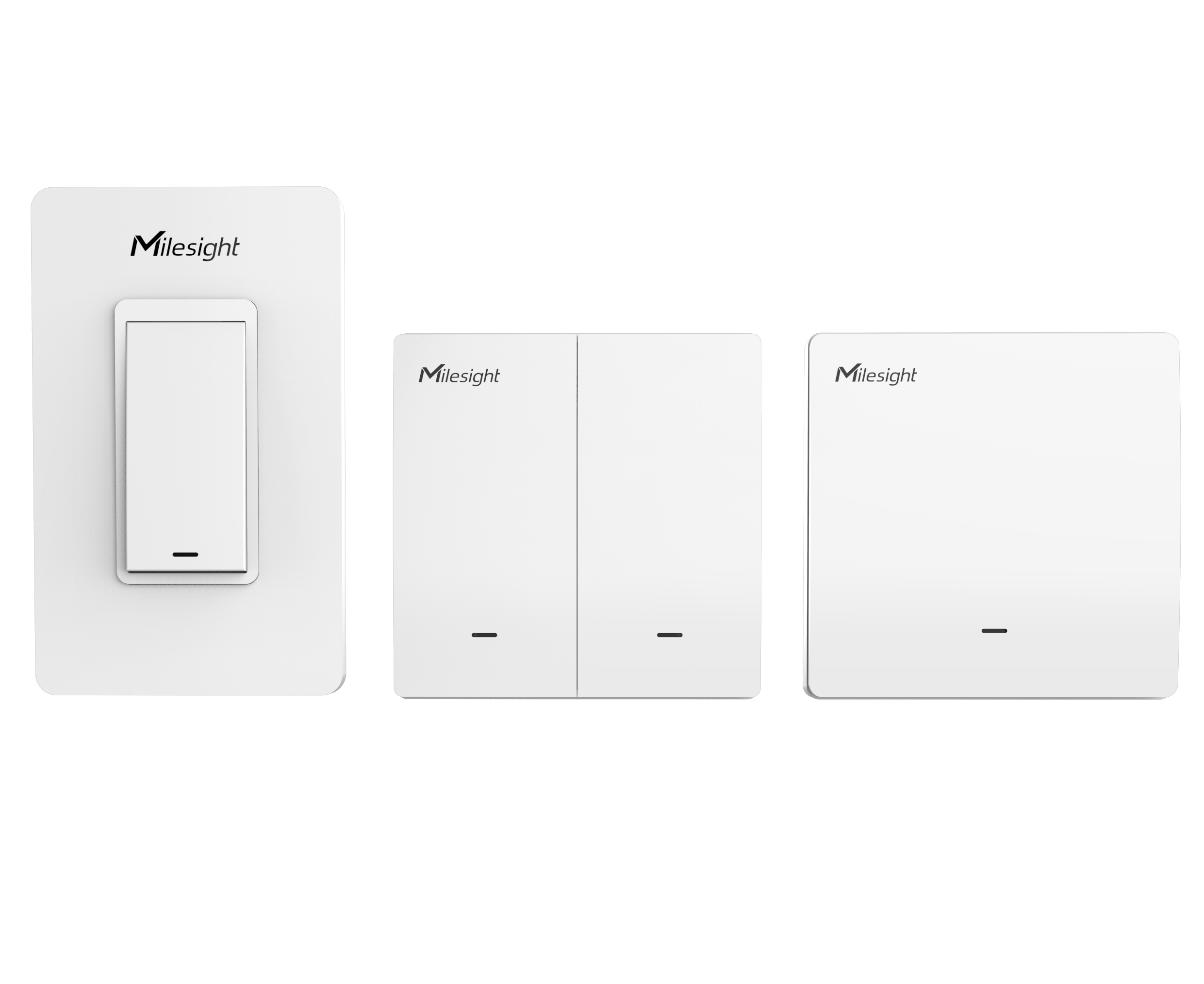

Milesight WS50x LoRaWAN Smart Wall Switch

Description



Milesight WS50x LoRaWAN Smart Wall Switch

WS50x is a smart LoRaWAN® wall switch for the local and remote control of lights and electrical appliances. It adopts standard sizes for most of the international wall switch types, which can replace the traditional wall switches directly. CompliantwithMilesight LoRaWAN® gateway and Milesight IoTCloudsolution, WS50x can be monitored and controlled via a webpage or mobile App remotely and triggered by other Milesight sensors. WS50x can be widely used for indoor applications in homes, offices, hotels, museums, etc.

  • Remote & Time-Based ON/OFF
  • Power Consumption Measurement
  • Milesight D2D Communication
  • Easy Configuration (via NFC)

Time-Based ON/OFF

  • Illuminate Like Clockwork
  • Set timers and schedules to make lights function automatically.

Milesight D2D Communication

Milesight D2D (Device to Device) protocol featuring LoRa enables communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.

Power Consumption Measurement

The power consumption measurement and flexible schedule settings would help to save power and lower electric bills.

Specifications | Documents

Wireless Transmission Technology LoRaWAN®, Milesight D2D
Frequency AU915/US915/AS923
Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137dBm
Mode OTAA/ABP Class C
Electrical Switches 1-Gang/2-Gang (Optional)
Switch Indicator Ice Blue
Input Voltage 100~250 VAC, 50~60 Hz
Maximum Current Inductive: 5 A per Gang, Total 10 A
Resistive: 10 A per Gang, Total 10 A
Rated Load Max 1000 W per Gang, Total 2000 W
Terminal SPST
Circuit Type 3-Wire
Measurement Voltage (VAC), Current (mA), Power Factor (%), Power (W), Power Consumption (kWh)
Software Configuration NFC
Switch Control Local Press or Remote Control
Advanced Features Schedule Switch, Switch Lock, Overcurrent Protection, Multicast, Milesight D2D Controller, Milesight D2D Agent
Physical Characteristics Ingress Protection IP20
Material Antiflaming Polycarbonate
Color White (Customizable)
Dimensions 86 Type: 86 × 86 × 40 mm (3.39 × 3.39 × 1.57 in)
120 Type: 118 × 72 × 46.9 mm (4.65 × 2.83 × 1.85 in)
Operating Temperature -20°C to +60°C (-4℉ to +140℉)
Relative Humidity 0% to 95% (non-condensing)


Documents:

WS50x Datasheet

WS50x  User Guide



Read more
