Milesight LoRaWAN VS34X Desk and Seat Occupancy Sensor

Description



Milesight LoRaWAN VS34X Desk and Seat Occupancy Sensor

  • LoRaWAN® Wireless Deployment
  • High Precision & Speed Dual-Technology
  • Up to 98% Ultra-High Accuracy
  • 100% Anonymous Detection
  • Ultra Low Latency Gains Quick Response
  • Adjustable PIR Angles for Flexible Performance
  • Tiny and Non-Invasive Design
  • Unique Milesight D2D Boost Communication

Make Desk & Seat Occupancy Easy

The sensor's impressive desk & seat occupancy detection capability frees up human resources enabling efficient management.

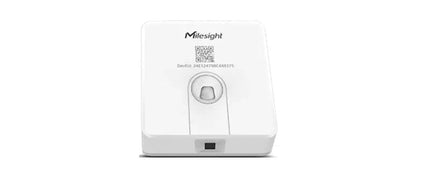

Desk & Seat Occupancy Sensor VS340

Based on the highly sensitive PIR, VS340 is designed for high-cost performance, which meets general needs.

Desk & Seat Occupancy Sensor VS341

Based on the dual technology of PIR and thermopile, VS341 is designed to bring higher accuracy and quick occupancy status detection for more specific applications.

LoRaWAN® Wireless Deployment

Easy and convenient wireless deployment dispenses with being perplexed by network connection. The benefits of LoRa technologies guarantee low power consumption, long-distance transmission, deep penetration, and anonymous detection.

Dual-Technology of PIR & Thermopile

VS341 employs both highly sensitive PIR and thermopile sensors to accurately detect occupancy. The double detection mechanism fully captures the motions and temperature variations in its target areas and contributes to trustworthy results.

98% Industry Leading Accuracy

Based on dual technology, the sensor is capable of reaching up to 98% high accuracy. It satisfies general requirements and further makes accurate detection possible, beating the most similar products.

Timely Response with Low Latency

The sensor can process rapidly to detect the status of occupied reaching 13s and not occupied reaching 60s, bringing near real-time performance. It is valuable for effectiveness-oriented applications to gain fast responses and take timely action.

Adjustable Detection Angles

The target areas can be varied as appropriate. To avoid unnecessary detection and focus on the aim regions, the sensor is equipped with 5 different covers, making it preferable for detecting different table and desk occupancy with various ranges in different scenarios.

5 Years Long Service Life

Based on the low power consumption LoRaWAN®, the sensor can maintain a long battery life of 5 years with a frequent report rate. It is ideal for covering most user demands in different applications.

Energy-Saving Smart Control

The exclusive Milesight LoRa®-based protocol allows the sensor to easily communicate with other Milesight LoRaWAN® devices without a gateway within 1 second. It can also detect occupancy status to control the DS3604 E-link IoT Display, providing a convenient indication of workstation availability.

Easy and Fast Deployment

The thin-and-light design and peel-and-stick mounting make it convenient for bulk deployment. It can be applied in any application with even a large amount. Not much energy is needed and the deployment can be easily done.

Specifications

VS340

Occupancy Detection
Technology PIR
Recognition Rate Up to 95%
PIR Detection Area 107 ° Horizontal, 107 ° Vertical
PIR Detection Distance Within 1m
Thermopile Detection Area ----
Wireless Transmission
Protocol LoRaWAN®, Milesight D2D
Frequency CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137 dBm
Mode OTAA/ABP Class A
Others
Button 1 x Power/Reset Button (Internal)
Indicator 1 × Status Indicator
Configuration NFC Configuration via Mobile App
Advanced Feature Milesight D2D Controller
Physical Characteristics
Power Supply 1 x 4000 mAh ER18505 Li-SOCL2 Battery
Battery Life2 Around 5 Years (100 Triggers per Day, 25°C)
Operating Temperature -20°C ~ +60°C
Relative Humidity 0 ~ 95% (Non-condensing)
Dimension 73 x 73 x 26 mm ( 2.87 x 2.87 x 1.02 in) (Without PIR Cover)
Weight 90g
Ingress Protection IP30
Color & Material White + Grey, PC + ABS (Flame Retardant)
Installation 3M Tape Mounting, Wall Screw Mounting



VS341

Occupancy Detection
Technology PIR & Thermopile
Recognition Rate Up to 98%1
PIR Detection Area 107 ° Horizontal, 107 ° Vertical
PIR Detection Distance Within 1m
Thermopile Detection Area 50° (50% level of sensitivity)
Wireless Transmission
Protocol LoRaWAN®, Milesight D2D
Frequency CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137 dBm
Mode OTAA/ABP Class A
Others
Button 1 x Power/Reset Button (Internal)
Indicator 1 × Status Indicator
Configuration NFC Configuration via Mobile App
Advanced Feature Milesight D2D Controller
Physical Characteristics
Power Supply 1 x 4000 mAh ER18505 Li-SOCL2 Battery
Battery Life2 Around 5 Years (100 Triggers per Day, 25°C)
Operating Temperature -20°C ~ +60°C
Relative Humidity 0 ~ 95% (Non-condensing)
Dimension 73 x 73 x 26 mm ( 2.87 x 2.87 x 1.02 in) (Without PIR Cover)
Weight 90g
Ingress Protection IP30
Color & Material White + Grey, PC + ABS (Flame Retardant)
Installation 3M Tape Mounting, Wall Screw Mounting

1The temperature range of thermopile to reach best recognition rate is +10 to +30 °C.
2 Tested under laboratory conditions and for guideline purposes only.

 Documents





Milesight LoRaWAN VS34X Desk and Seat Occupancy Sensor

Product form

SKU: VS340

$139.00 $119.00 Excl. GST

$119.00
Product available in stock.
