Description
LoRaWAN Weather Station Kit WSC2-L
The Dragino Weather Station Kit is designed to measure atmospheric conditions, provide information for weather forecasts, and study the weather and climate.

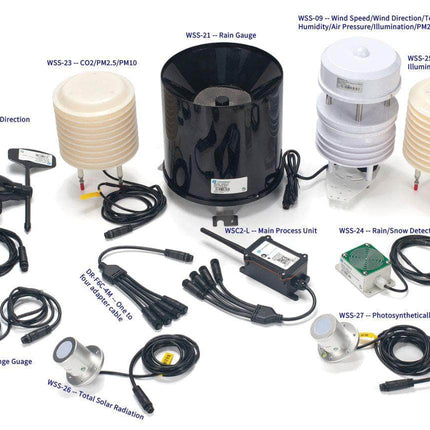

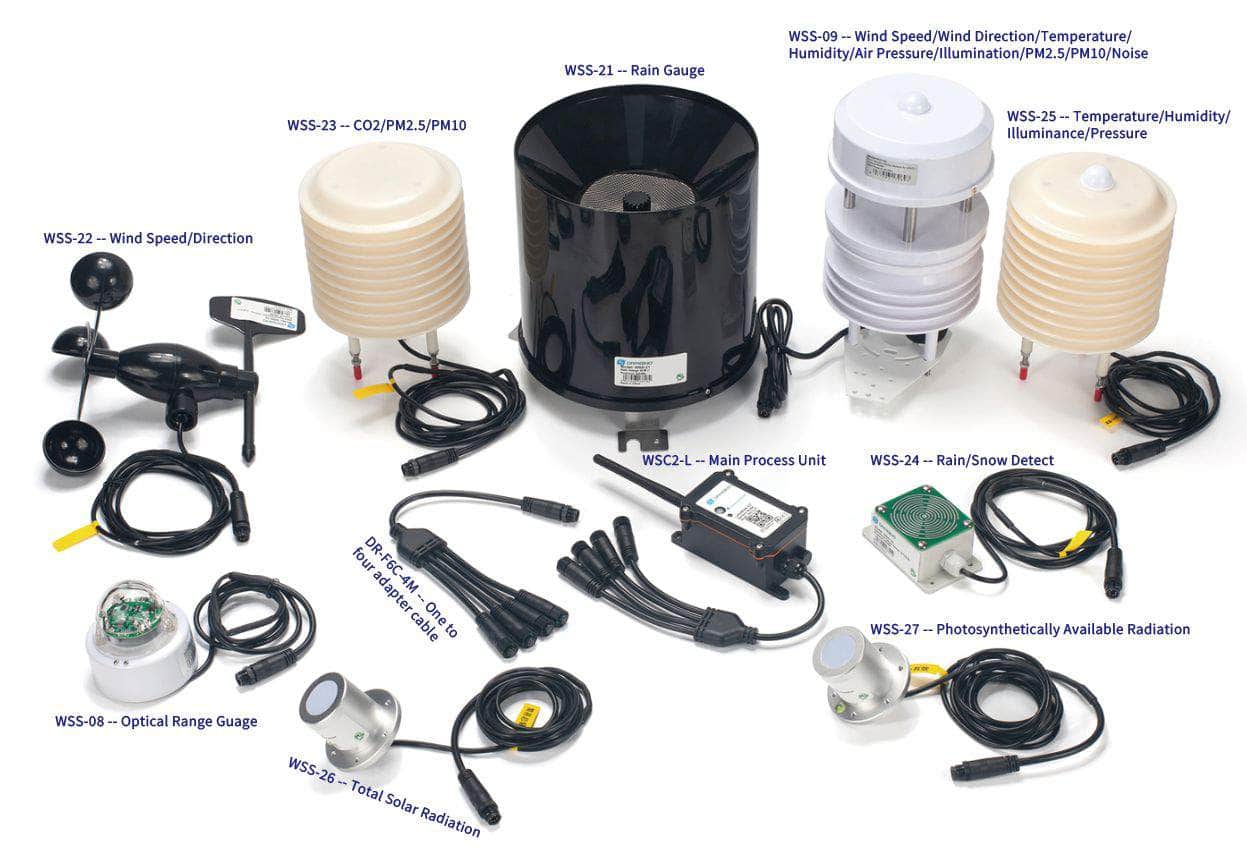

The Weather Station Kit includes a LoRaWAN transmitter WSC2-L, a 9 in 1 Weather Station WSS-09 and a Rain Gauge WSS-08.
Please note that the WSC2-L only includes the transmitter, and the 9 in 1 Weather Station WSS-09 and Rain Gauge WSS-08 need to be purchased separately.
The 9 in 1 weather station kit can measure below values: Wind Speed, Wind Direction, Temperature, Humidity, Air Pressure, Illumination sensor, PM2.5, PM10, Noise & Rain Gauge.
The LoRaWAN transmitter use an RS485 interface to communicate with the 9 in 1 weather station. It can also connect 3rd party RS485 sensors to measure more environmental data. It also has a pulse counting input which can be used to connect Rain Gauge.
WSC2-L is full compatible with LoRaWAN Class A protocol, it can work with standard LoRaWAN gateway.
Features:
- LoRaWAN 1.0.3 Class A
- Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
- Ultra-low power consumption
- Support WSS09 9 in 1 Sensors: Wind Speed, Wind Direction, Temperature, Humidity, Air Pressure, Illumination, PM2.5, PM10, Noise & Rain Gauge
- RS485 Interface for 3rd party Sensors
- Support WSS08 optical Rain Gauge or tipping bucket Rain Gauge
- Support Bluetooth v5.1 and LoRaWAN remote configure
- Support wireless OTA update firmware
- AT Commands to change parameters
- Downlink to change configure
- IP66 Waterproof Enclosure
- 1000mAh Rechargeable Li-ion battery
- Input and Recharge power: 12v
