Description

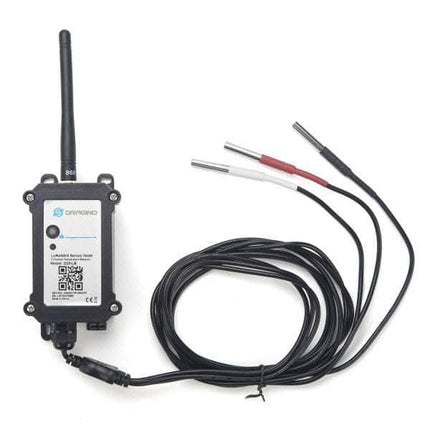

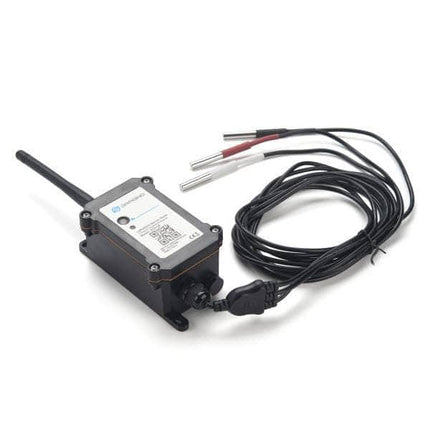

D23-LB LoRaWAN Waterproof Temperature Sensor (3 probes)
The Dragino D23-LB is a LoRaWAN Temperature Sensor for the Internet of Things solution. It can be used to measure the temperature of air, liquid, or object, and then upload to IoT server via LoRaWAN wireless protocol.
The temperature sensor used in D23-LB is DS18B20, which can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C). There are three sensor cables that are waterproof, moisture-proof, and anti-rust for long-term usage.
D23-LB supports temperature alarm feature, user can set temperature alarm for instant notice.
D23-LB is powered by an 8500mAh Li-SOCI2 battery, It is designed for long-term use up to 10 years. (Actually Battery life depends on the use environment, update period. Please check the related Power Analyze report).
Each D23-LB is pre-load with a set of unique keys for LoRaWAN registration, register these keys to the local LoRaWAN server and it will auto-connect after power on.
Features:
- LoRaWAN v1.0.3 Class A
- Ultra-low power consumption
- 3 x External DS18B20 Probes
- Measure range -55°C ~ 125°C
- Temperature alarm
- Bands: CN470/EU433/KR920/US915
EU868/AS923/AU915/IN865
- AT Commands to change parameters
- Uplink on periodically or Interrupt
- Downlink to change configure
Applications:
- Wireless Alarm and Security Systems
- Home and Building Automation
- Automated Meter Reading
- Industrial Monitoring and Control
- Long-range Irrigation Systems, etc.
