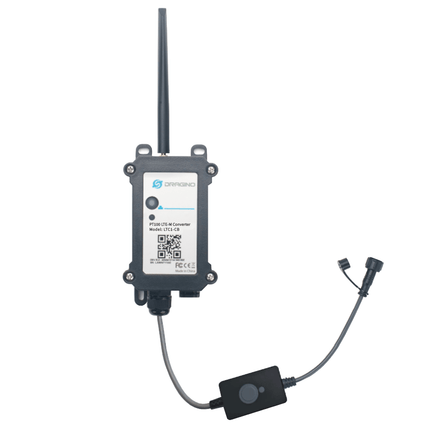

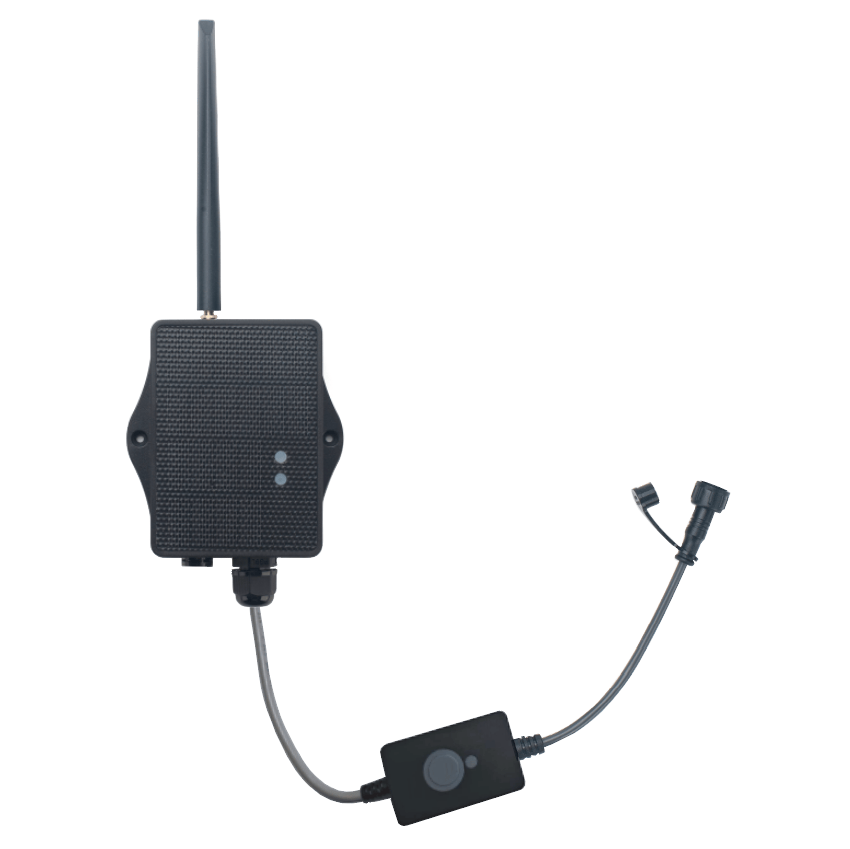

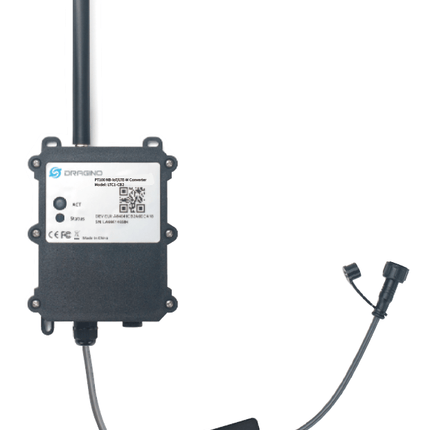

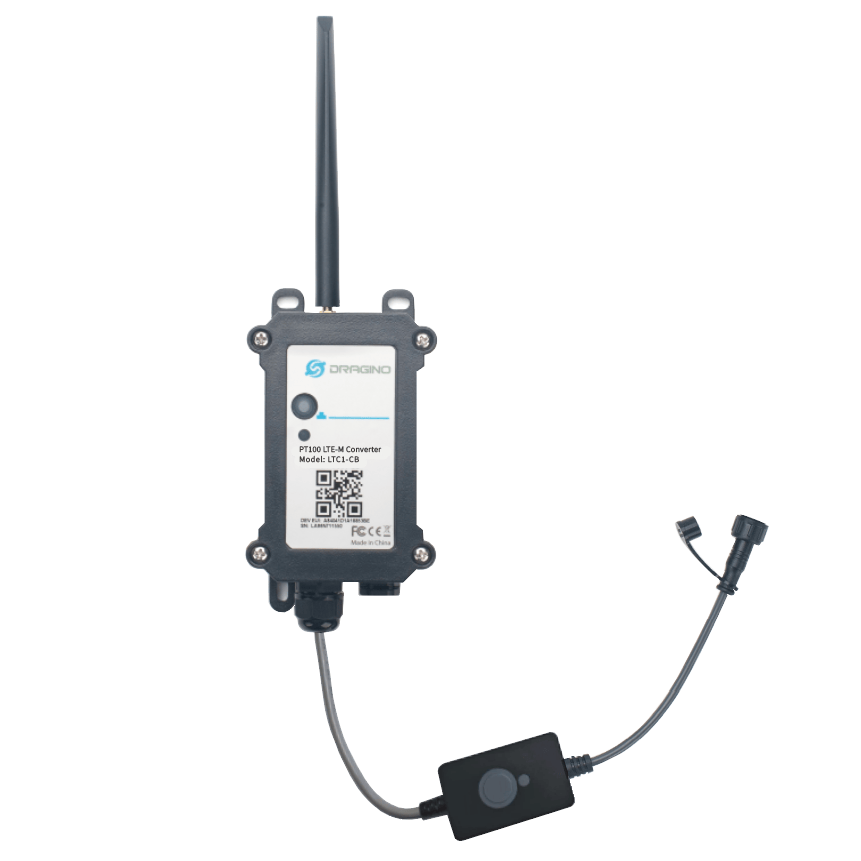

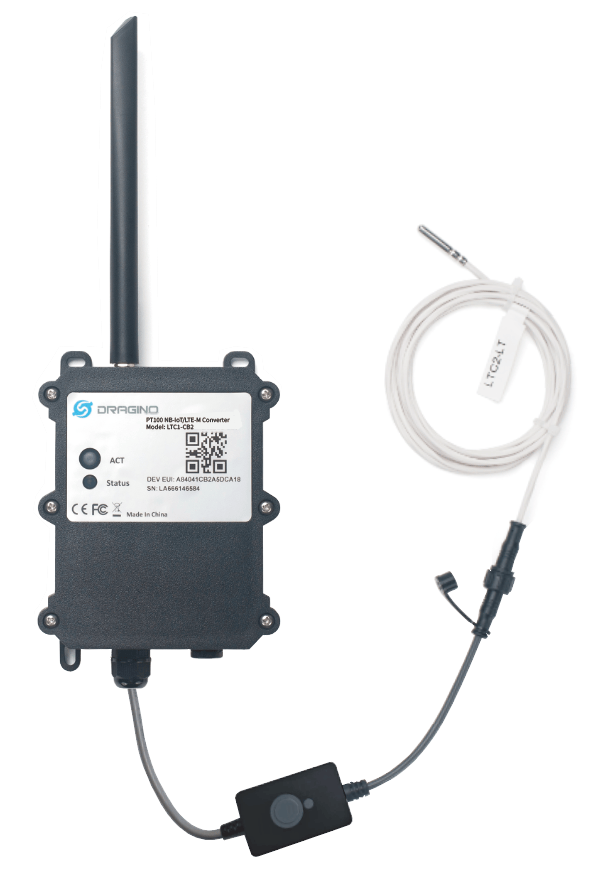

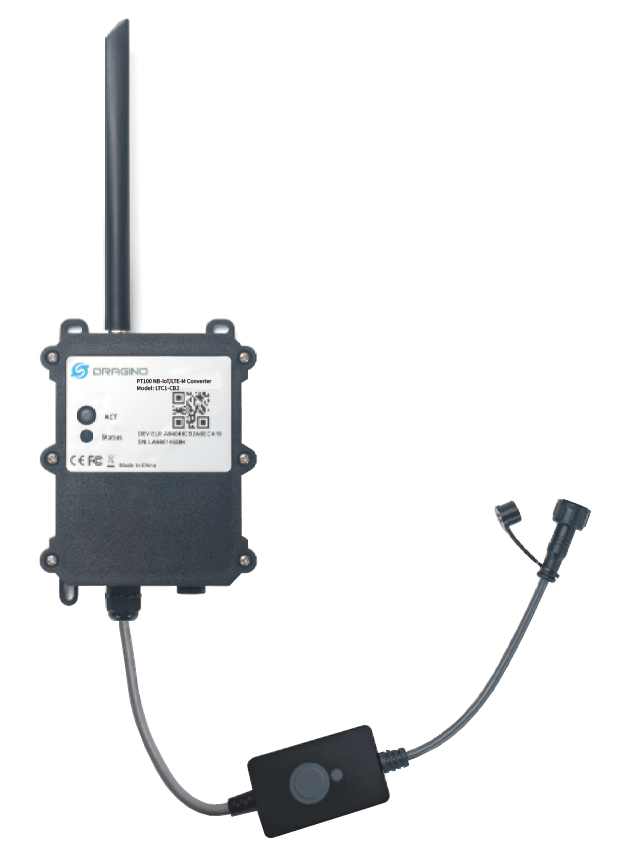

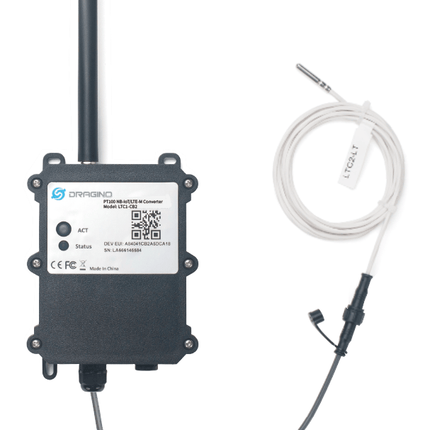

LTC1 PT100 Temperature Probe Transmitter Waterproof Battery-Powered
The Dragino LTC1 Industrial Temperature Transmitter is designed to monitor temperature for different environments. It supports reading PT100 probe and converting the value to temperature and uplink to IoT server via the LoRaWAN, NB-IoT or LTE CTA-M protocol.
LTC1 supports the Datalog feature. The user can retrieve the sensor value via LoRaWAN downlink command.
LTC1 supports BLE configuration and wireless OTA update, which make user easy to use.
Features:
- Ultra-low power consumption
- Support 3-wire PT-100
- Temperature alarm
- Datalog Feature
- Support Bluetooth v5.1 and LoRaWAN remote configuration
- Support wireless OTA update firmware
- Uplink on periodically
- Downlink to change the configuration
Specification:
Common DC Characteristics:
- Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C
PT100 Temperature Sensor Spec:
DR-SI -- Standard IP68:
- Installation: Insert
- Probe Dimension: φ5*30mm
- Measure Range: -60 ~ 200 °C
- Cable Length: 2 meters
- Heraeus PT100
DR-LT -- Low Temperature:
- Installation: Insert
- Probe Dimension: φ5*30mm
- Measure Range: -196 ~ 150 °C
- Cable Length: 2 meters
- Heraeus PT100
DR-HT -- High Temperature:
- Installation: Insert
- Probe Dimension: φ4.5*30mm
- Measure Range: -70 ~ 450 °C
- Cable Length: 3 meters
- Heraeus PT100
DR-FSA -- Food Safety Type:
- Installation: Insert
- Probe Dimension: φ4*150mm
- Measure Range: -40 ~ 260 °C
- Cable Length: 2 meters
- Heraeus PT100
DR-FT -- Flat Type:
- Installation: Attached
- Probe Dimension: 3.6*7.5*20mm
- Measure Range: -60 ~ 200 °C
- Cable Length: 2 meters
- Heraeus PT100
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
-
Excellent blocking immunity
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuously current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
