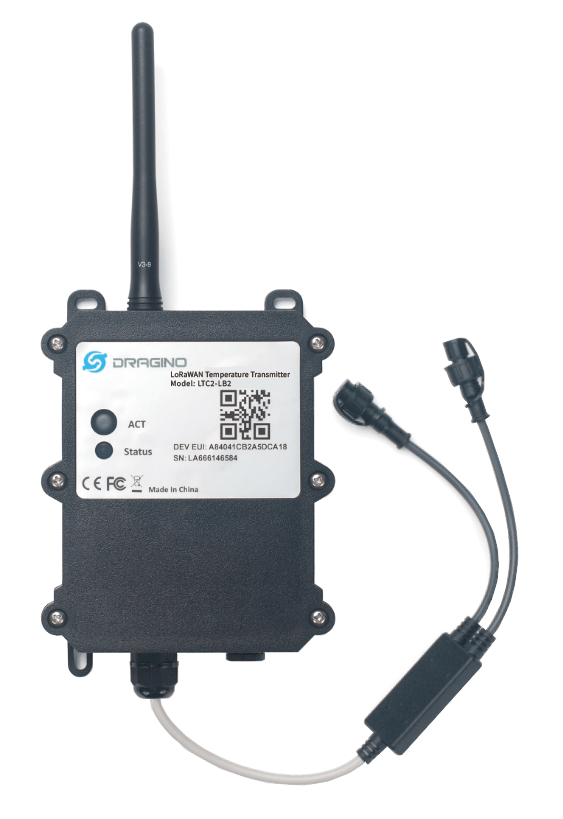

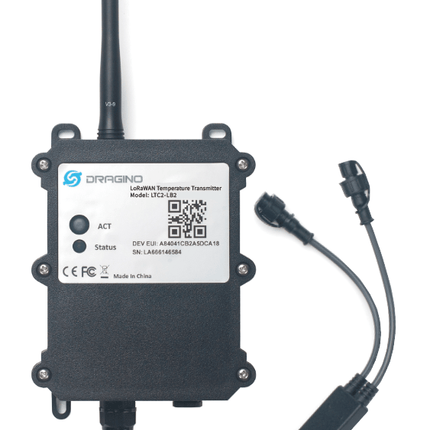

LTC2 PT100 Dual Temperature Probe Transmitter Waterproof Battery-Powered

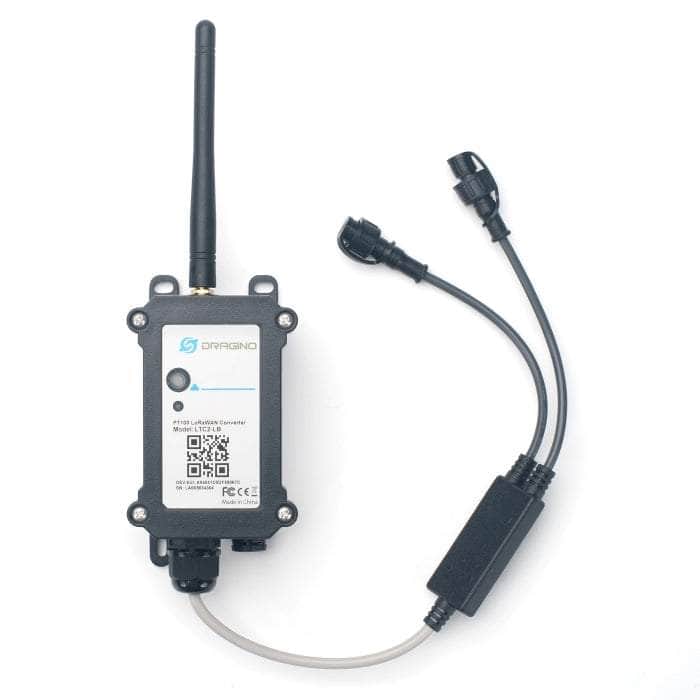

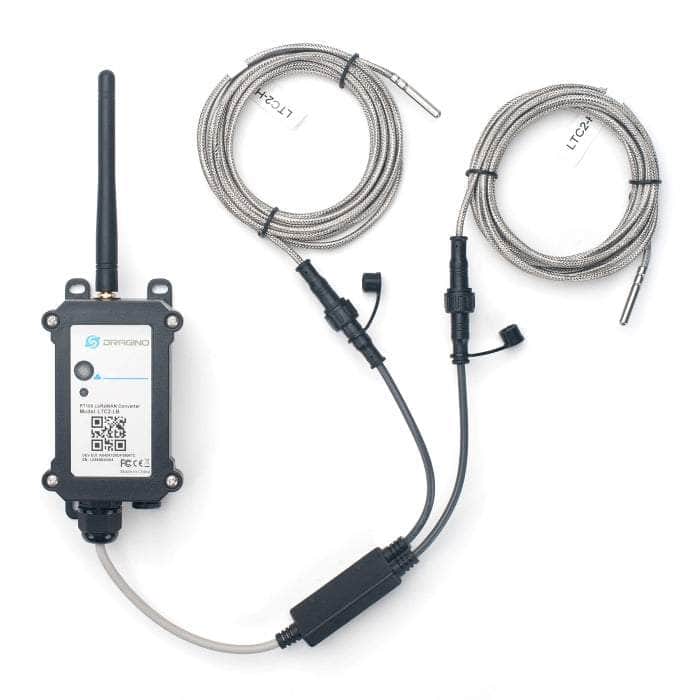

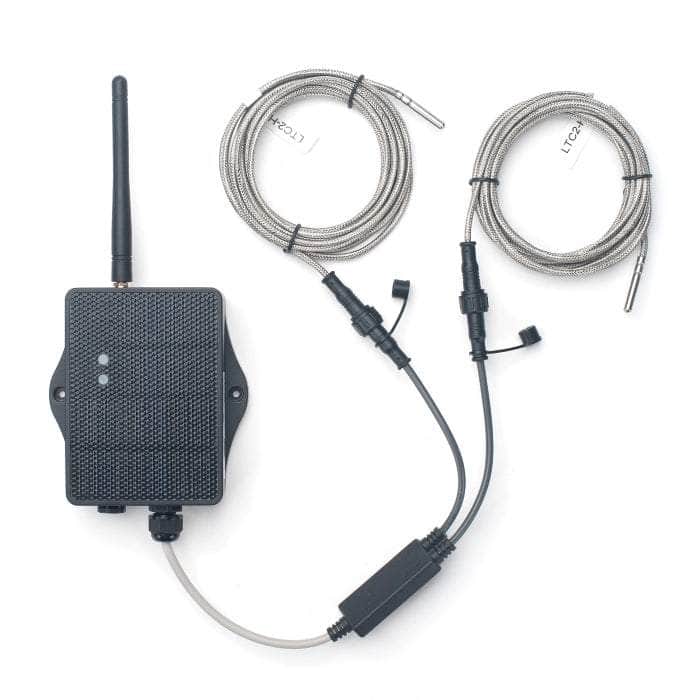

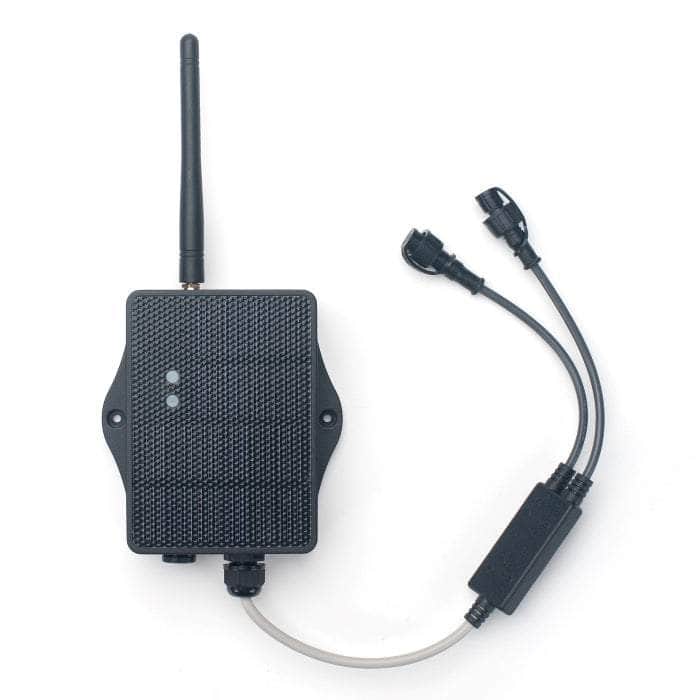

The Dragino LTC2 Industrial Temperature Transmitter is designed to monitor temperature for different environments. It supports reading dual PT100 probe and converting the value to temperature and uplink to IoT server via the LoRaWAN, NB-IoT or LTE CTA-M protocol.
LTC2-LB supports the Datalog feature. The user can retrieve the sensor value via LoRaWAN downlink command.
LTC2-LB supports BLE configuration and wireless OTA update, which make user easy to use.
Features:
- Ultra-low power consumption
- max: 2 x monitor temperature channels
- Support 3-wire PT-100
- Temperature alarm
- Datalog Feature
- Support Bluetooth v5.1 and LoRaWAN remote configuration
- Support wireless OTA update firmware
- Uplink on periodically
- Downlink to change the configuration
- 8500mAh Li/SOCl2 Battery
Specification:
Common DC Characteristics:
- Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
- Operating Temperature: -40 ~ 85°C

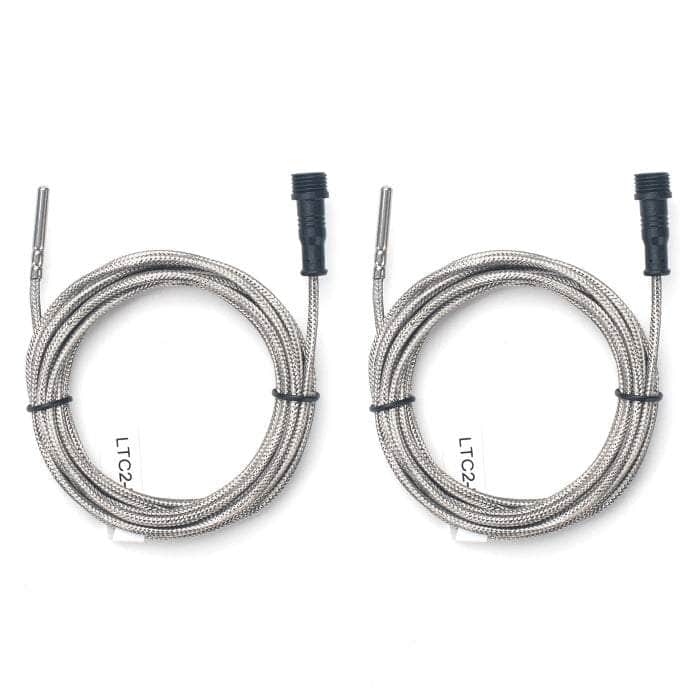

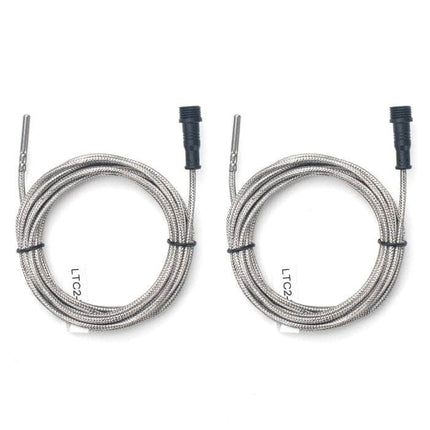

PT100 Temperature Sensor Spec:

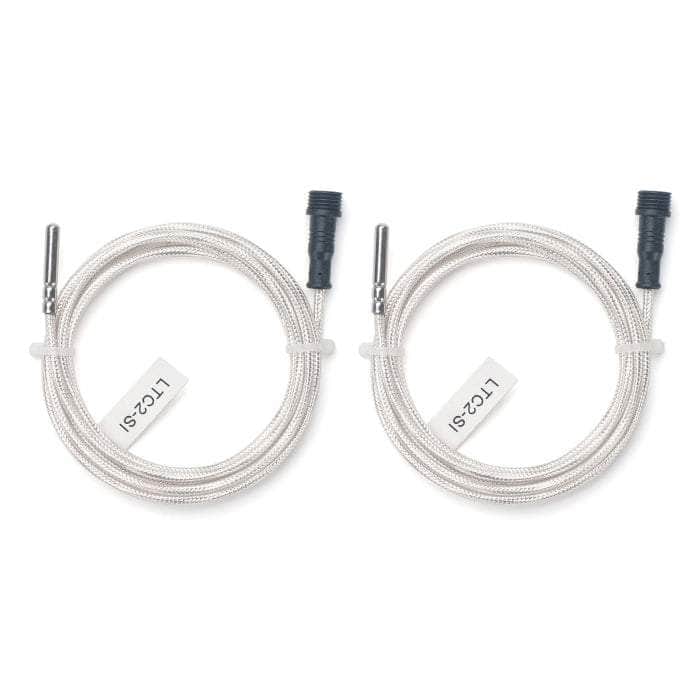

DR-SI -- Standard IP68:
- Installation: Insert
- Probe Dimension: φ5*30mm
- Measure Range: -60 ~ 200 °C
- Cable Length: 2 meters
- Heraeus PT100

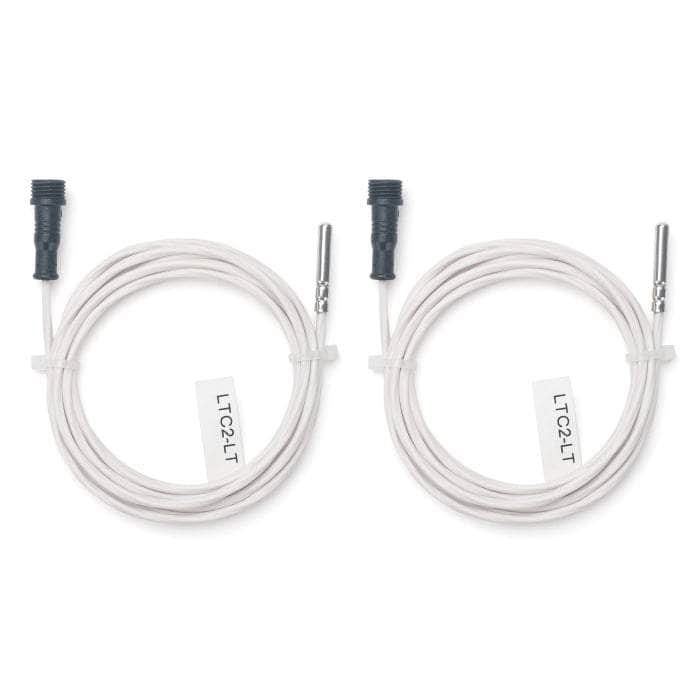

DR-LT -- Low Temperature:
- Installation: Insert
- Probe Dimension: φ5*30mm
- Measure Range: -196 ~ 150 °C
- Cable Length: 2 meters
- Heraeus PT100
DR-HT -- High Temperature:
- Installation: Insert
- Probe Dimension: φ4.5*30mm
- Measure Range: -70 ~ 450 °C
- Cable Length: 3 meters
- Heraeus PT100

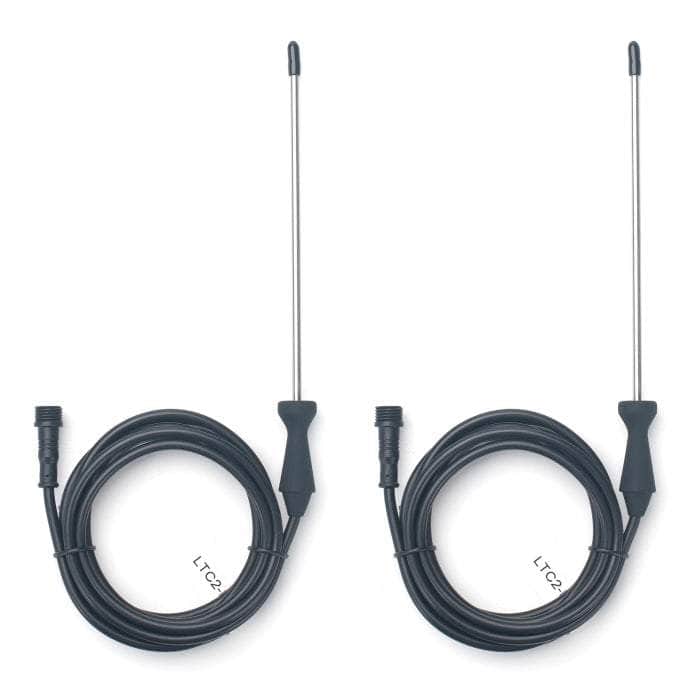

DR-FSA -- Food Safety Type:
- Installation: Insert
- Probe Dimension: φ4*150mm
- Measure Range: -40 ~ 260 °C
- Cable Length: 2 meters
- Heraeus PT100

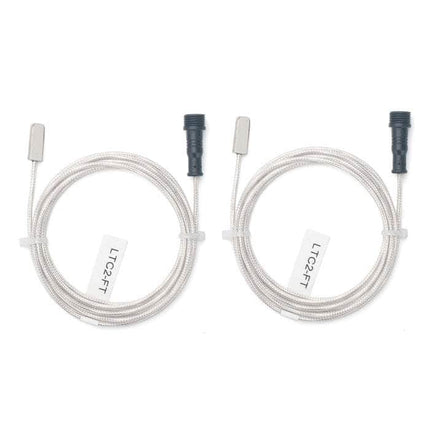

DR-FT -- Flat Type:
- Installation: Attached
- Probe Dimension: 3.6*7.5*20mm
- Measure Range: -60 ~ 200 °C
- Cable Length: 2 meters
- Heraeus PT100
LoRa Spec:
- Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
- Max +22 dBm constant RF output vs.
- RX sensitivity: down to -139 dBm.
-
Excellent blocking immunity
Battery:
- Li/SOCI2 un-chargeable battery
- Capacity: 8500mAh
- Self-Discharge: <1% / Year @ 25°C
- Max continuously current: 130mA
- Max boost current: 2A, 1 second
Power Consumption:
- Sleep Mode: 5uA @ 3.3v
- LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
