Lumenier FX2208-9 2000kv Multi-Rotor Motor

Description

Lumenier FX2208-9 2000kv Multi-Rotor MotorDetails

The Lumenier FX2208-9 2000kv Multi-Rotor motor was designed for those with speed in mind. This motor features a high 2000 KV giving you tons of top end power. Combine this motor with a high C rated LiPo battery and compatible ESCs for an extreme mini-multirotor racer.

The FX2008-9 2000kv motor is best suited for 5-6" props on 4s, and 6-7" props on 3s LiPo batteries.

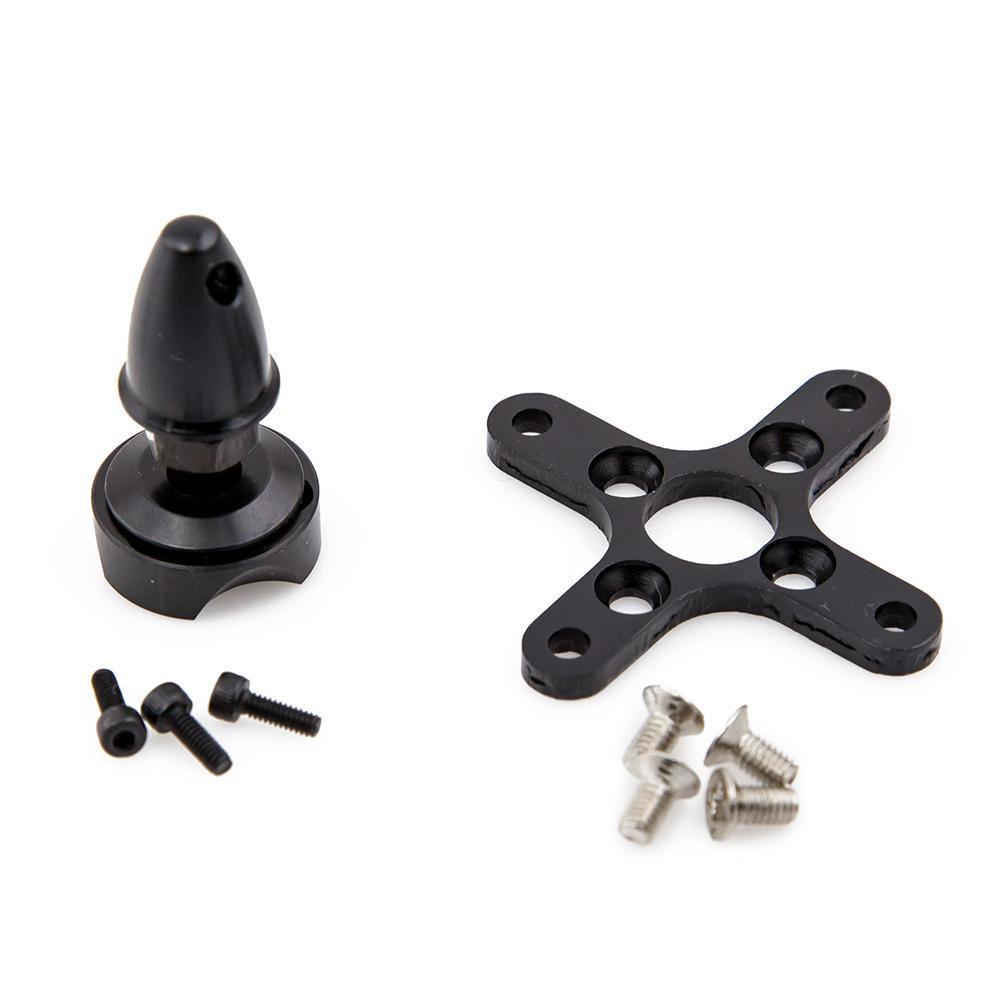

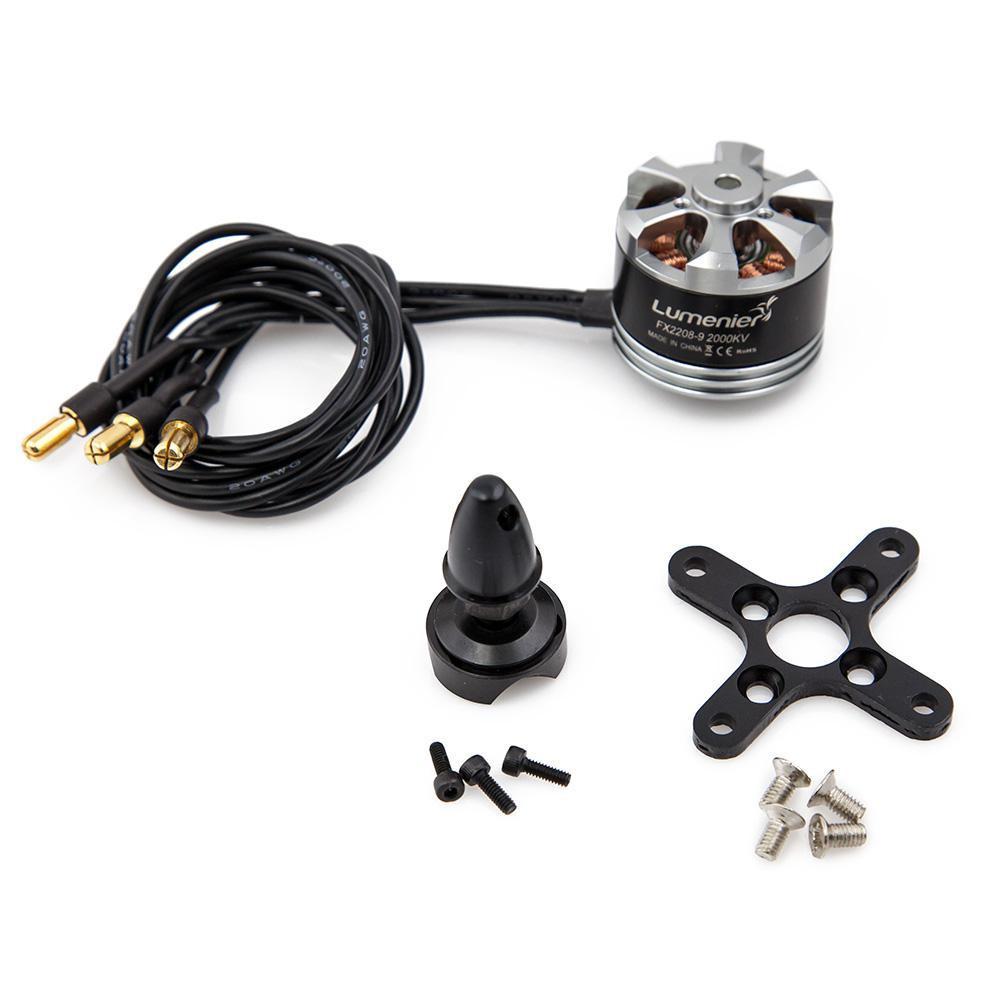

The motor has a 5mm diameter prop adapter and comes with a spinner and mounting plate with screws. Rated for use with 3-4S LiPo.  Comes with 110mm long motor wires and male 3.5mm bullet connectors. This motor uses high quality parts and bearings.

Specs

KV: 2000
Configuration: 12N14P
Stator Diameter: 22mm
Stator Length: 8m
Shaft Diameter: 3.175mm
Motor Dimension (Diameter x Length): Φ27.5×24.5mm
Weight(g): 45g
ldle current(10)@10v(A): 0.1A
No.of Cells(Lipo): 3-4S
Max Continuous current(A)180S: 18A (bursts of 22A)
Max Continuous Power(W)180S: 300W
Max. efficiency current: (2-6A)>80%
Internal resistance: 165mΩ

Note: this motor is capable of pulling 18-22a on a 6x4.5 prop on 4s. You may need a higher C rated battery and ESCs that can support this high amperage.

Read more

Lumenier FX2208-9 2000kv Multi-Rotor Motor

Product form
Free pickup in our shop(s)

SKU: FPV-2492

$60.00 $20.00 Excl. GST

$60.00 $20.00
Product available in stock, Express post same business day.

    • Local AU Stock, Fast Same-Day Dispatch or Pickup
    • Price Match & Quantity Discounts Available (Request Quote)
    • Purchase Orders & Net 30-Day Terms for Approved Accounts
    • Free Local Technical Support Before & After Purchase
    • Custom Industrial IoT Solutions & Project Assistance
    • Trusted by Australian Industry, Utilities, Agriculture & Government

    Description

    Lumenier FX2208-9 2000kv Multi-Rotor MotorDetails

    The Lumenier FX2208-9 2000kv Multi-Rotor motor was designed for those with speed in mind. This motor features a high 2000 KV giving you tons of top end power. Combine this motor with a high C rated LiPo battery and compatible ESCs for an extreme mini-multirotor racer.

    The FX2008-9 2000kv motor is best suited for 5-6" props on 4s, and 6-7" props on 3s LiPo batteries.

    The motor has a 5mm diameter prop adapter and comes with a spinner and mounting plate with screws. Rated for use with 3-4S LiPo.  Comes with 110mm long motor wires and male 3.5mm bullet connectors. This motor uses high quality parts and bearings.

    Specs

    KV: 2000
    Configuration: 12N14P
    Stator Diameter: 22mm
    Stator Length: 8m
    Shaft Diameter: 3.175mm
    Motor Dimension (Diameter x Length): Φ27.5×24.5mm
    Weight(g): 45g
    ldle current(10)@10v(A): 0.1A
    No.of Cells(Lipo): 3-4S
    Max Continuous current(A)180S: 18A (bursts of 22A)
    Max Continuous Power(W)180S: 300W
    Max. efficiency current: (2-6A)>80%
    Internal resistance: 165mΩ

    Note: this motor is capable of pulling 18-22a on a 6x4.5 prop on 4s. You may need a higher C rated battery and ESCs that can support this high amperage.

    Read more
