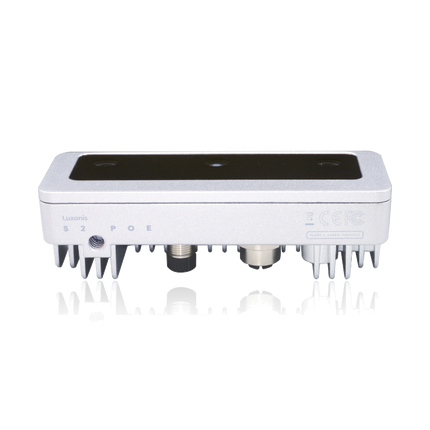

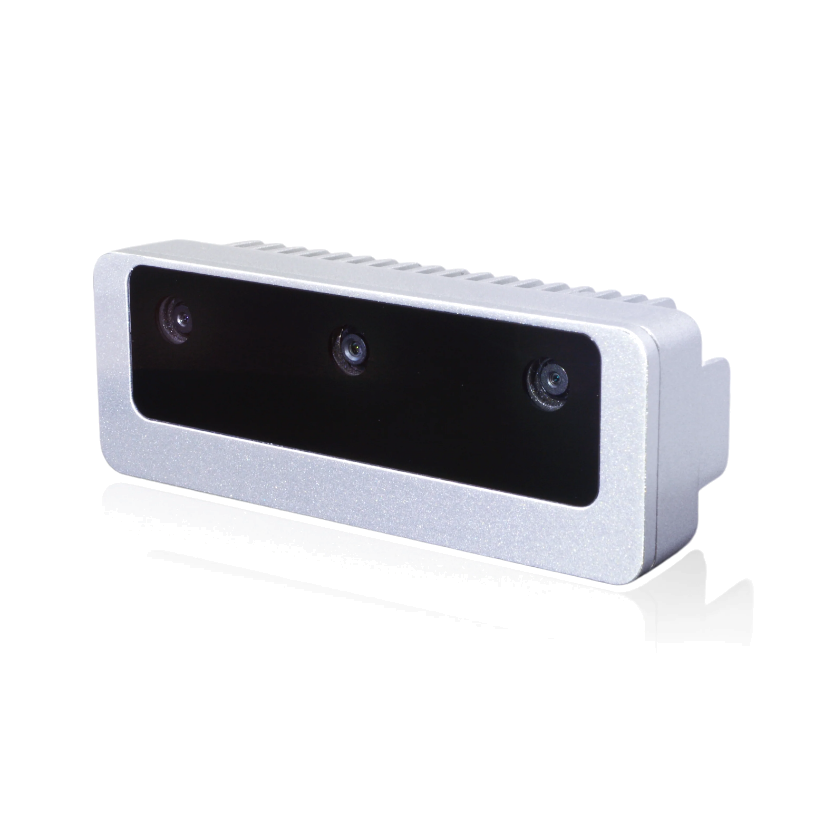

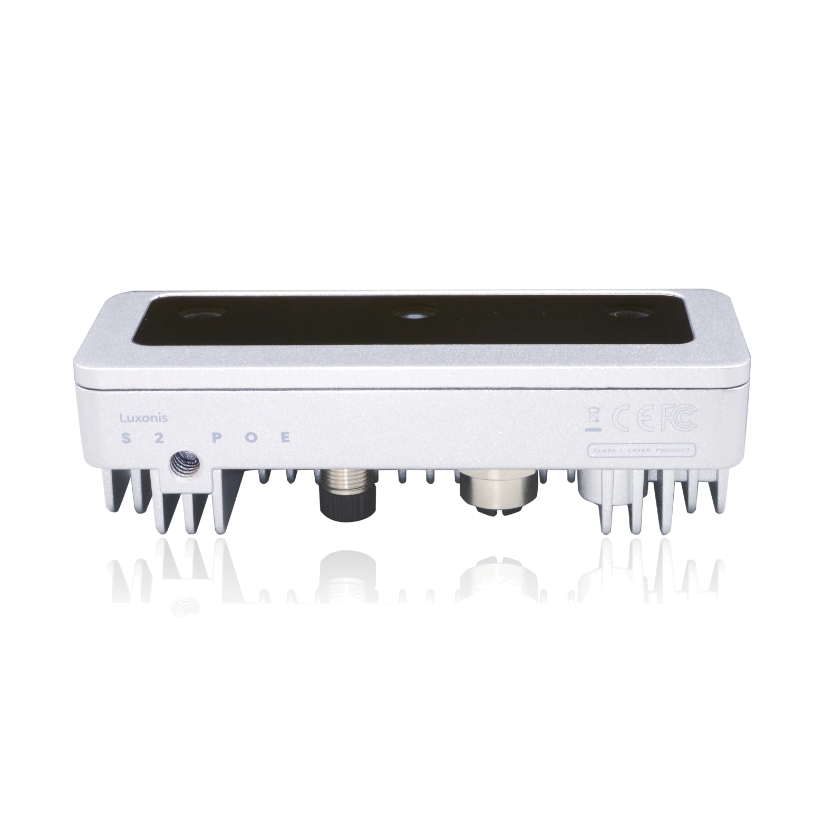

Luxonis OAK-D S2 PoE Depth AI Camera OAK POE
OAK-D S2 PoE is the ultimate camera for robotic vision that perceives the world like a human by combining stereo depth camera and high-resolution color camera with an on-device Neural Network inferencing and Computer Vision capabilities. It uses PoE for both power and GigE connectivity.

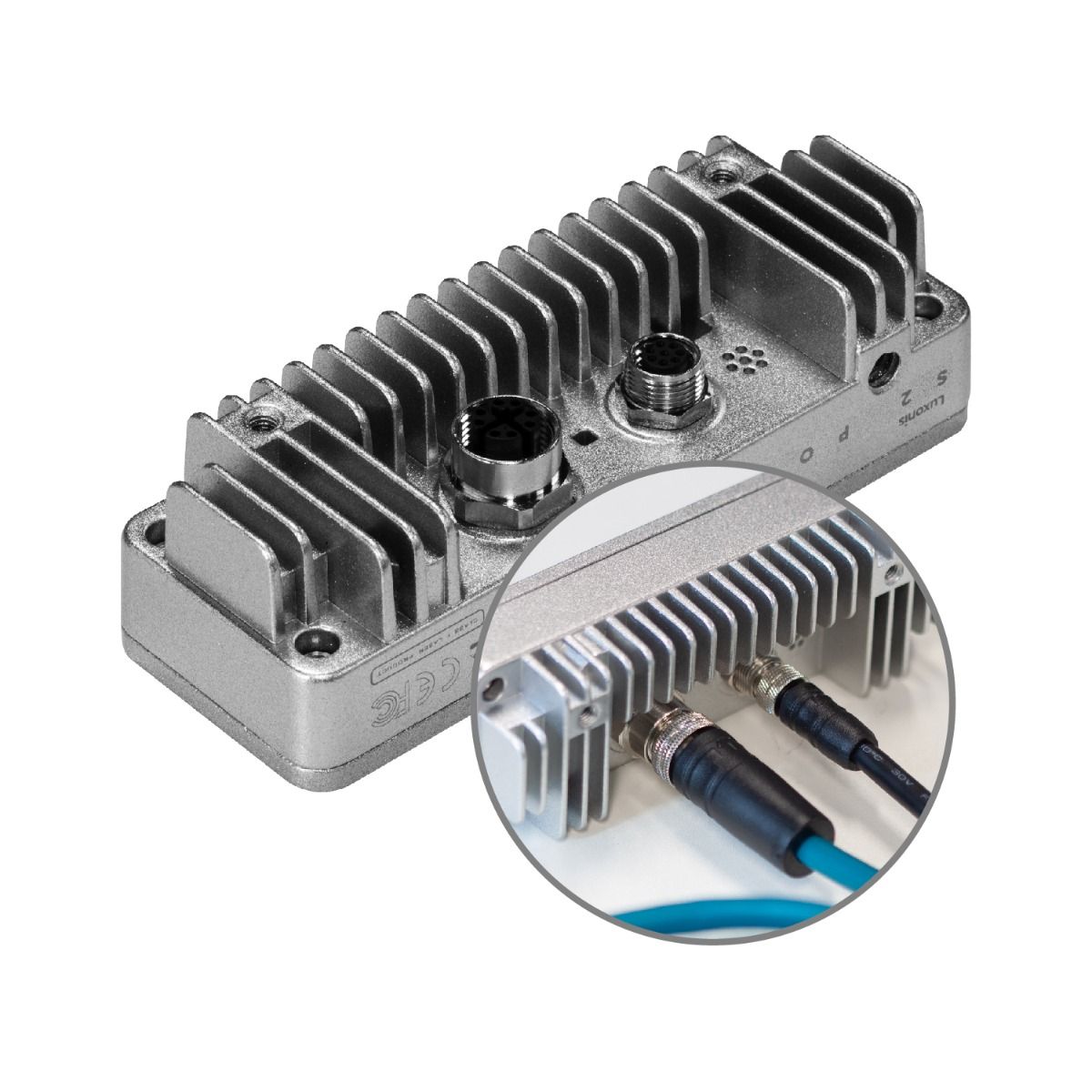

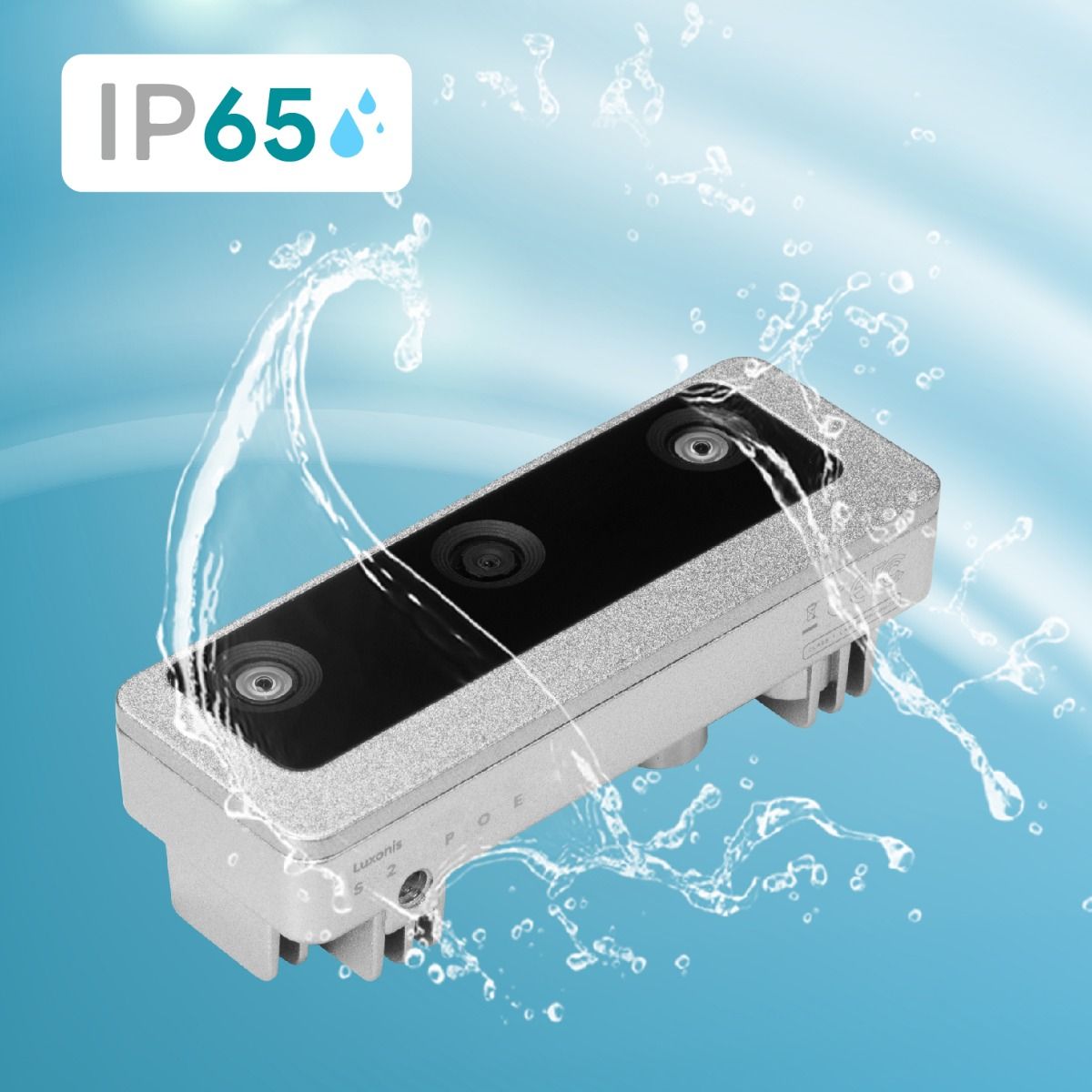

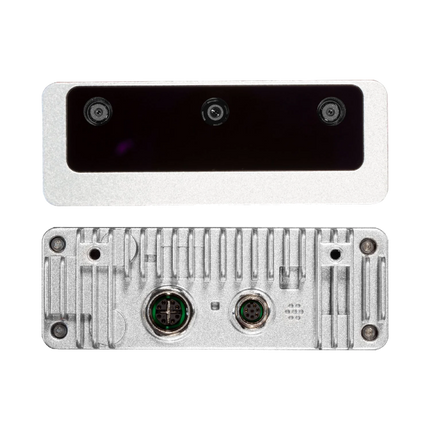

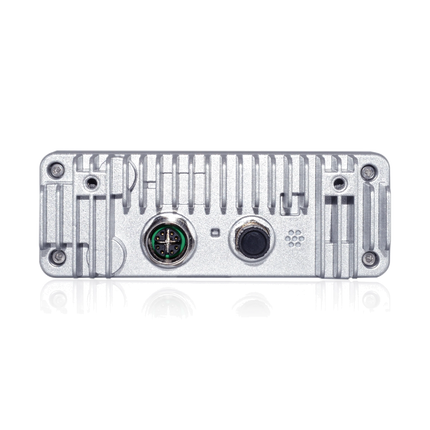

PoE connection allows cameras to communicate to other computers via networking protocols (TCP, UDP, HTTP, MQTT, etc.). As our PoE models feature device flash memory, you can also run your programs in standalone mode. OAK PoE cameras are housed in an rugged, IP-rated enclosure, which is required for industrial and outdoor use. Furthermore, this OAK camera offers industrial M12 PoE connector (instead of less-industrial RJ45) and an additional M8 connector for IO connectivity (USB2, FSIN, STROBE, 5V/GND, GPIO).
We suggest following Getting started with OAK PoE devices as the first steps after installation.
Features
- 4 TOPS of processing power (1.4 TOPS for AI - RVC2 NN Performance)
- Run any AI model, even custom architectured/built ones (models need to be converted)
- Encoding: H.264, H.265, MJPEG -4K/30FPS, 1080P/60FPS
- Computer vision: warp (undistortion), resize, crop via ImageManip node, edge detection, feature tracking. You can also run custom CV functions
- Stereo depth perception with filtering, post-processing, RGB-depth alignment, and high configurability
- IMU (Either BMI270 6-axis or BNO086 9-axis sensor)
- Object tracking: 2D and 3D tracking with ObjectTracker node
Specifications
| Central RGB Camera |
| Sensor |
IMX378 |
| DFOV / HFOV / VFOV |
81° /69° / 55° |
| Resolution |
12MP (4056x3040) |
| Focus |
FF: 50cm - ∞ |
| Max Framerate |
60 FPS |
| IR Sensitive |
With IR filter |
| Stereo Pair Cameras |
| Sensor |
OV9282 |
| DFOV / HFOV / VFOV |
89.5° / 80° / 55° |
| Resolution |
1MP (1280x800) |
| Focus |
FF: 19.6cm - ∞ |
| Max Framerate |
120 FPS |
| IR Sensitive |
With IR filter |

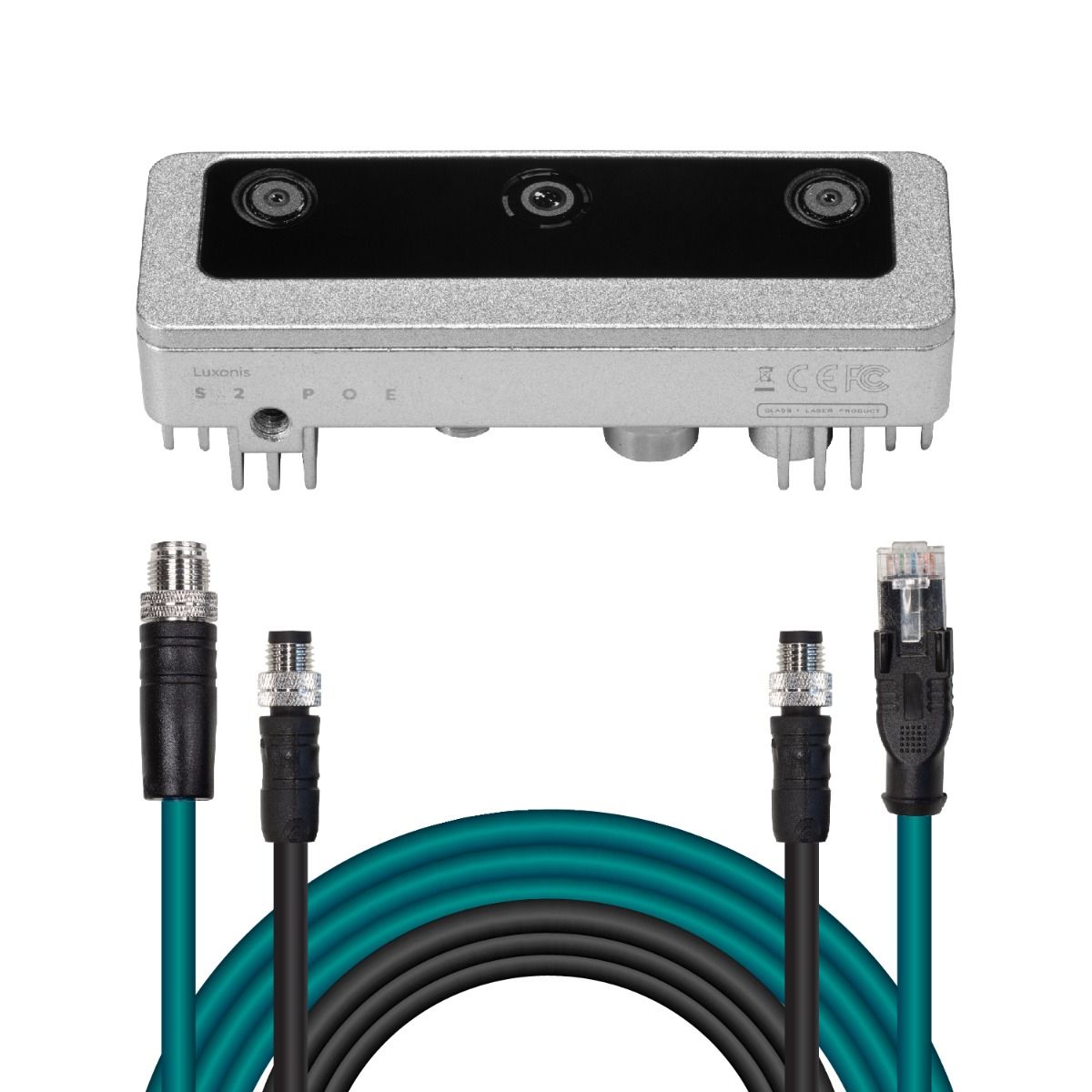

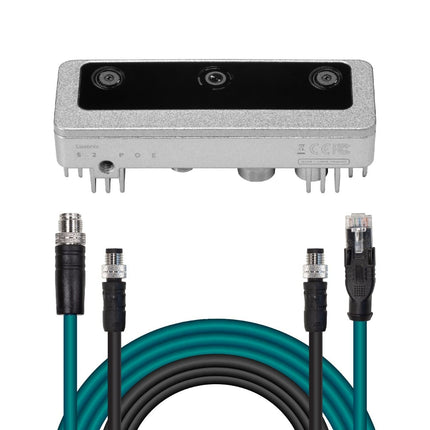

Package Including
- OAK-D S2 PoE camera
- M12 plug to RJ45 cable, 2m
- Cleaning cloth
