Description

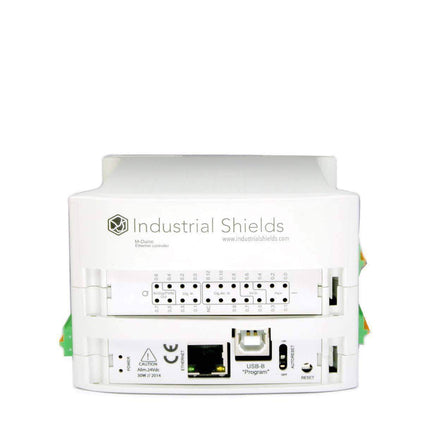

M-DUINO PLC Arduino Ethernet & WiFi & Bluetooth 21+ I/Os Analog/Digital PLUS
RTC, µSD, Ethernet, USB, Full/Half duplex, RS485, RS232, I2C, Modbus
Wi-Fi & Bluetooth LE.
Programmable industrial controller for automation, monitoring and control.
Programmable with Arduino IDE without licensing costs.

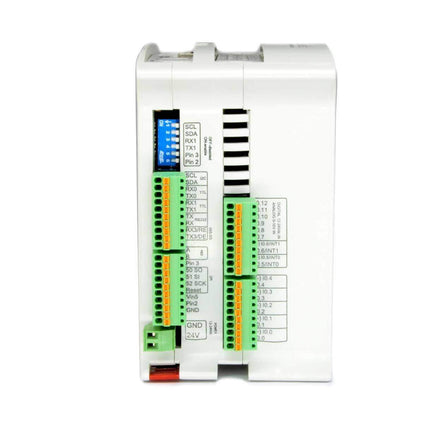

13x Inputs
6x Analog/Digital software configurable
7x Isolated Digital (2 with interrupts)

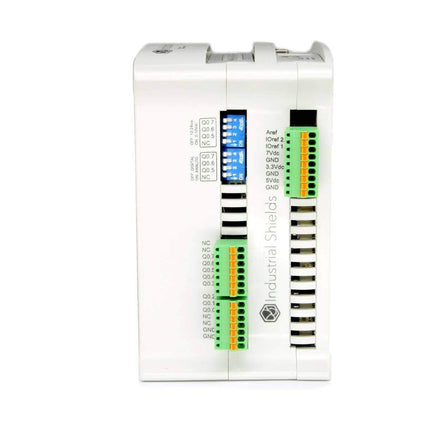

8x Outputs
5x Digital
3x Digital/PWM/analog configurable by software
Communications:
- (1x) WiFi & Bluetooth LE (based on ESP32)
– (1x) Ethernet port.
– (1x) USB port (type B).
– (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
– (1x) RS-232 port.
– (1x) HALF/FULL Duplex RS-485 port.
– (1x) SPI external port (Using MOSI, MISO, SS pins of Arduino)
– TCP IP / Modbus TCP. / Modbus RTU
– WebServer capacity (just through Ethernet)
– Industrial Protocols
Other technical specifications:
RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)
µSD Socket (using SPI port, chip select D53 pin).
100x75x115mm

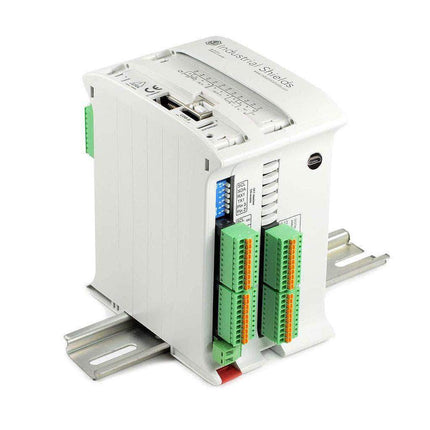

DIN-Rail mounting.
Max consum.: 1.2A
Flash Memory: 256kB (8kB for bootloader)
SRAM: 8kB
EEPROM: 4kB
Clock Speed: 16MHz
Modular PLC
This is the first equipment based on the Arduino technology designed for professional use. This PLC has 17I/Os. It also contains several communication ports which provide more flexibility and control. The GPRS Controllers family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…
Programming Software
This PLC can be programmed using the Arduino IDE platform. See the Documentation menu below to download the software for free.
Instantaneous connection and coding
The GPRS Controller is programmed through the USB ports. This PLC can also be programed through Ethernet port remotely. This offers and immediate access to program, maintain and control. Also you can continuously monitor the status for all the variables, inputs, outputs, etc. It is compatible with the Ardbox , M-duino and the Touchberry Pi with an instantaneous connection.
Documents:
