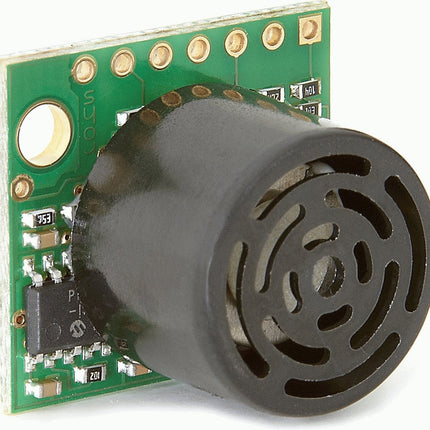

MB1000 LV-MaxSonar-EZ0 MaxBotix Ultrasonic Sensor
MB1000 LV-MaxSonar-EZ0 MaxBotix Ultrasonic Sensor
This MB1000 High-Performance Ultrasonic Rangefinder (LV‑MaxSonar‑EZ0) has the widest and most sensitive beam pattern of any unit from LV‑MaxSonar‑EZ sensor line. This makes the LV‑MaxSonar‑EZ0 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.
Product Specifications
- Resolution of 1 inch
- 20Hz reading rate
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Maximum Range of 254 inches (645 cm)
- Operates from 2.5-5.5V
- Low 2.0mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product

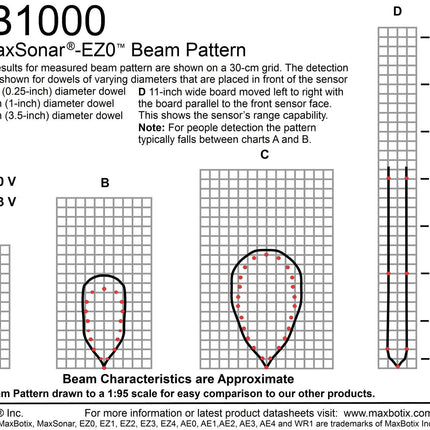

- Widest beam of the LV-MaxSonar-EZ sensors
- Great for people detection applications
Please refer to the Manufacturer's product web page (MB1000) for further details and documentations
