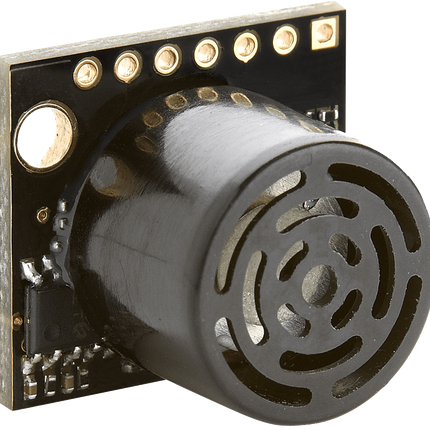

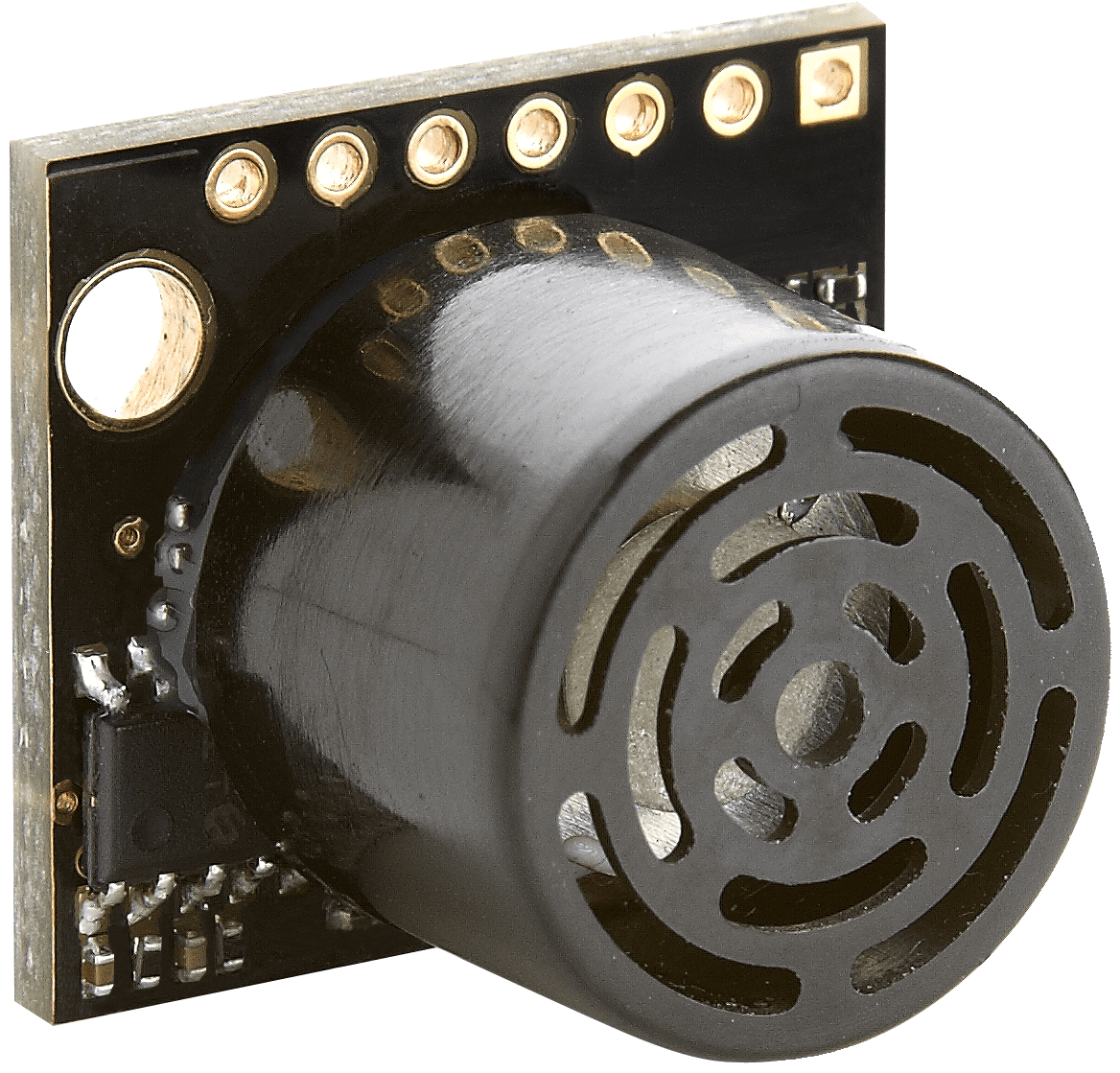

MB1003 HRLV-MaxSonar-EZ0 MaxBotix Ultrasonic Sensor
MB1003 HRLV-MaxSonar-EZ0 MaxBotix Ultrasonic Sensor
This MB1003 High-Performance Ultrasonic Rangefinder (HRLV‑MaxSonar‑EZ0) has the widest and most sensitive beam pattern of any unit from HRLV‑MaxSonar‑EZ sensor line. This makes the HRLV‑MaxSonar‑EZ0 an excellent choice for use where high sensitivity, wide beam, or people detection is desired.
Product Specifications
- Resolution of 1‑mm
- 10Hz reading rate
- Internal temperature compensation
- Cost-effective solution where precision range-findings are needed
- Sensor component allows users to lower the cost of their systems without sacrificing performance
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS compliant
- Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
- Virtually no sensor dead zone, objects closer than 30 cm will typically range as 30 cm
- Maximum range of 5000 mm (195 inches)
- Tolerates outside noise sources
- Operates from 2.5V-5.5V
- Low 3.1mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product
- Operational Temperature from -0C to +65C (+32F to +149F)
- Real-time automatic calibration (voltage, humidity, ambient noise)
- Option external temperature compensation HR‑MaxTemp
- Firmware filtering for better noise tolerance and clutter rejection

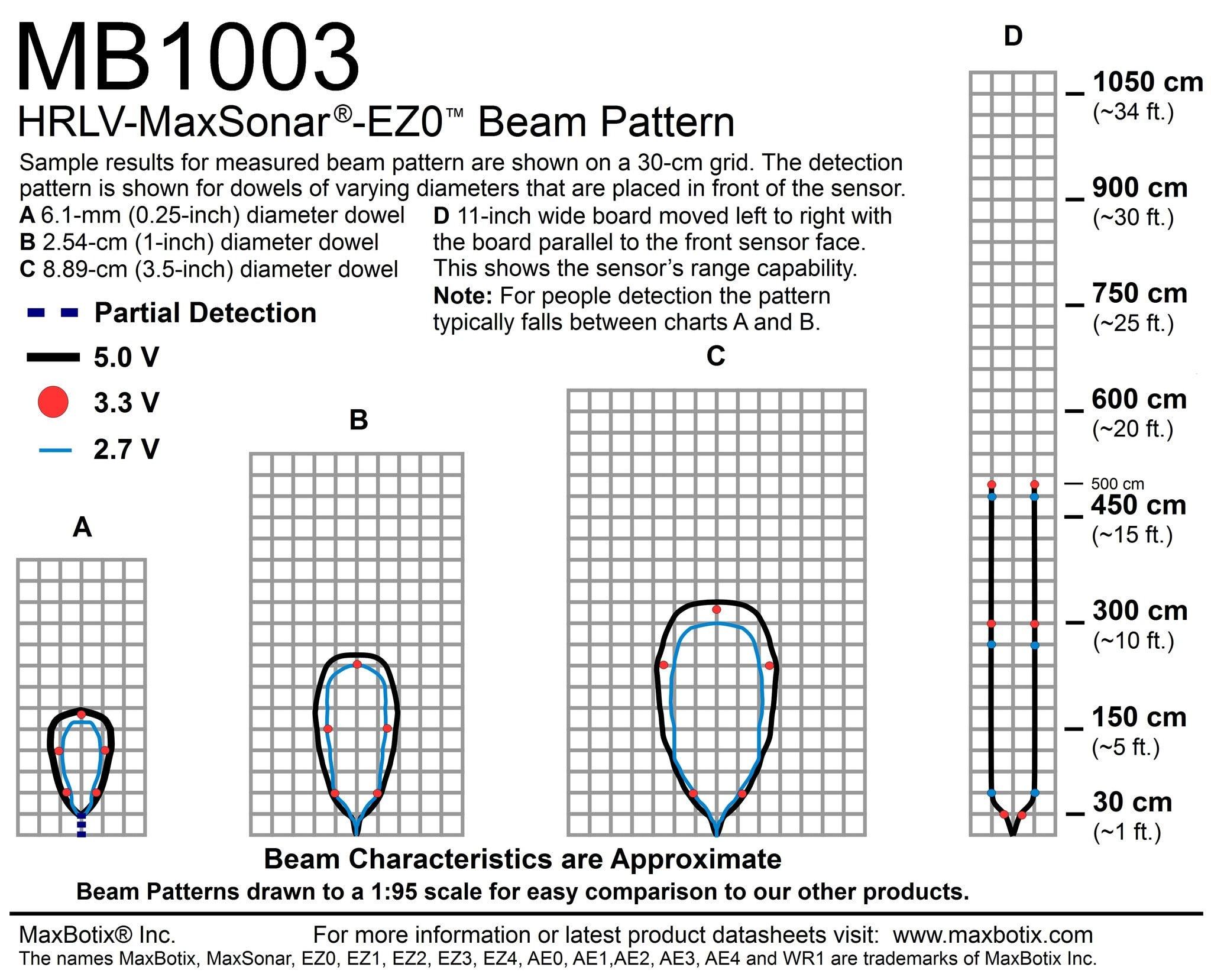

- Widest beam of the HRLV-MaxSonar-EZ sensors
- Great for people detection applications
Please refer to the Manufacturer's product web page (MB1003) for further details and documentations
