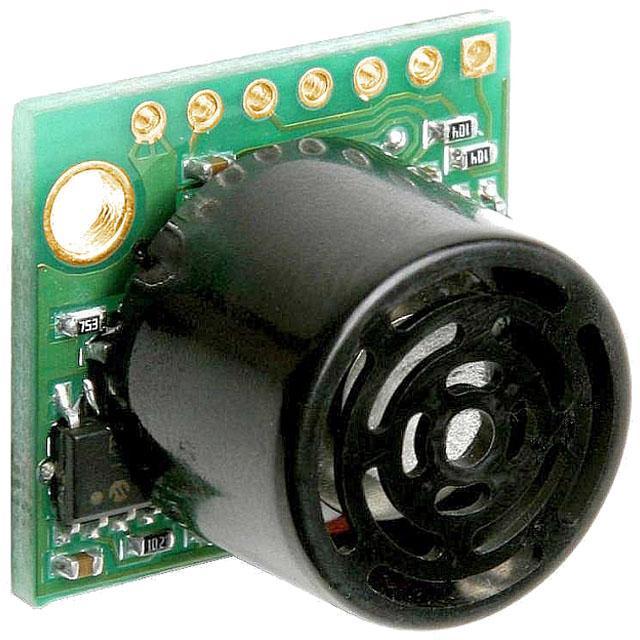

MB1004 LV-ProxSonar-EZ0 MaxBotix Ultrasonic Sensor
The MB1004 LV-ProxSonar-EZ0 ultrasonic proximity sensor detects objects in a calibrated detection zone. The LV‑ProxSonar‑EZ sensors report when an object (such as a person) enters the detection zone. The target is released after leaving the LV‑ProxSonar‑EZ detection zone.
The LV‑ProxSonar‑EZ0 has a detection zone of ~7 feet and will allow for 6+ simultaneous sensors.
Product Specifications
-
- Resolution of 1 inch
- ~2.5 second target acquire time*
- ~1.5 second target release time*
- Automatic multi-sensor operation
- People sensor
- Maximum reported range of 254 inches (645 cm)

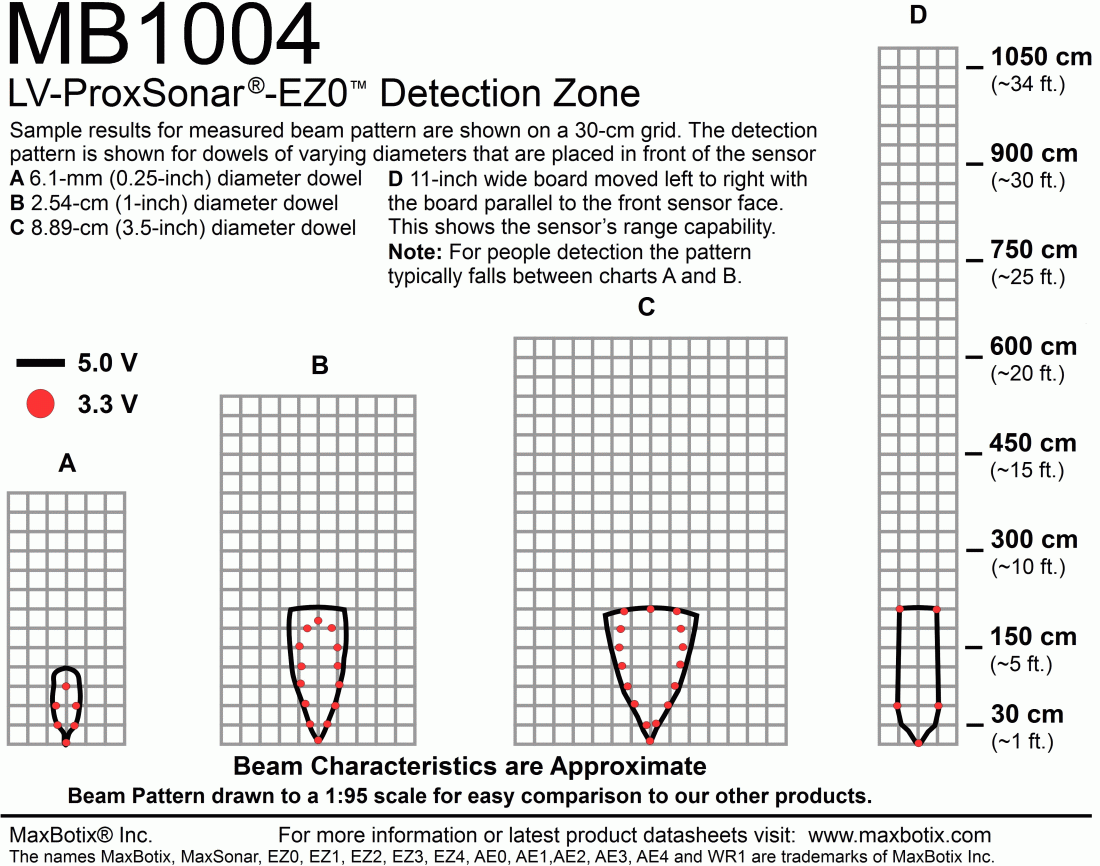

- ~7 foot proximity detection zone (84 inches or 213 cm)
- Run up to 6+ sensors in the same environment
- Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from sensor outputs: Serial and Pulse Width
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Operates from 2.5-5.5V
- Low 2.0mA average current requirement
- Small, lightweight module
- Designed for easy integration into your project or product
- Longest detection zone
