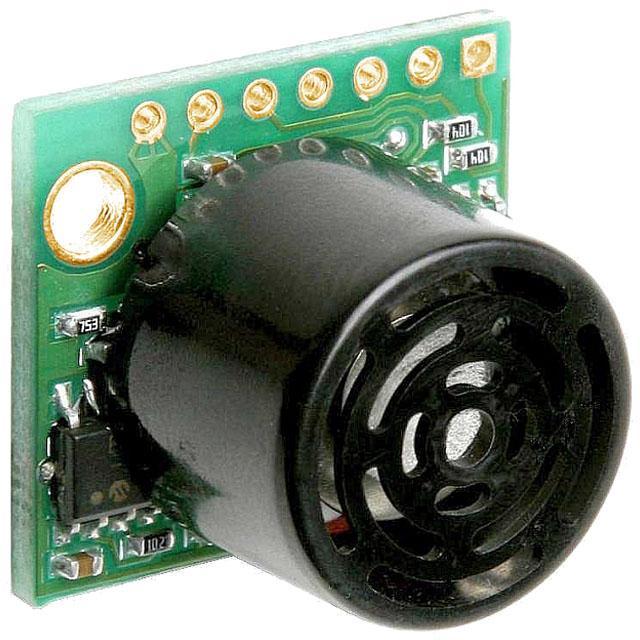

MB1010 LV-MaxSonar-EZ1 MaxBotix Ultrasonic Sensor
The MB1010 LV‑MaxSonar‑EZ1 is a great choice for use where sensitivity is needed along with side object rejection.
The original LV‑MaxSonar‑EZ products were the first low cost, high-quality ultrasonic distance sensors to offer easy to use outputs, no sensor dead zone, calibrated beam patterns, stable range readings, low power demands, and a host of other features.
The LV‑MaxSonar‑EZ1 is our most popular indoor ultrasonic sensor and is a good, low-cost starting place for a customer not sure of which LV‑MaxSonar‑EZ sensor to use.
Product Specifications
- Resolution of 1 inch
- 20Hz reading rate
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Maximum Range of 254 inches (645 cm)
- Operates from 2.5-5.5V
- Low 2.0mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product

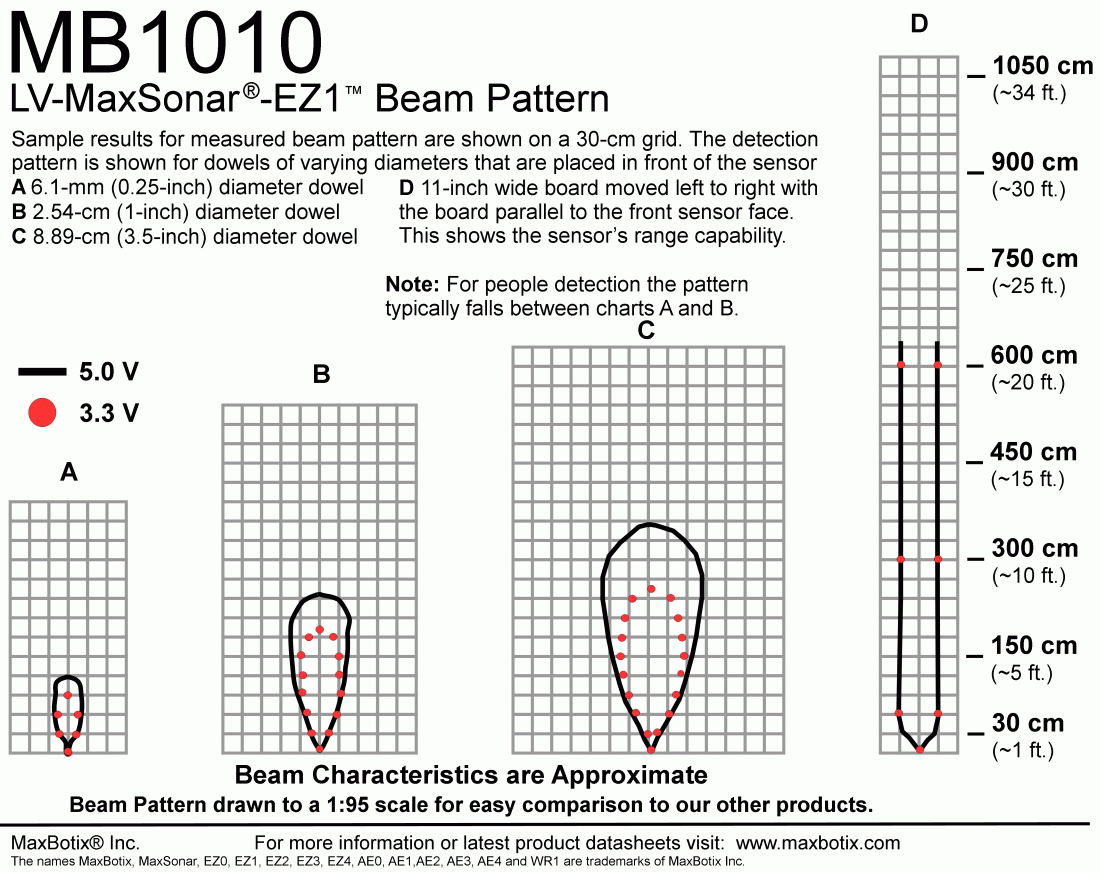

- Widest beam of the LV-MaxSonar-EZ sensors
- Our most popular indoor ultrasonic rangefinder
- Our low cost, all-around sensor that is excellent for many projects
- Best beam and sensitivity balance for the LV-MaxSonar-EZ sensors
