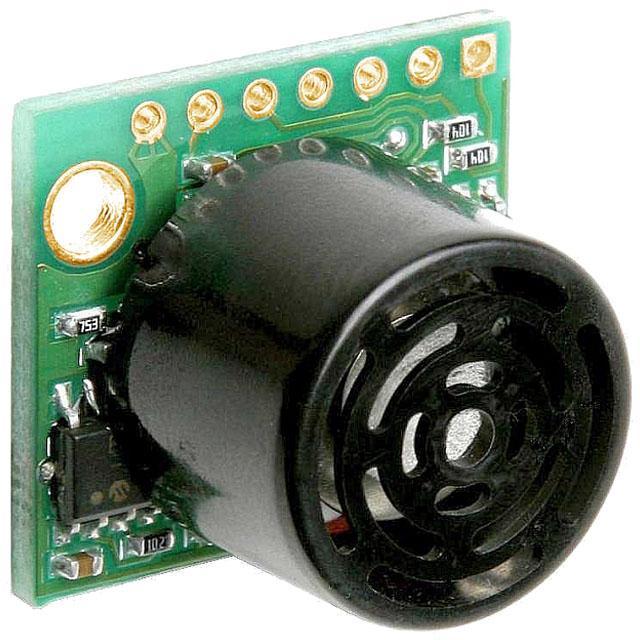

MB1040 LV-MaxSonar-EZ4 MaxBotix Ultrasonic Sensor
MB1040 is the fantastically easy to use sensor from Maxbotix. We are extremely pleased with the size, quality, and ease of use of this little range finder. The sensor provides very accurate readings of 0 to 255 inches (0 to 6.45m) in 1-inch increments with little or no dead zone

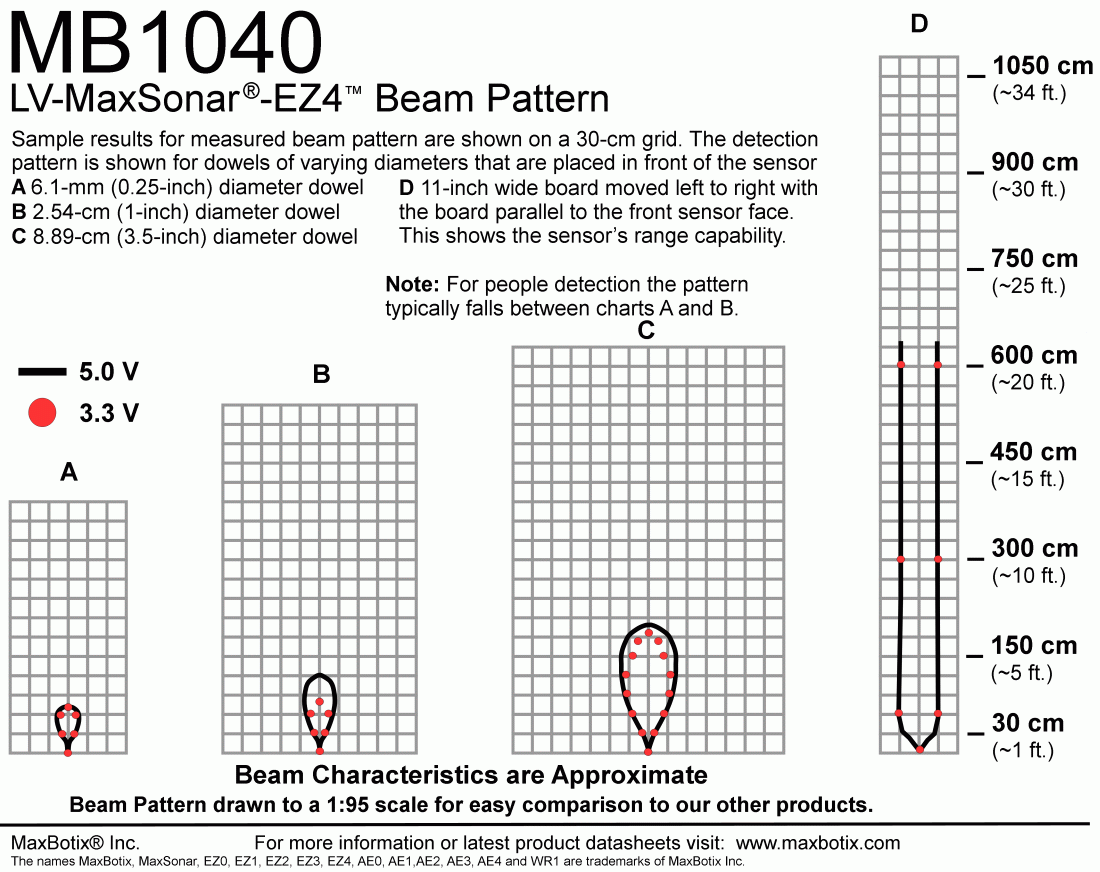

Maxbotix is offering the EZ0, EZ1, EZ2, EZ3, and EZ4 with progressively narrower beam angles allowing the sensor to match the application. Please see beam width explanation below.
Control up to 10 sensors with only two pins!
The LV-MaxSonar-EZ4 is the narrowest beam width sensor that is also the least sensitive to side objects offered in the LV-MaxSonar-EZ sensor line. The LV-MaxSonar-EZ4 is an excellent choice when only larger objects need to be detected.
Product Specifications
- Resolution of 1 inch
- 20Hz reading rate
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width
- Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
- Maximum Range of 254 inches (645 cm)
- Operates from 2.5-5.5V
- Low 2.0mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product
- Narrowest beam of the LV-MaxSonar-EZ sensors
- Best for large object detection applications
