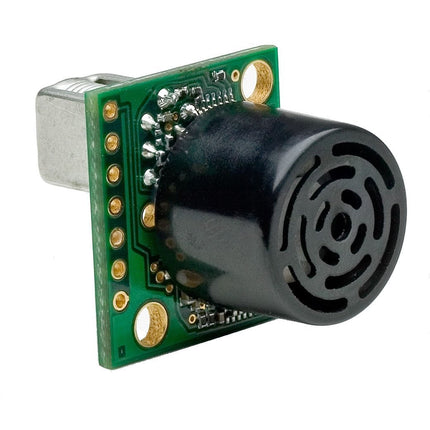

MB1202 I2CXL-MaxSonar-EZ0 MaxBotix Ultrasonic Sensor

MB1202 I2CXL-MaxSonar-EZ0 MaxBotix Ultrasonic Sensor

The MB1202 ICXL-MaxSonar-EZ sensors now feature an I2C bus. This allows for easy I2C integration and multisensor operation using a single bus.

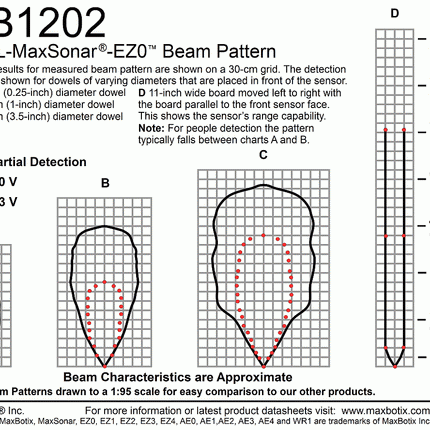

The I2CXL‑MaxSonar‑EZ0 offers the widest and most sensitive beam pattern of the I2CXl-MaxSonar-EZ sensors that are offered. This makes the I2CXL-MaxSonar-EZ0 an excellent choice wherever wide beam detection, reliable people detection, or reliable small obstacle detection are required.

The sensor is small in size, yet the high output acoustic power combined with continuously variable gain, real-time background automatic calibration, real-time waveform signature analysis, and real-time noise rejection algorithms results in virtually noise free distance readings for most users. This holds true even in the presence of many of the various acoustic or electrical noise sources. The I2CXL‑MaxSonar‑EZ sensor line is factory calibrated to match the sensor beam patterns and provides a long-range detection zone.

Product Specifications

• Resolution of 1 cm
• Up to 40Hz reading rate
• Simple I2C bus interface
• Easy control of multiple sensors
• Control up to 127 sensors using two wires
• 42kHz Ultrasonic sensor measures distance to objects
• RoHS Compliant
• Virtually no dead zone, objects closer than 25 cm range as 25 cm
• Operates from 3.0-5.5V
• Low 4.4mA average current requirement
• Small, lightweight module
• Designed for easy integration into your project or product
• Operational Temperature from 0C to +65C (32F to +149F)
• Real-time automatic calibration (voltage, humidity, ambient noise)
• Firmware filtering for better noise tolerance and clutter rejection
• 200,000+ Hours Mean Time Between Failure
• Widest beam pattern in I2CXL-MaxSonar-EZ sensor family
