MB7060 XL-MaxSonar-WR MaxBotix Ultrasonic Sensor
MB7060 XL-MaxSonar-WR MaxBotix Ultrasonic Sensor
Ranges from 20cm to 765cm with a 10Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to the closest target.
The MB7060 XL-MaxSonar-WR is Maxbotix most popular weather resistant sensor designed for outdoor detection and ranging.
The weather resistant XL-MaxSonar-WR is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.
High output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The XL‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long range detection zones.
MB7052 is an advanced filtered version of this sensor.
MB7062 is the stability filter version of this sensor.
MB7066 is an extra-long range version of this sensor.
MB7070 is an analog envelope output version of this sensor.
Models with additional chemical resistance are available
The F-Option design modification provides Maxbotix weather resistant sensors with extra protection against corrosive chemical environments. Add F-Option above when ordering.
Product Specifications
- Resolution of 1 cm
- 10Hz read rate
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant

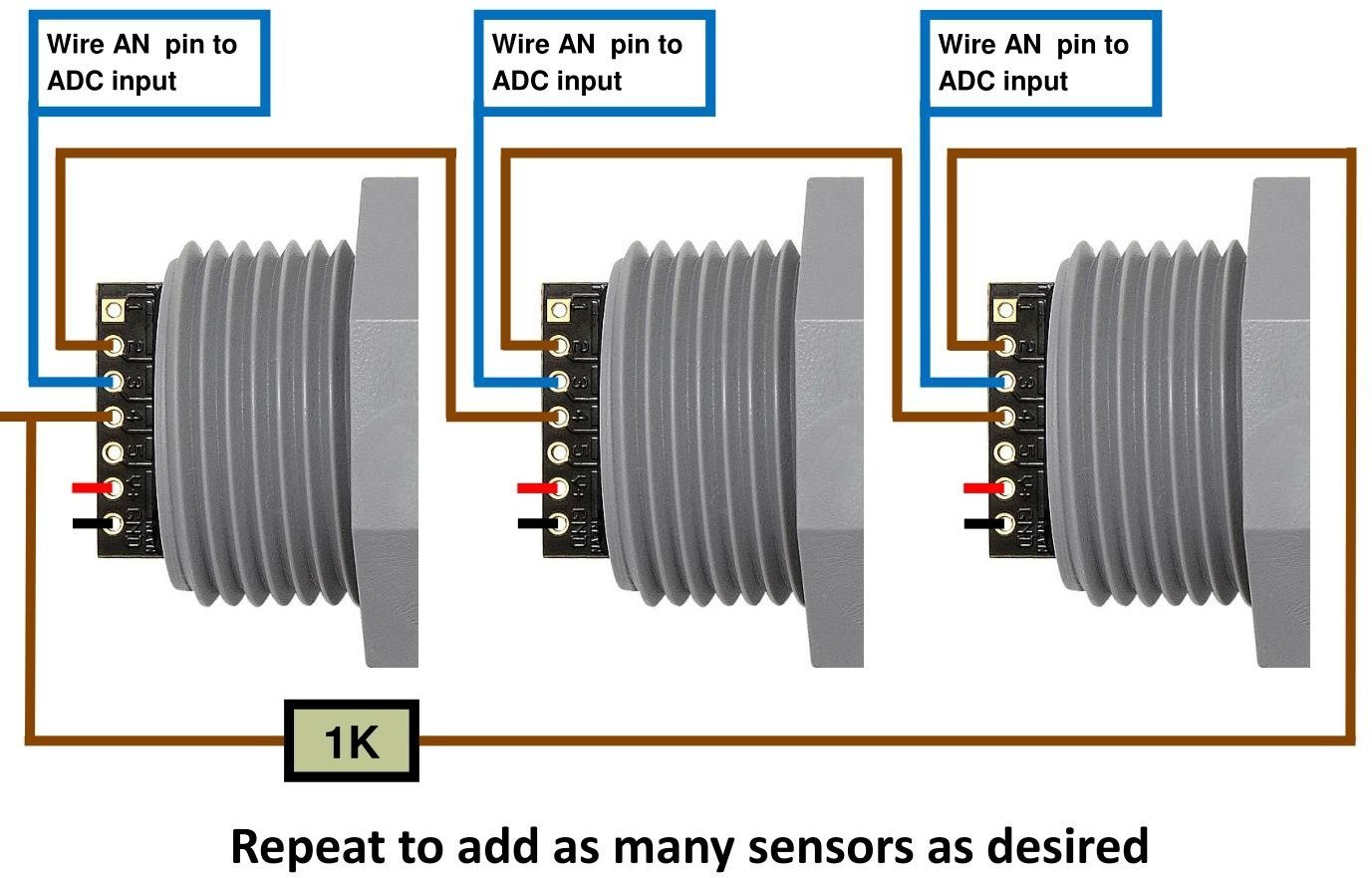

- Read from all 3 select sensor outputs: Analog Voltage, Serial, Pulse Width
- Operates from 3.0-5.5V
- Low 3.4mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product
- Operational Temperature from -40˚C to +70˚C (-40˚F to +160˚F)
- Real-time automatic calibration (voltage, humidity, ambient noise)
- Firmware filtering for better noise tolerance and clutter rejection
- 200,000+ Hours Mean Time Between Failure
- Weather Resistant (IP67), optional Chemical Resistant F-Option

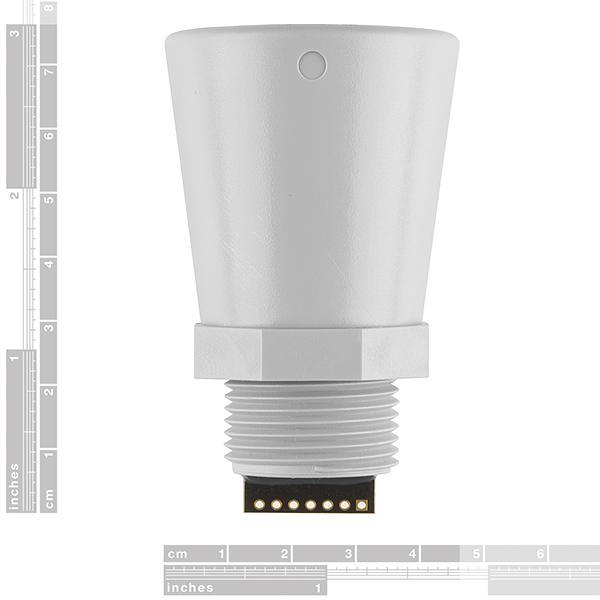

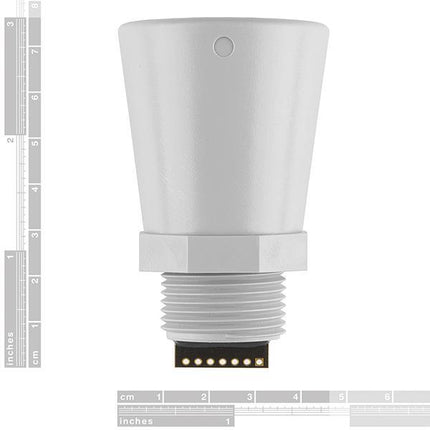

- Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4″ National Pipe Thread Straight)
- Maxbotix most popular outdoor, weather resistant, ultrasonic sensor
- Maximum range of 765 cm (300 inches)

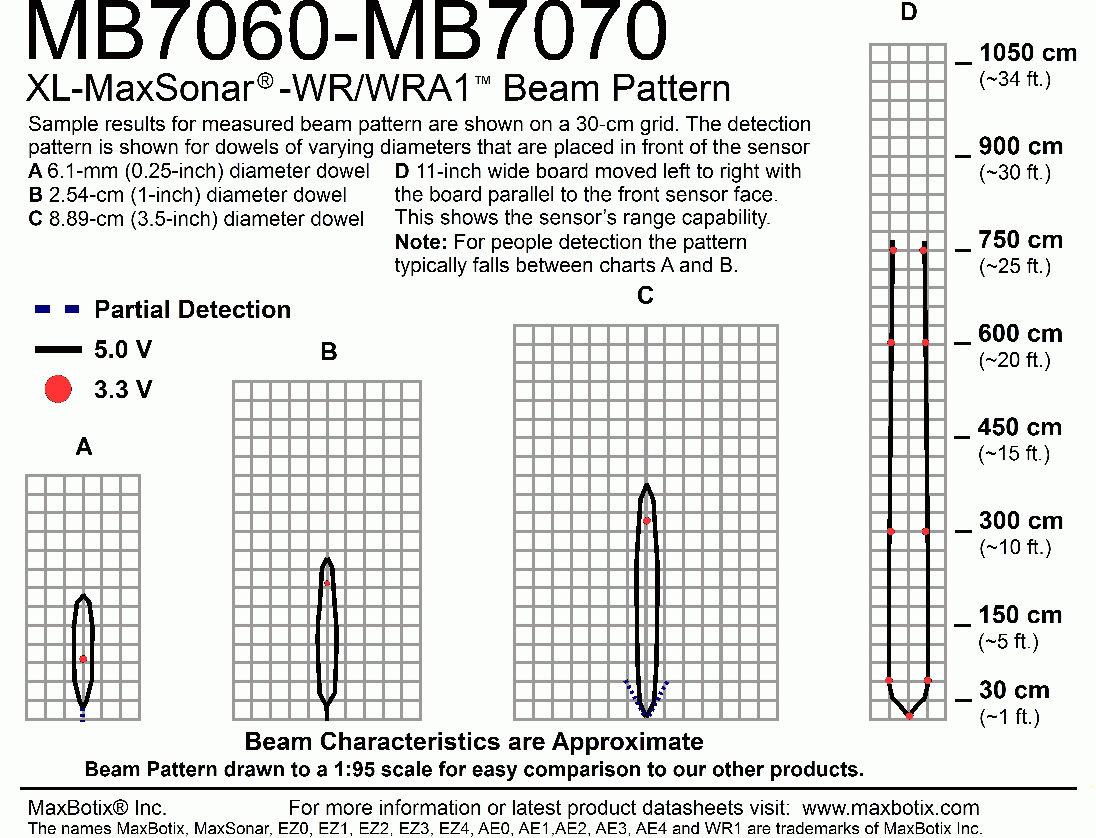

- Long range, narrow detection zone
