High sensitivity. Ranges from 500mm to 9999mm with a 0.6Hz read rate. Pulse-width, analog voltage, and RS232 serial. Reports range to the closest target.

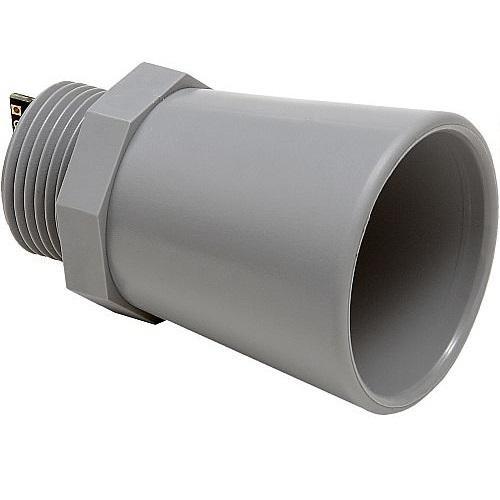

The MB7563 weather-resistant SCXL-MaxSonar-WR self‑cleaning sensor is a rugged ultrasonic sensor component module. This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing. The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.

The MB7563 features a self-cleaning transducer to remove condensation and ice buildup when operating in cold conditions. The sensor accurately applies temperature compensation to every reading, using either the integrated temperature sensor or the optional external temperature sensor (HR-MaxTemp).

The MB7563 SCXL-MaxSonar-WRLS self‑cleaning ultrasonic sensor features a maximum range of 10 meters to large targets. The MB7563 is Maxbotix most sensitive long-range sensor in the SCXL‑MaxSonar‑WR self‑cleaning sensor line.

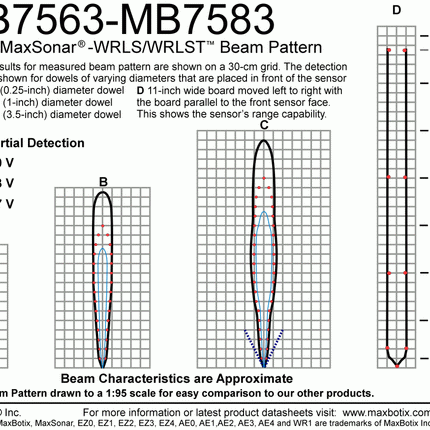

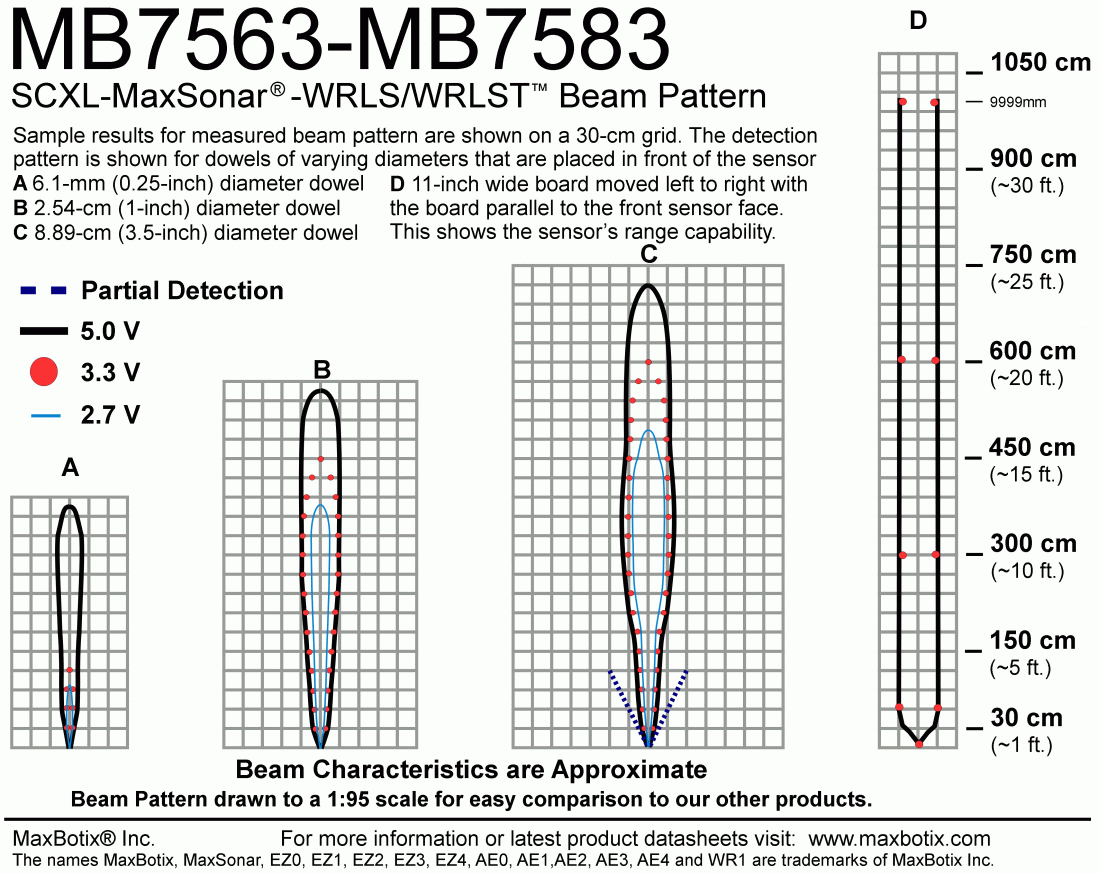

High output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings. This holds true even in the presence of many of the various acoustic or electrical noise sources. The SCXL‑MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.

MB7583 is the TTL version of this sensor.

Models with additional chemical resistance are available

The F-Option (IP-68) design modification provides Maxbotix weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP-68) when ordering.

Product Specifications

• Resolution of 1-mm
• Self‑cleaning transducer
• 0.57Hz read rate
• Internal temperature compensation
• 42kHz ultrasonic sensor measures distance to objects
• RoHS Compliant
• Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
• Virtually no sensor dead zone, objects closer than 50cm range as 50cm
• Operates from 2.7-5.5V
• Low 68mA average current requirement
• Small, light weight module
• Designed for easy integration into your project or product
• Operational temperature -40°C to +65°C (-40°F to +149°F)
• Real-time automatic calibration (voltage, humidity, and ambient noise)
• Firmware filtering for excellent noise tolerance and clutter rejection
• Weather resistant (IP67), optional chemical resistant F-Option
• Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
• Long, narrow detection zone
• Recommended for long-range, soft-target detection and measurement
• Maximum range of 10 meters (394 inches)
