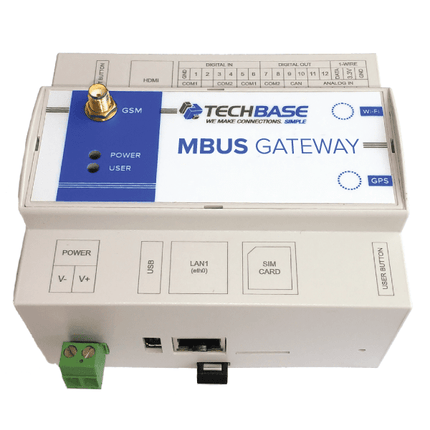

MBus Gateway - Programmable M-BUS to Modbus TCP/MQTT/SNMP IoT Converter

Description

MBus Gateway - Programmable M-BUS to Modbus TCP/MQTT/SNMP IoT Converter

MBUS Gateway is designed by TECHBASE for easy integration of M-BUS and TCP/MQTT/SNMP networks. With this device, M-BUS slave devices can be seamlessly added to an existing Modbus TCP network. It also has a remote web access panel that allows you to manage groups of devices. That makes integration customizable and easy.

TECHBASE provides solutions for industrial automation, telemetry, remote access and integration with IT systems.

Additional features for MBus Gateway:

  • Protocol and Interface Converter
  • Data Logger
  • Embedded Web Server
  • Embedded Computer
  • Telemetry/IoT Module
  • PLC
  • Industrial Modem and GPRS, 3G, 4G/LTE Router
  • I/O Expansion Module
  • GPRS, 3G, 4G/LTE Notify Module
  • Access via Website (Visualize)
  • GPS

Options Available:

  1. MBus Gateway RTU 10:  M-Bus - Modbus RTU, up to 10 M-Bus Slaves
  2. MBus Gateway RTU 60:  M-Bus - Modbus RTU, up to 60 M-Bus Slaves
  3. MBus Gateway RTU 200:  M-Bus - Modbus RTU, up to 200 M-Bus Slaves
  4. MBus Gateway RTU 400:  M-Bus - Modbus RTU, up to 400 M-Bus Slaves
  5. MBus Gateway TCP 10:  M-Bus - Modbus TCP, up to 10 M-Bus Slaves
  6. MBus Gateway TCP 60:  M-Bus - Modbus TCP, up to 60 M-Bus Slaves
  7. MBus Gateway TCP 200:  M-Bus - Modbus TCP, up to 200 M-Bus Slaves
  8. MBus Gateway TCP 400:  M-Bus - Modbus TCP, up to 400 M-Bus Slaves

Additional Options:

  • MQTT
  • Data Logger
  • e-mail Gateway
  • ZigBee (ZigBee Gateway + MQTT)
  • SNMP (SNMP Gateway + MQTT)
  • SMS (SMS Gateway + 3G Modem + MQTT)
Technical specification
Ethernet Interface
Protocols Modbus TCP, MQTT, SNMP
Ethernet ports Up to 2
Speed 100 MBit/s
Connector RJ45
Serial Interface
Protocols Modbus RTU/ASCII Master/Slave
Serial ports 1/2/4/8
Serial port communication RS-232/485
Connector Screw terminal
RS-485 Data Direction Control Yes
Isolation Protection Overvoltage protection transil bidirectional 24V DC, Peak 600W
Serial Interface Signals
RS-232 TxD, RxD, GND
RS-485 Data+, Data-
MBUS interface
MBUS slave devices Up to 400
Interface M-; M-; M+; M+; +24V
Connector Screw Terminal Block
Baudrate 300 to 19200 baud/sec
Surge / Overvoltage protection 24V peak 600W/1ms (up to 3 devices)
43V peak 600W/1ms (4 and more devices)
Optoisolation up to 3 devices 2.5kV
Optoisolation up to 4-10 devices M-BUS - RS-232: 100V AC/DC
Optoisolation up to 11-400 devices M-BUS - RS-232: 100V AC/DC
Power Supply - RS 232: 100V AC/DC
Additional MBUS power input Up to 10 devices: not necessary
11-400 devices: 20-35 Vdc
Software
Konfiguracja Web Panel, SSH console, Telnet console, serial console
Software Linux (kernel 4.4+), iMod, iModCloud
Network Protocols TCP, UDP, HTTP, SMTP, NTP, DNS, DHCP Client, SNMPv1 (agent), SNMPv2 (agent), ARP, Telnet
Multi-master and Multi-drop Master mode: 128 TCP laves/servers
Slave mode: 256 TCP masters/clients
Mechanical characteristics
Storage Internal 4GB EMMC, External USB Storage
Casing ABS
Dimensions MBUS Gateway 10: 142.3 x 91 x 62mm
MBUS Gateway 60, 200, 400: 213 x 91 x 62mm
Montage DIN
Working conditions
Working temp -25 ~ 80°C
Storage temp -25 ~ 80°C
Relative Humidity 5 ~ 95% RH
(non-condensing)
Power
Power supply voltage 7 ~ 30 V DC
Recommended 12V DC 1A
Power supply connector Screw terminal
Power consumption without modem "2 W - 5 W
(typically 3 W)"
Power consumption with GPRS modem "4 W - 10 W
(typically 5 W)"



Documentations:

Direct link: http://documents.techbase.eu/doku.php?id=en:start
login: techbaseclient
password: aurora2014

Link to download MBus Gateway Datasheet

Link to download MBus Gateway TCP Quick Start Guide

Link to download MBus Gateway RTU Quick Start Guide

Link to download MQTT Gateway Guide



Read more
