MIC23099 click - MikroElektronika Single AA/AAA Battery Cell Regulator
MIC23099 click carries the MIC23099, a single AA/AAA cell step-down/step-up regulator with battery monitoring. The click is designed to run on a 3.3V power supply. It communicates with the target microcontroller over the following pins on the mikroBUS™ line: CS, INT.
How the click works

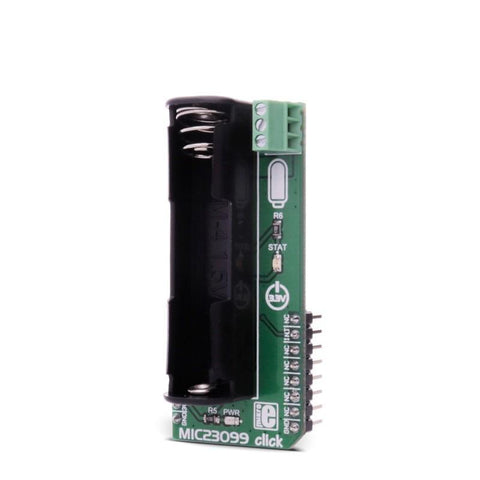

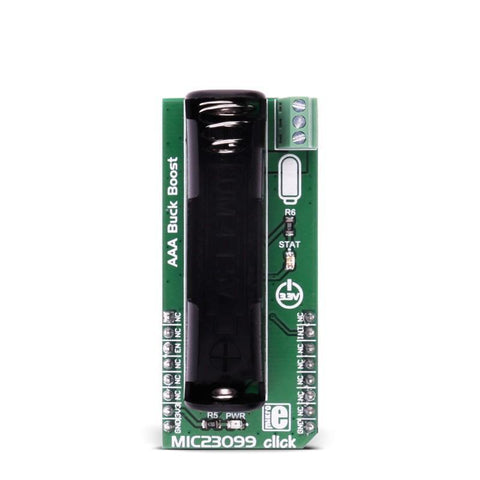

MIC23099 click has three screw terminals (Buck 1V, GND and Boost 3V3) which are outputs for connecting some external consumer.
The low-battery level is indicated by an onboard STAT LED.
Note: The MIC23099 is not a battery charger and it needs a battery to work properly. The battery is not included.
MIC23099 features
The MIC23099 is a high-efficiency, low-noise, dual output, integrated power management solution for single-cell alkaline or NiMH battery applications.
To minimize switching artefacts in the audio band, both the converters are designed to operate with a minimum switching frequency of 80 kHz for the buck and 100 kHz for the boost. The high-current boost has a maximum switching frequency of 1 MHz, minimizing the solution footprint.
The MIC23099 incorporates both battery management functions and fault protection.
Specifications
| Type |
Voltage regulator |
| Applications |
Voltage regulation for portable devices with AA or AAA batteries |
| On-board modules |
MIC23099 - a high-efficiency, low-noise, dual output, integrated power management solution for single-cell alkaline or NiMH battery applications |
| Key Features |
The low-battery level is indicated by an onboard STAT LED |
| Interface |
GPIO |
| Input Voltage |
3.3V |
