Micro pH Kit - Atlas Scientific

The Micro pH Probe can be fully submerged in freshwater or saltwater, up to the SMA connector indefinitely.

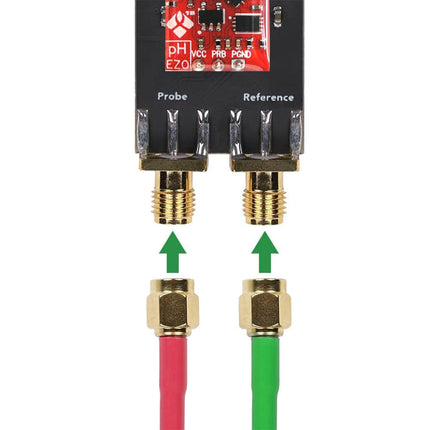

 The Atlas Scientific Micro-pH Probe was designed for microfluidics and other small applications. Because the probe is so small, it had to be built as a half cell pH probe. A ½ cell probe works just like a normal pH probe, but it consists of two separate pieces, the working electrode and the reference electrode. The supplied connector board merges the two halves into one, just like a normal pH probe.

Specifications:

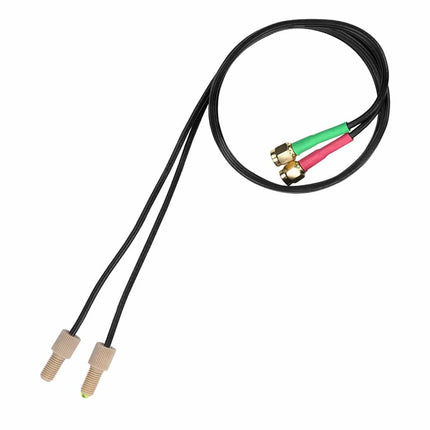

  • 1 Micro pH Probe
  • 1 Micro Reference Probe

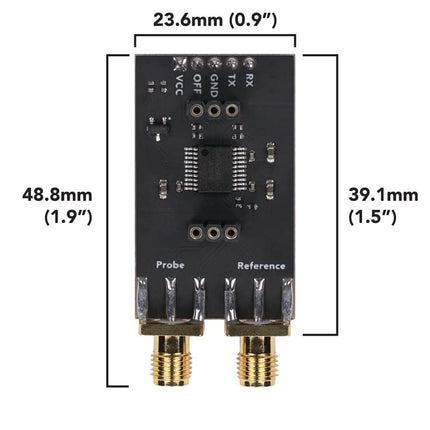

  • 1 Half Cell SMA Breakout Board
  • Reads: pH
  • Range: 0 − 14
  • Resolution: +/- 0.001
  • Accuracy: +/- 0.002
  • Response time: 95% in 1s
  • Temperature range: °C -5 − 90 °C
  • Max pressure: 150 PSI
  • Max depth: 60m (197 ft)
  • Connector: Male SMA
  • Cable length: 61cm (2′)
  • Internal temperature sensor: No

Downloads

Micro pH Probe Datasheet

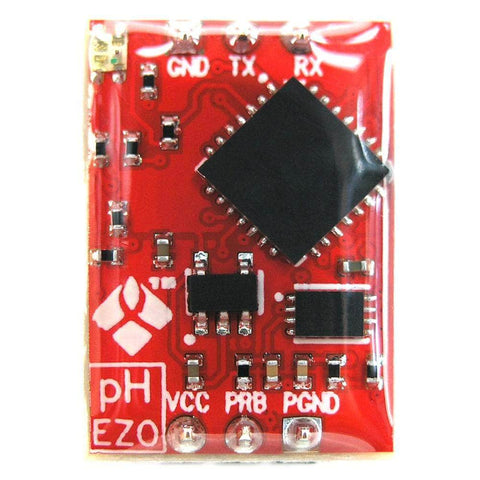

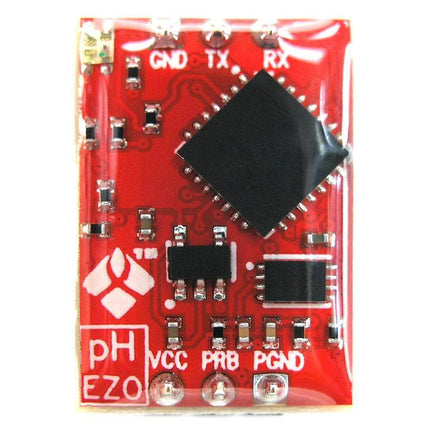

EZO™ pH Circuit Datasheet
Half Cell SMA Breakout Board Tech Specs
RoHS Certificate
CE Certificate





      Micro pH Kit - Atlas Scientific

      Product form

      SKU: KIT-104P

      $519.00 $489.00 Excl. GST

      $489.00
      Product available in stock.

        • We ship from our stock in AU (Perth), pickup by prior booking
        • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
        • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
