Micro pH Probe - Atlas Scientific

Description

Micro pH Probe - Atlas Scientific

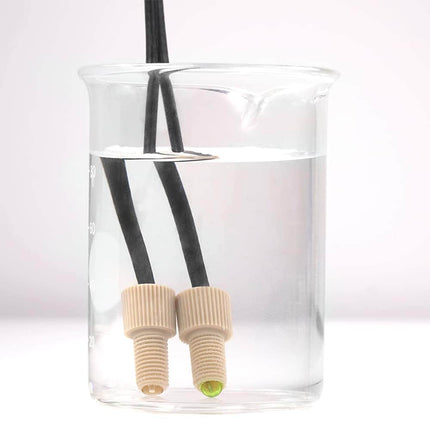

This pH Probe can be fully submerged in freshwater or saltwater, up to the SMA connector indefinitely.

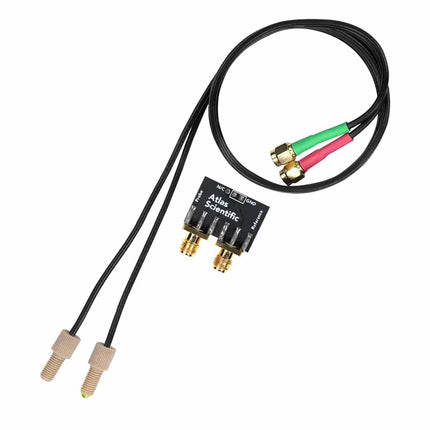

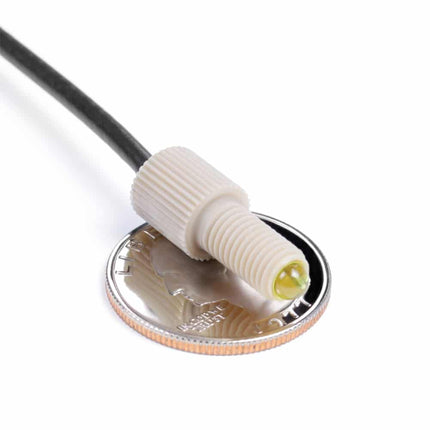

 The Atlas Scientific Micro-pH Probe was designed for microfluidics and other small applications. Because the probe is so small, it had to be built as a half cell pH probe. A ½ cell probe works just like a normal pH probe, but it consists of two separate pieces, the working electrode and the reference electrode. The supplied connector board merges the two halves into one, just like a normal pH probe.

Specifications:

  • 1 Micro pH Probe
  • 1 Micro Reference Probe

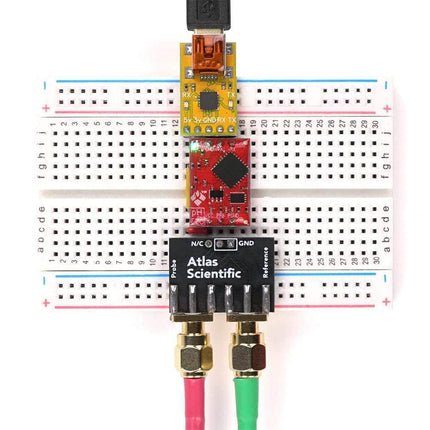

  • 1 Half Cell SMA Breakout Board
  • Reads: pH
  • Range: 0 − 14
  • Resolution: +/- 0.001
  • Accuracy: +/- 0.002
  • Response time: 95% in 1s
  • Temperature range: °C -5 − 90 °C
  • Max pressure: 150 PSI
  • Max depth: 60m (197 ft)

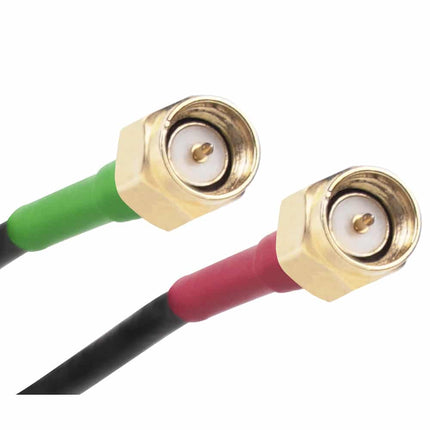

  • Connector: Male SMA

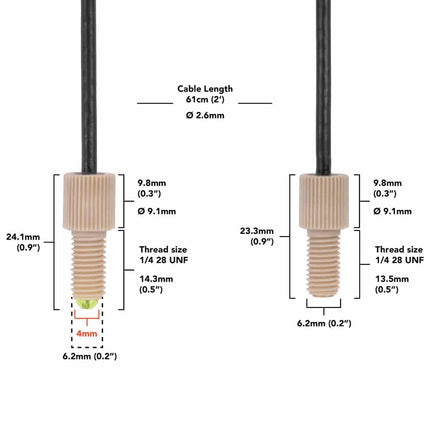

  • Cable length: 61cm (2′)
  • Internal temperature sensor: No
  • Time before recalibration: ~1 month
  • Life expectancy: ~6 − 12 months

Downloads


      Micro pH Probe - Atlas Scientific

      Product form

      SKU: ENV-10-pH

      $399.00 $299.00 Excl. GST

      $299.00
      Product available in stock.
