Mikromedia for PIC32 - MikroElektronika Smart TFT Color Touch Display

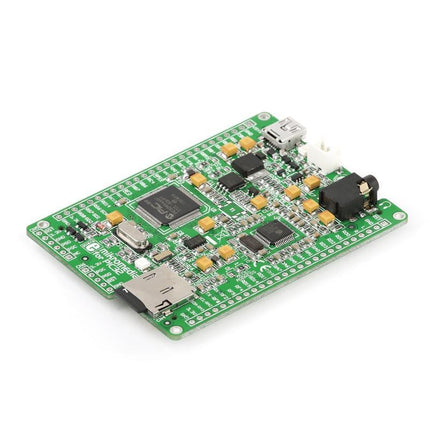

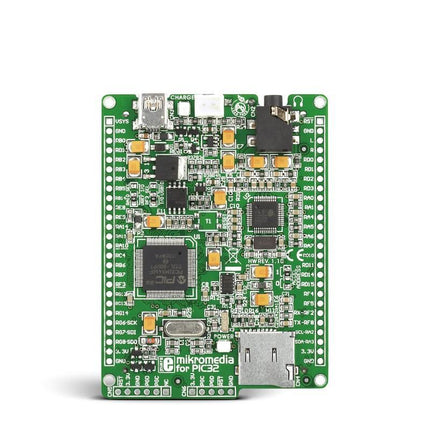

Start building your first applications with intuitive, user-friendly menus and dashboards using PIC32MX microcontroller. This board provides a compact high-quality multimedia development platform for PIC32MX460F512L device.

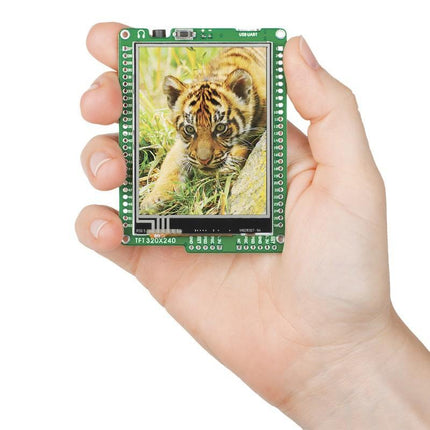

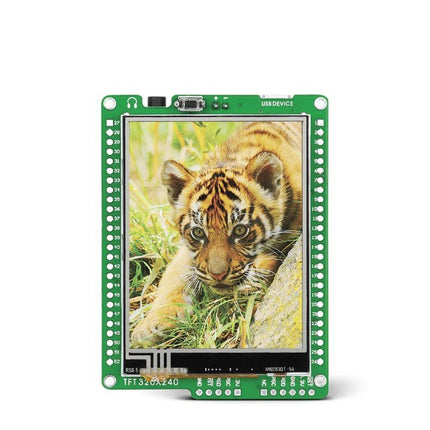

Highlights. Large 320x240 TFT Color Display with Touch Screen and Stereo MP3 Codec chip with great performance give you true power to build GUI-centric embedded devices. Charge your batteries directly from USB port. No additional electronics, or expensive adapters. You can save pictures, sounds and other media files on microSD memory card and 8Mbit Serial Flash Memory and use it in your application. On-board ADXL345 Digital Accelerometer allows you to measure acceleration.
Programming. On-board PIC18FJ is preprogrammed with fast USB HID bootloader, so it’s ready to work right out of the box. You don’t have to spend a dollar more on programmers. For those who need it, board can also be programmed and debugged using the external mikroProg programmer.
Compilers. mikromedia for PIC32 is fully supported by mikroC, mikroBasic and mikroPascal compilers for PIC32. Compilers come with dozens of examples that demostrate every feature of the board.
GUI design with Visual TFT. Easily create fantastic colourful graphical user interfaces (GUI) for mikromedia in VisualTFT software. Even total beginners will be able to create amazing applications.
Specifications
| Applications |
Best used as a development board but also as a final product. Use cases include industrial, medical, automotive and other dashboards and equipment. |
| Displays |
TFT full-color |
| Display size |
2.8" |
| Resolution |
320x240px |
| Graphic controller |
ILI9341 |
| Touch Screen |
Resistive |
| Architecture |
PIC32 (32-bit) |
| MCU |
PIC32MX460F512L |
| MCU speed |
80 MHz |
| MCU Memory |
512 KB of Flash, 32 KB of RAM |
| Programming |
Preprogrammed with fast USB HID bootloader. Also features mikroProg for PIC, dsPIC and PIC32 connector. |
| Storage |
8 Mbit Serial Flash, microSD card slot |
| Sound and Audio |
VS1053 MPEG audio decoder |
| Peripherals include |
USB connector, Accelerometer, Battery Charger |
| Expandability |
Two 1x26 headers, mikromedia standard pinout |
| Integration |
Mounting holes |
| Input Voltage |
5V (via USB) |
