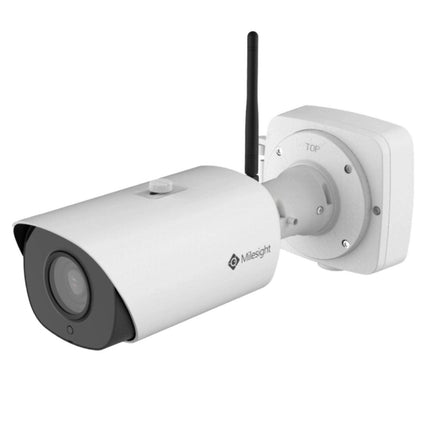

Milesight AIoT Camera 2MP 12X Pro Bullet Plus Built-in LoRaWAN Gateway

Description



Milesight AIoT Camera 2MP 12X Pro Bullet Plus Network Camera with Built-in LoRaWAN Gateway

Milesight 2MP AIoT 12X Camera with built-in LoRaWAN gateway is more than just a network camera that can deliver video streams, the camera can communicate with and ingest data from IoT sensors, as well as visualize various data. Utilizing AI deep learning, it can give real-time analyses and alerts via numerous alarm actions. An entirely new set of capabilities emerges with Milesight AIoT Camera, which uses AI as a brain and IoT as sensory organs.

The camera uses latest Semtech LoRa Chip and a 64-bit quad-core CPU to support receiving data from up to 8 end-devices at the same time, handles more traffic with less power consumption, and has a line of sight of around 15km in open area, making it ideal for a variety of applications.

The camera is able to communicate with end-devices that use the Standard LoRaWAN® Protocol and send encrypted data. A global LoRaWAN® Frequency Plan is supported to accommodate varied regional requirements, including AU915/US915/KR920/AS923.

The built-in LoRaWAN® Network Server allows packets to be transmitted locally between the gateway and network server, removing the need of a third-party network server and improving interoperability while also reducing data traffic. It also supports MQTT, HTTP, and HTTPS APIs for easy integration.

Features:

  • ONVIF Profile G & Q & S & T, API Compatible
  • Supports 802.3at PoE
  • Supports H.265+/H.265/H.264+/H.264
  • 1/1.8" STARVIS Starlight Sensor
  • AI
  • 120dB Super WDR
  • 0.002Lux Ultra Low-light
  • Heat Map
  • IP67
  • 180m IR Distance
  • Smart IR II
  • P2P
  • 60fps
  • Support MicroSD/SDHC/SDXC Card Local Storage, up to 256G
  • Receiving Data from 8 End-Devices simultaneously

Specifications:

Product Code MS-C2966-X12ROPC
Product Name 2MP AIoT 12X Pro Bullet Plus Network Camera
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 140dB Super WDR (Super WDR Pro is optional for T Series)
Lens 5.3~64mm, 12X Optical Zoom
Field of View H61°~H5°/D69°~D5°/V36°~V2°
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 180m
S/N >55dB
Max. Image Resolution 1920x1080
Frame Rate 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
Region Of Interest Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Interfaces 1*RJ45 10M/100M Ethernet Port
Antenna 1*50OSMA-Female External Antenna Connector
Channel 8 channels simultaneously
Demodulation 1Mhz
Frequency Band CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Communication Range 15km
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Supported - Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection Detect and capture faces, get real-time snapshots
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
Working Condition Temperature: -40?~60? / Humidity: 0~90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 9W MAX, 15W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance (Only for camera body)
Dimensions/Weight 320mmX134mmX126mm, 320mmX134mmX292mm (With 5G Antennas) / 1700g



Milesight AIoT Camera Datasheet

Quick User Guide

Milesight Network Camera User Manual.pdf

Read more

Milesight AIoT Camera 2MP 12X Pro Bullet Plus Built-in LoRaWAN Gateway

Product form
Free pickup in our shop(s)

SKU: MS-C296 X12ROPC AIoT Camera

$1,099.00 $1,049.00 Excl. GST

$1,049.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
